Toyota Truck
>>
2008
>>
Landcruiser V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Tune-up and Engine Performance Checks
>>
Spark Plug
>>
Service and Repair
>>
Components
Components

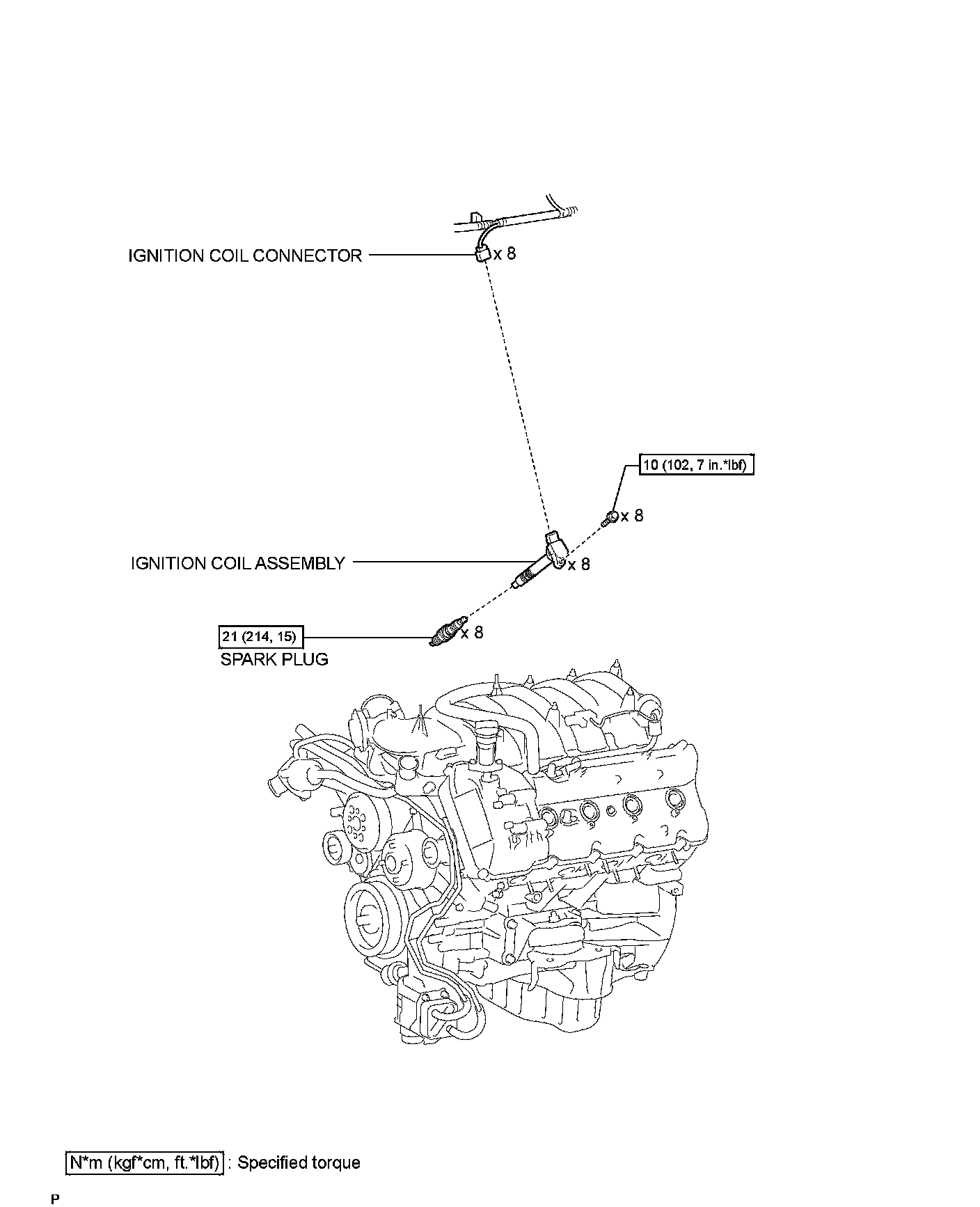

3UR-FE ENGINE CONTROL: IGNITION COIL AND
SPARK PLUG
: COMPONENTS
COMPONENTS
ILLUSTRATION
