Removal

3UR-FE EMISSION CONTROL: AIR PUMP: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

3. REMOVE FRONT FENDER LINER RH
(a) Remove the screw, and disconnect the liner from the front bumper cover.
(b) Using a T30 "TORX" socket, remove the 3 screws.
(c) Remove the 5 clips.
(d) Partially remove the fender liner.
HINT: It is not necessary to fully remove the fender liner. Partially remove it so that the air pump can be removed.

4. REMOVE FRONT FENDER APRON SEAL FRONT RH






(a) Remove the 3 bolts and screw.
(b) Turn the clip indicated by the arrow in the illustration to remove the fender splash shield.
5. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

6. REMOVE AIR CLEANER HOSE ASSEMBLY Removal

7. REMOVE AIR CLEANER ASSEMBLY Removal

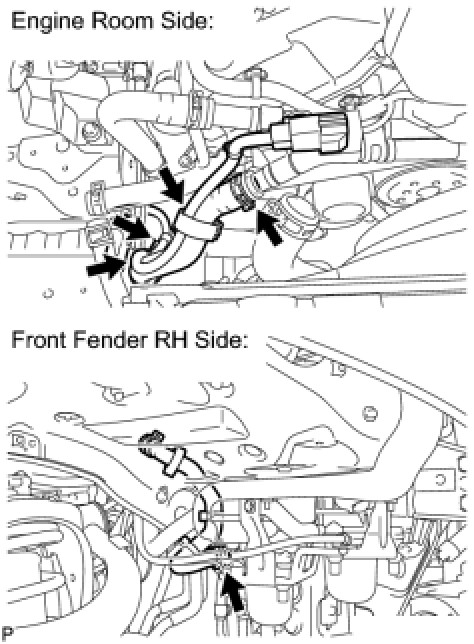

8. REMOVE NO. 2 AIR INJECTION SYSTEM HOSE






(a) Engine Room Side:
(1) Disconnect the 3 clamps.
(2) Disconnect the No. 2 hose.
(3) Using a clip remover, remove the clamp from the body panel.
(b) Front Fender RH Inside:
(1) Disconnect the No. 2 hose from the air pump.

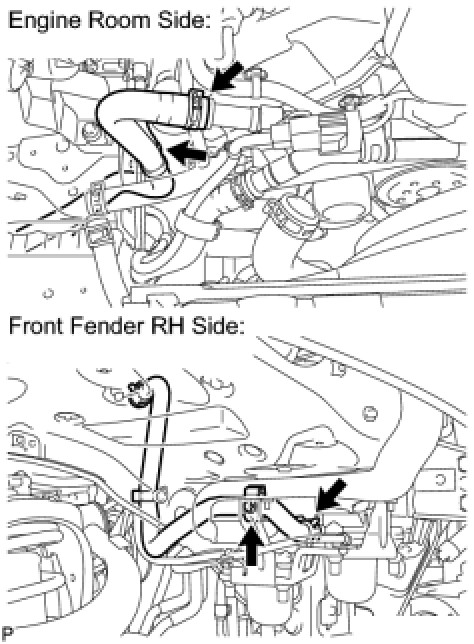

9. REMOVE NO. 3 AIR INJECTION SYSTEM HOSE






(a) Engine Room Side:
(1) Disconnect the clamp and No. 3 hose.
(2) Using a clip remover, remove the clamp from the body panel.
(b) Front Fender RH Inside:
(1) Disconnect the clamp and No. 3 hose from the air pump.
(2) Using a clip remover, remove the clamp from the bracket.

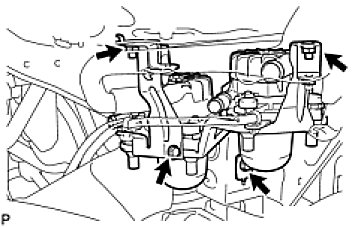

10. REMOVE AIR PUMP ASSEMBLY WITH BRACKET






(a) Disconnect the 2 air pump connectors and detach the 3 wire harness claws.






(b) Remove the 2 bolts, 2 nuts and air pump assembly with bracket.

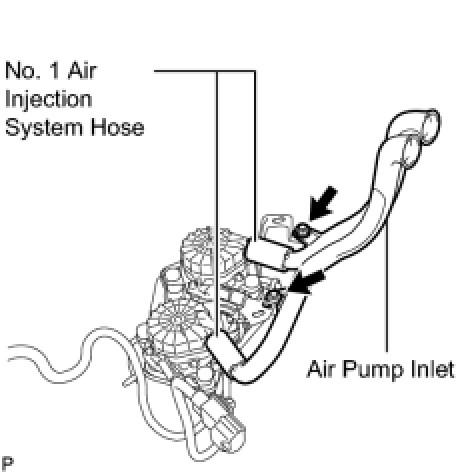

11. REMOVE AIR PUMP INLET






(a) Remove the 2 bolts and air pump inlet.
12. DISCONNECT NO. 1 AIR INJECTION SYSTEM HOSE
(a) Disconnect the 2 hoses.
13. REMOVE AIR PUMP ASSEMBLY






(a) Using a clip remover, detach the 2 clamps and remove the air pump from the bracket.
(b) Disconnect the 6 air pump insulators.
