Housing Assembly HVAC: Testing and Inspection

HEATING / AIR CONDITIONING: PTC HEATER ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT PTC HEATER ASSEMBLY

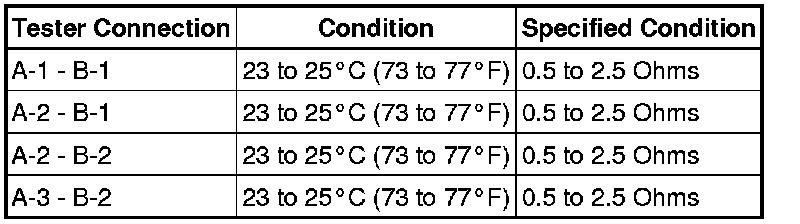

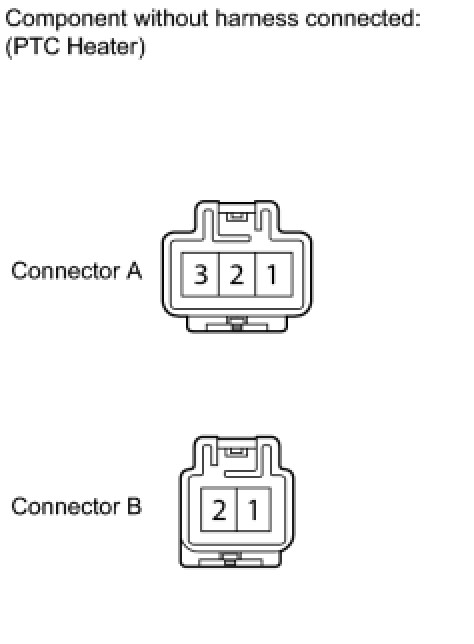

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the PTC heater assembly.
