Front Evaporator Temperature Sensor

HEATING / AIR CONDITIONING: FRONT EVAPORATOR TEMPERATURE SENSOR: INSPECTION

INSPECTION

1. INSPECT FRONT EVAPORATOR TEMPERATURE SENSOR

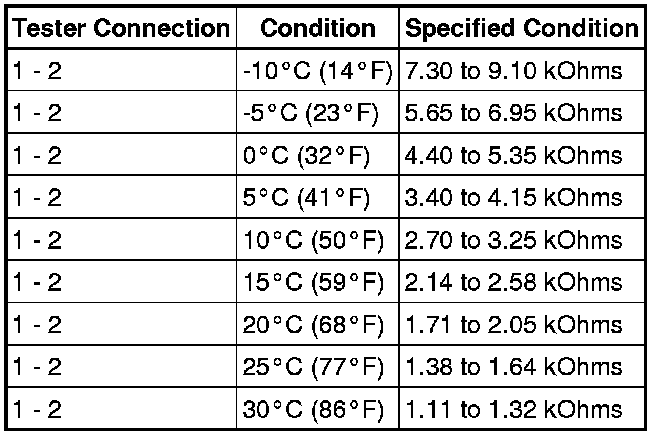

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the front evaporator temperature sensor.
- Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
- When measuring, the sensor temperature must be almost the same as the ambient temperature.

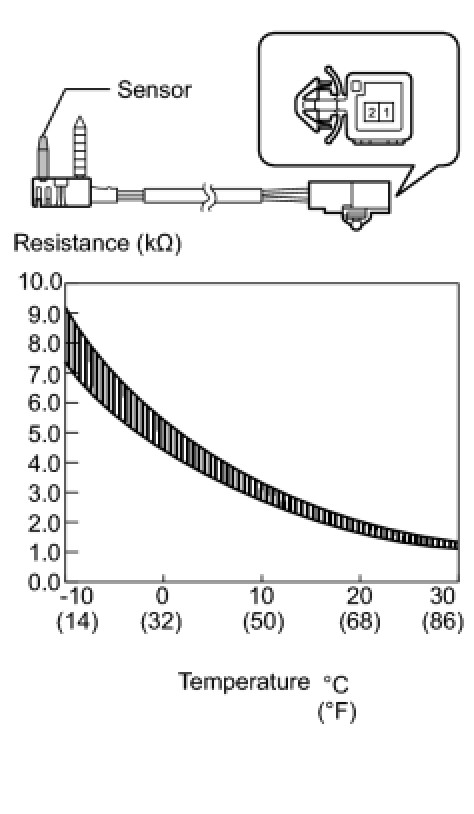

HINT: As the temperature increases, the resistance decreases (See the graph).
