Toyota Truck
>>
2008
>>
Landcruiser V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Condenser HVAC
>>
Service and Repair
>>
Components
Components

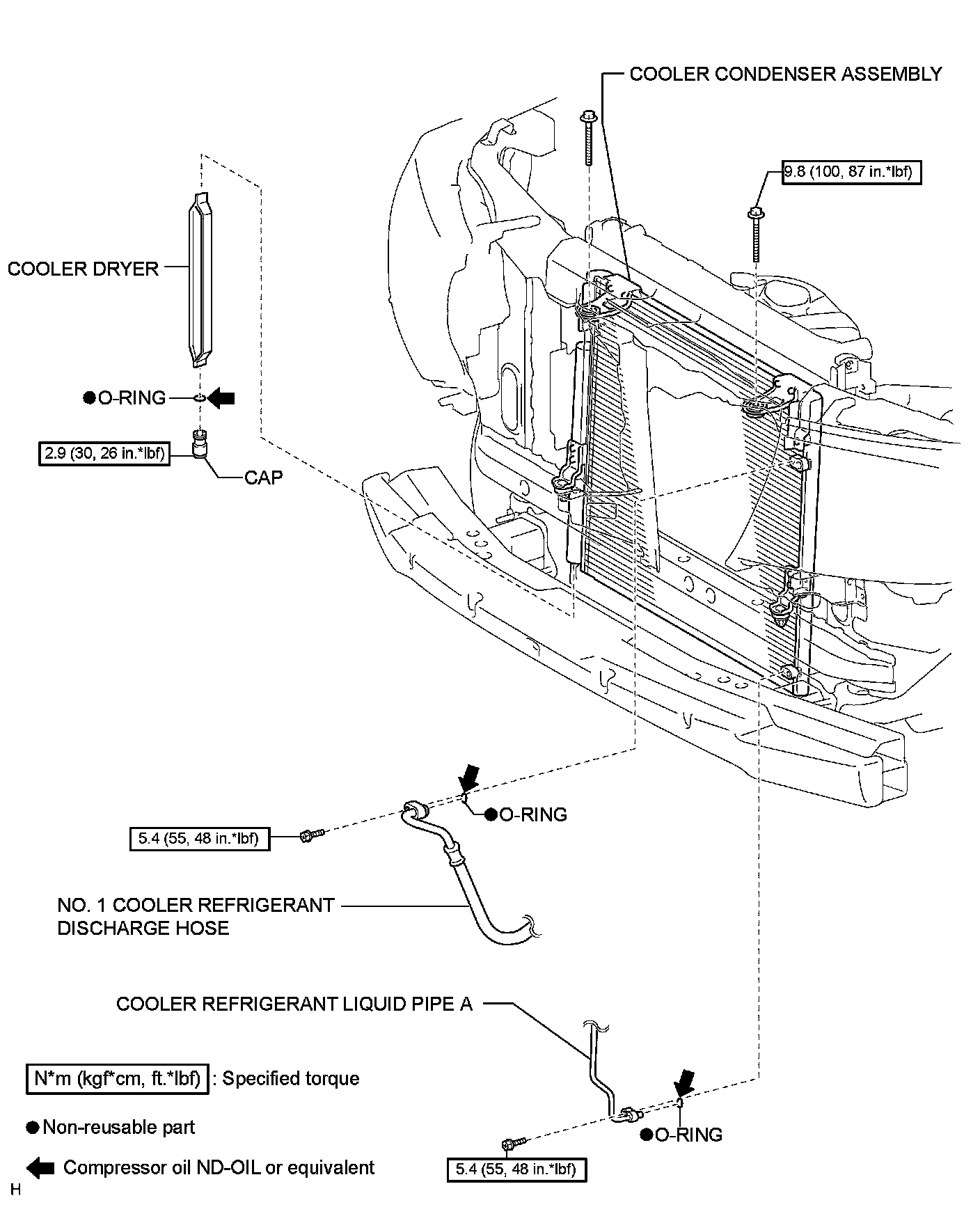

HEATING / AIR CONDITIONING: CONDENSER: COMPONENTS
COMPONENTS
ILLUSTRATION
