Toyota Truck
>>
2008
>>
Landcruiser V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Connector
Trailer Connector

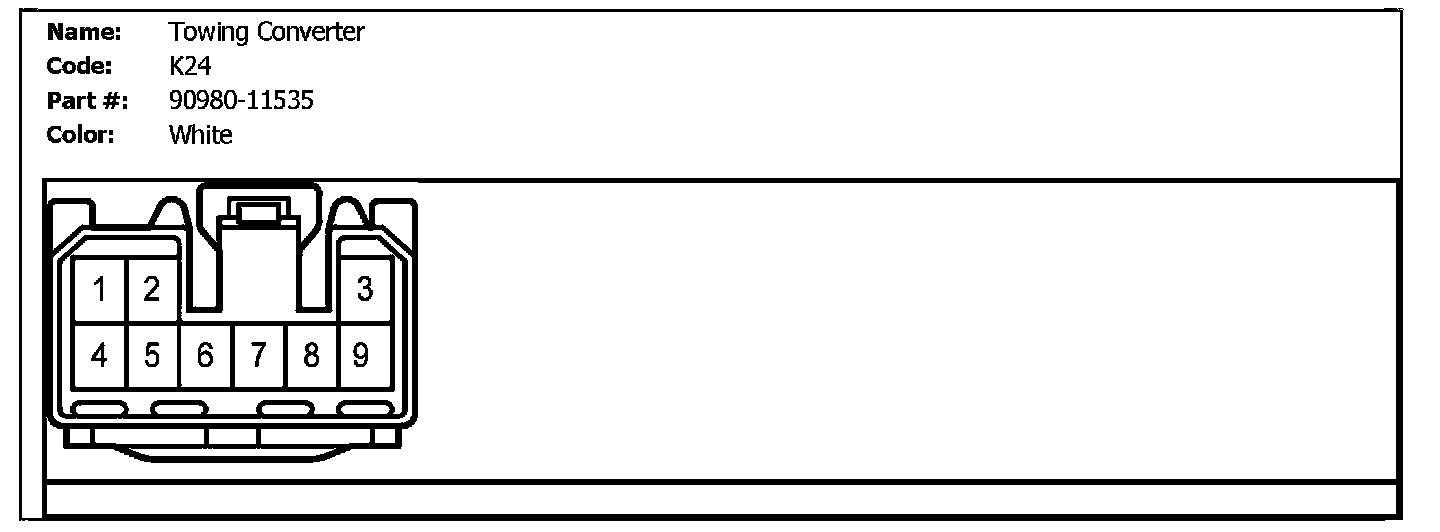

K24 (Towing Converter):

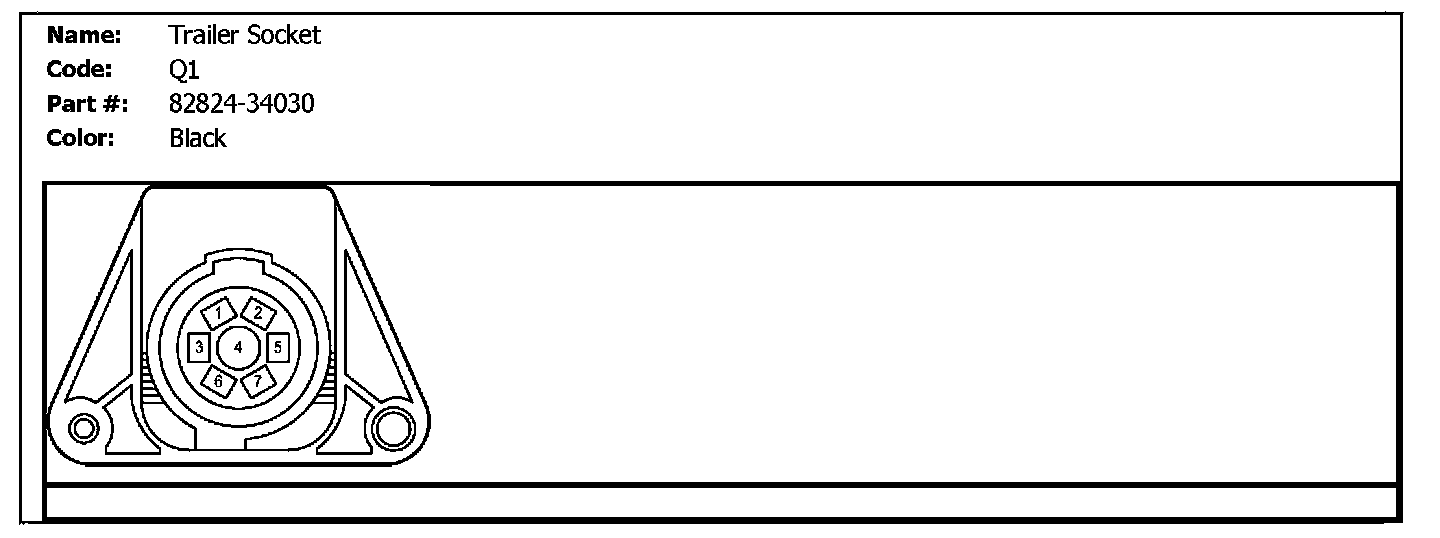

Q1 (Trailer Socket):
