Home
>>
Toyota Truck
>>
2008
>>
Landcruiser V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

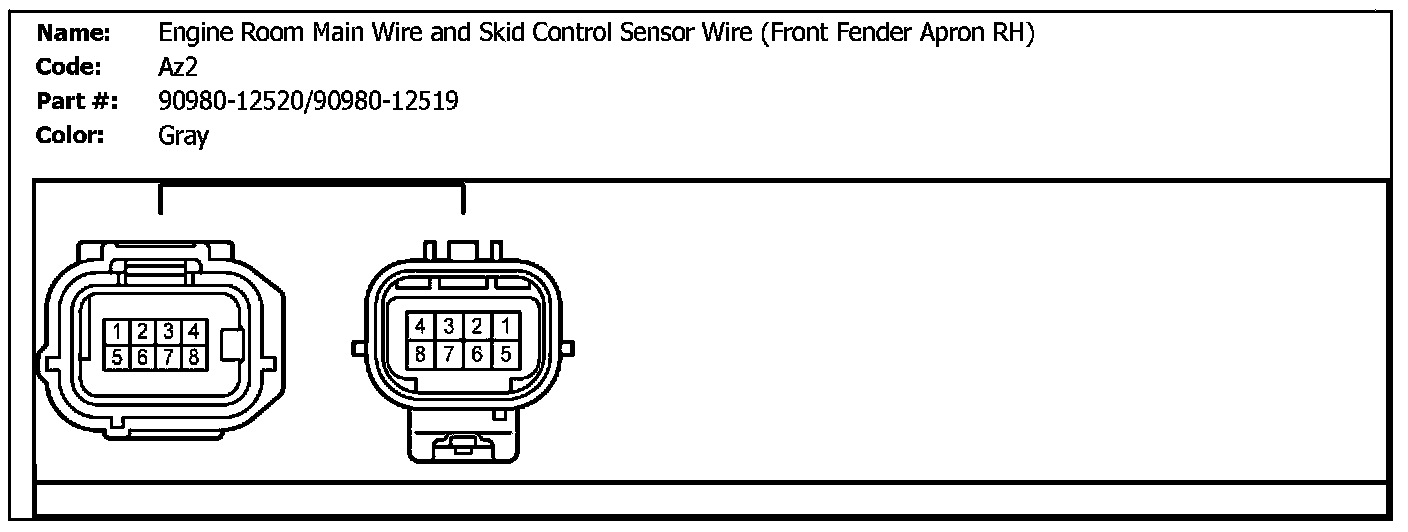

Az2 (Engine Room Main Wire And Skid Control Sensor Wire (Front Fender Apron RH))
Az2 (Engine Room Main Wire And Skid Control Sensor Wire (Front Fender Apron RH))
Az2 (Engine Room Main Wire And Skid Control Sensor Wire (Front Fender Apron RH)):
