BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: REAR SPEED SENSOR: INSTALLATION

INSTALLATION

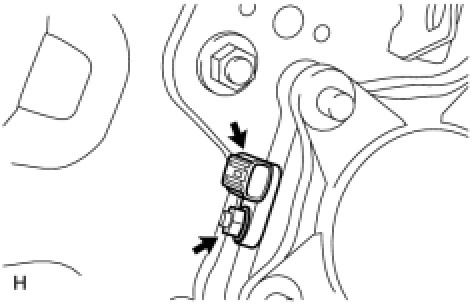

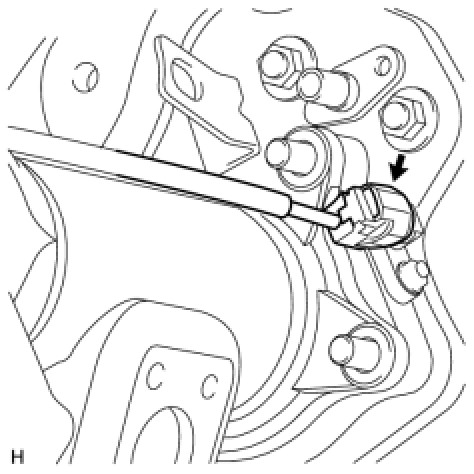

1. INSTALL REAR SPEED SENSOR LH

(a) Install the speed sensor with the nut.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)
- Make sure there are no pieces of iron or other foreign matter attached to the sensor tip.
- While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip.
- After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
- Make sure there is no foreign matter attached to the speed sensor rotor.

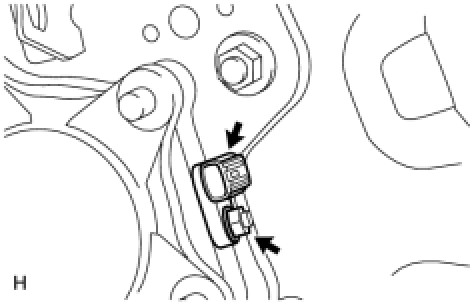

2. INSTALL REAR SPEED SENSOR RH

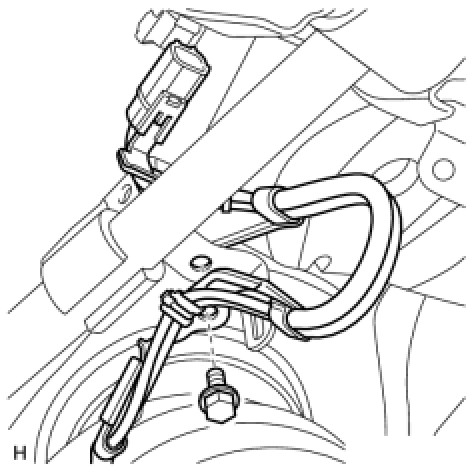

(a) Install the sensor clamp with the bolt.
Torque: 13 Nm (127 kgf-cm, 9 ft-lbf)
NOTE: Make sure the clamp rotation stopper touches the installation position.

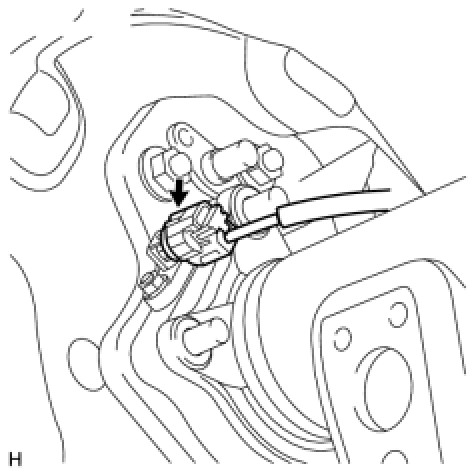

(b) Connect the connector.
NOTICE:
- Securely insert the connector.
- When connecting the connector, do not twist the wire harness.

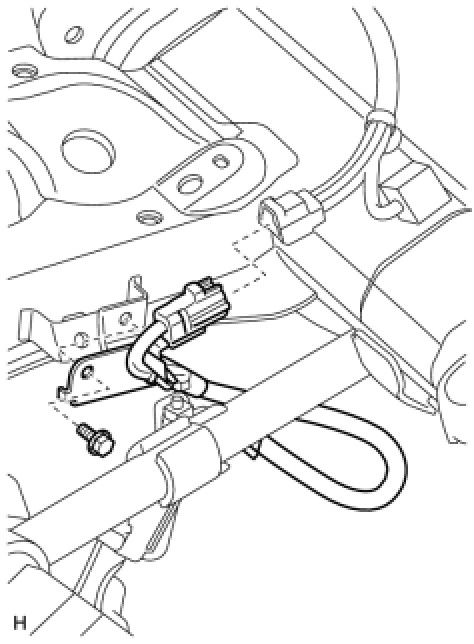

(c) Install the sensor clamp with the bolt.
Torque: 13 Nm (127 kgf-cm, 9 ft-lbf)
NOTE: Make sure the clamp rotation stopper touches the installation position.

(d) Connect the speed sensor RH connector.
- Securely connect the connector.
- When connecting the connector, do not twist the wire harness.

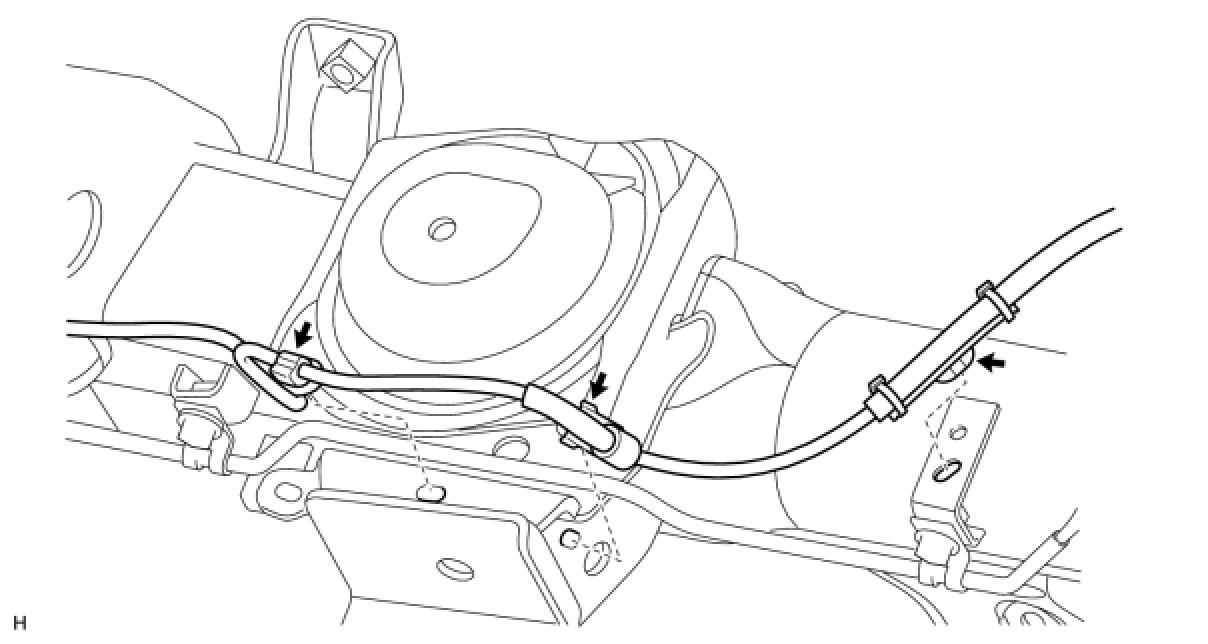

(e) Attach the 3 clamps.

NOTICE:
- When attaching the clamps, do not twist the wire harness.
- When attaching the clamps, securely insert them as shown in the illustration.

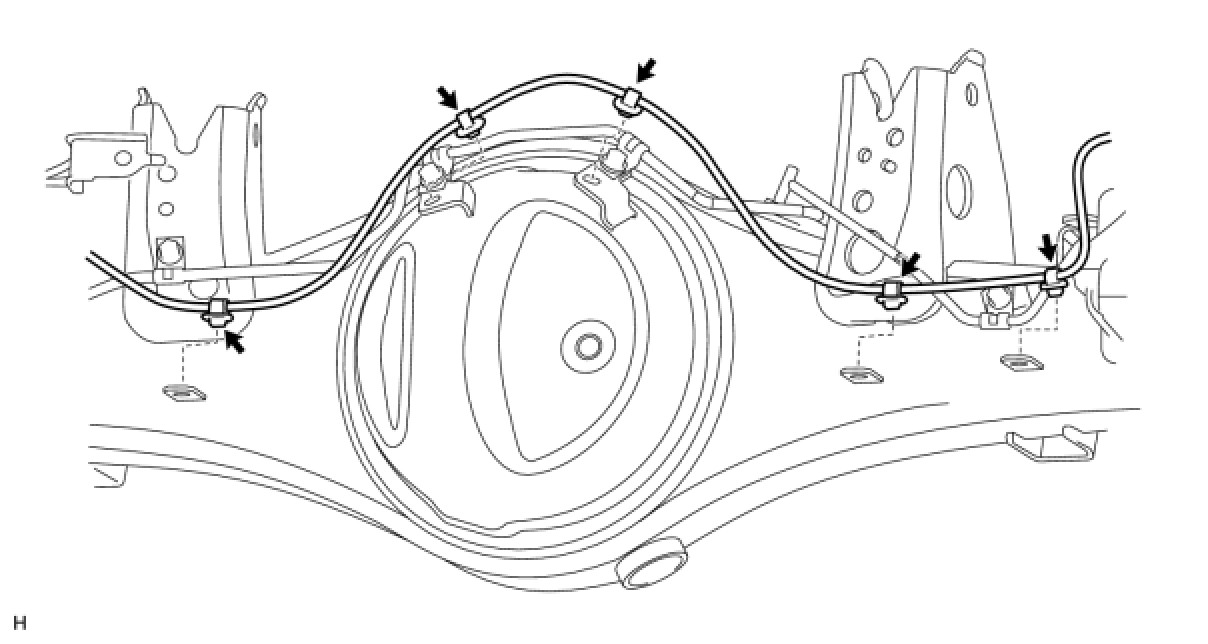

(f) Attach the 5 clamps.

NOTICE:
- When attaching the clamps, do not twist the wire harness.
- When attaching the clamps, securely insert them as shown in the illustration.

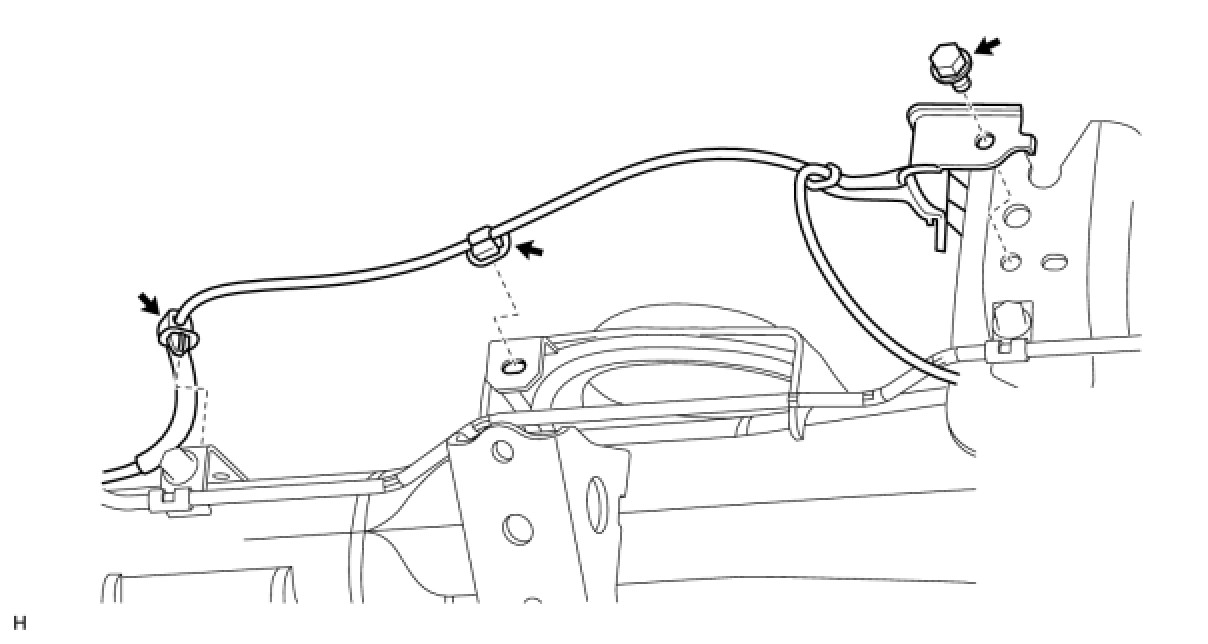

(g) Attach the 2 clamps, and install the sensor clamp with the bolt.
Torque: 13 Nm (127 kgf-cm, 9 ft-lbf)

(h) Connect the speed sensor LH connector.
- Securely connect the connector.
- When connecting the connector, do not twist the wire harness.

4. INSTALL REAR WHEEL
Torque: 131 Nm (1336 kgf-cm, 97 ft-lbf)
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. CHECK SPEED SENSOR SIGNAL
(a) Check the speed sensor signal Test Mode Procedure.
