Seat Temperature Switch: Testing and Inspection

SEAT: SEAT HEATER SWITCH (for Front Side): INSPECTION

INSPECTION





1. INSPECT SEAT HEATER SWITCH

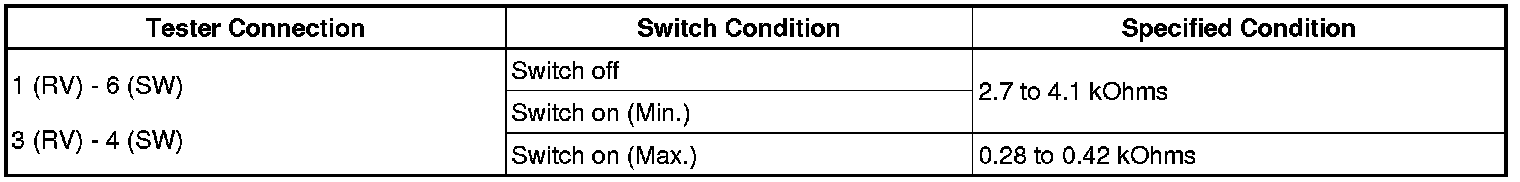

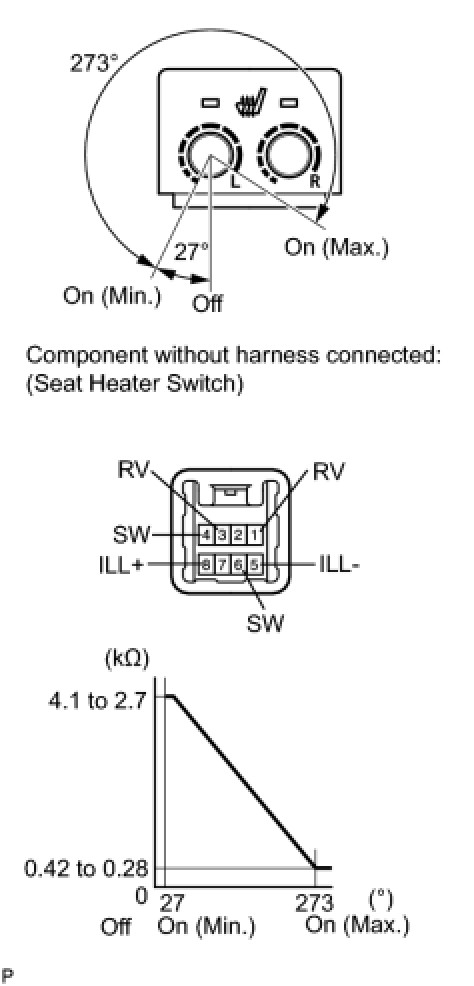

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





HINT: As the dial is being turned, the resistance changes gradually.
If the result is not as specified, replace the seat heater switch.

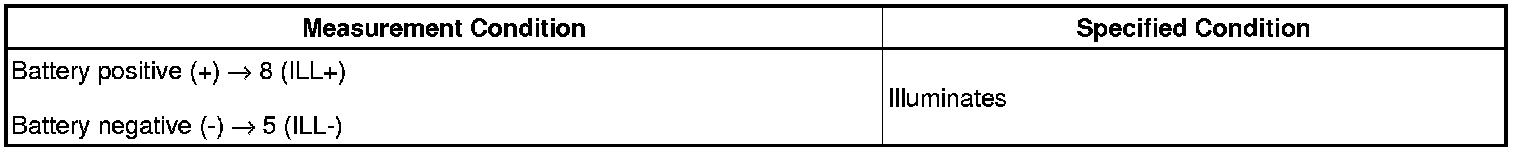

(b) Apply battery voltage to the switch connector, and check that the seat heater switch illuminates.
OK:





If the result is not as specified, replace the seat heater switch.
