SEAT: SEAT HEATER SWITCH (for Front Side): INSTALLATION

INSTALLATION





1. INSTALL SEAT HEATER SWITCH
(a) Attach the 2 claws to install the heater switch.
2. INSTALL SUSPENSION CONTROL SWITCH

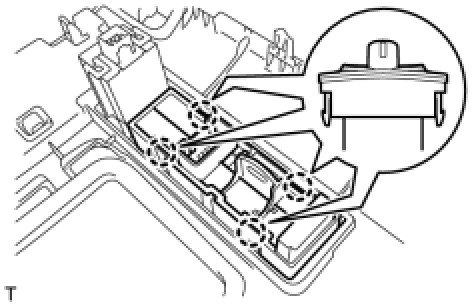

(a) Attach the 4 claws to install the control switch.

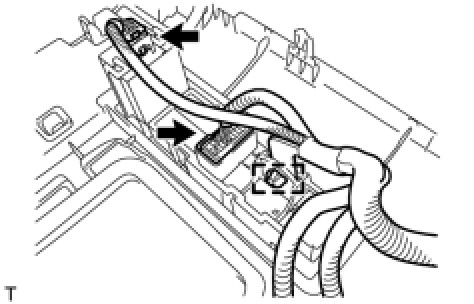

(b) Connect the 2 connectors.
(c) Attach the wire harness clamp.
3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

4. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Installation

5. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

6. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

8. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Installation

9. INSTALL NO. 1 INSTRUMENT PANEL FINISH CUSHION Installation

10. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

11. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION Installation
