Components

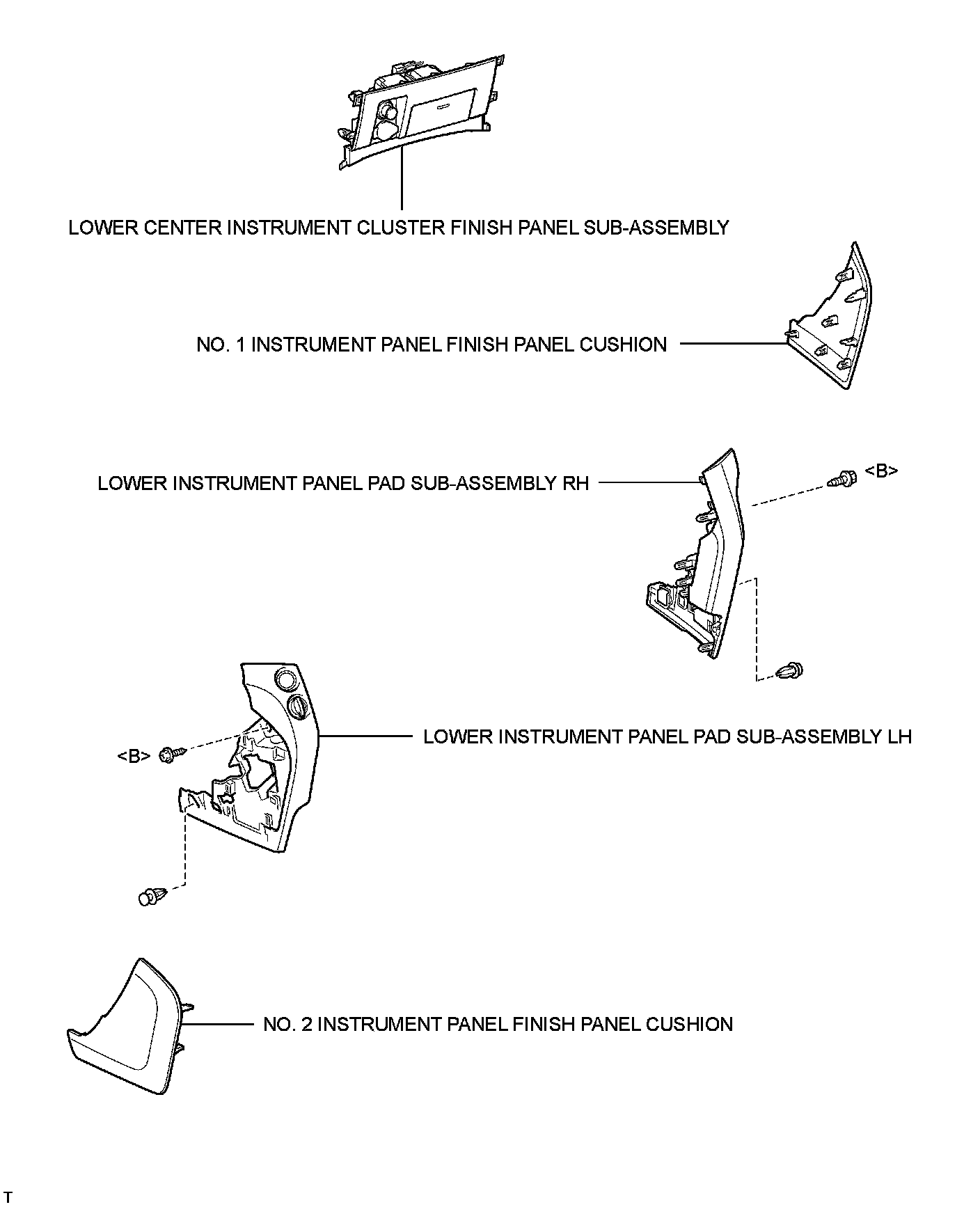

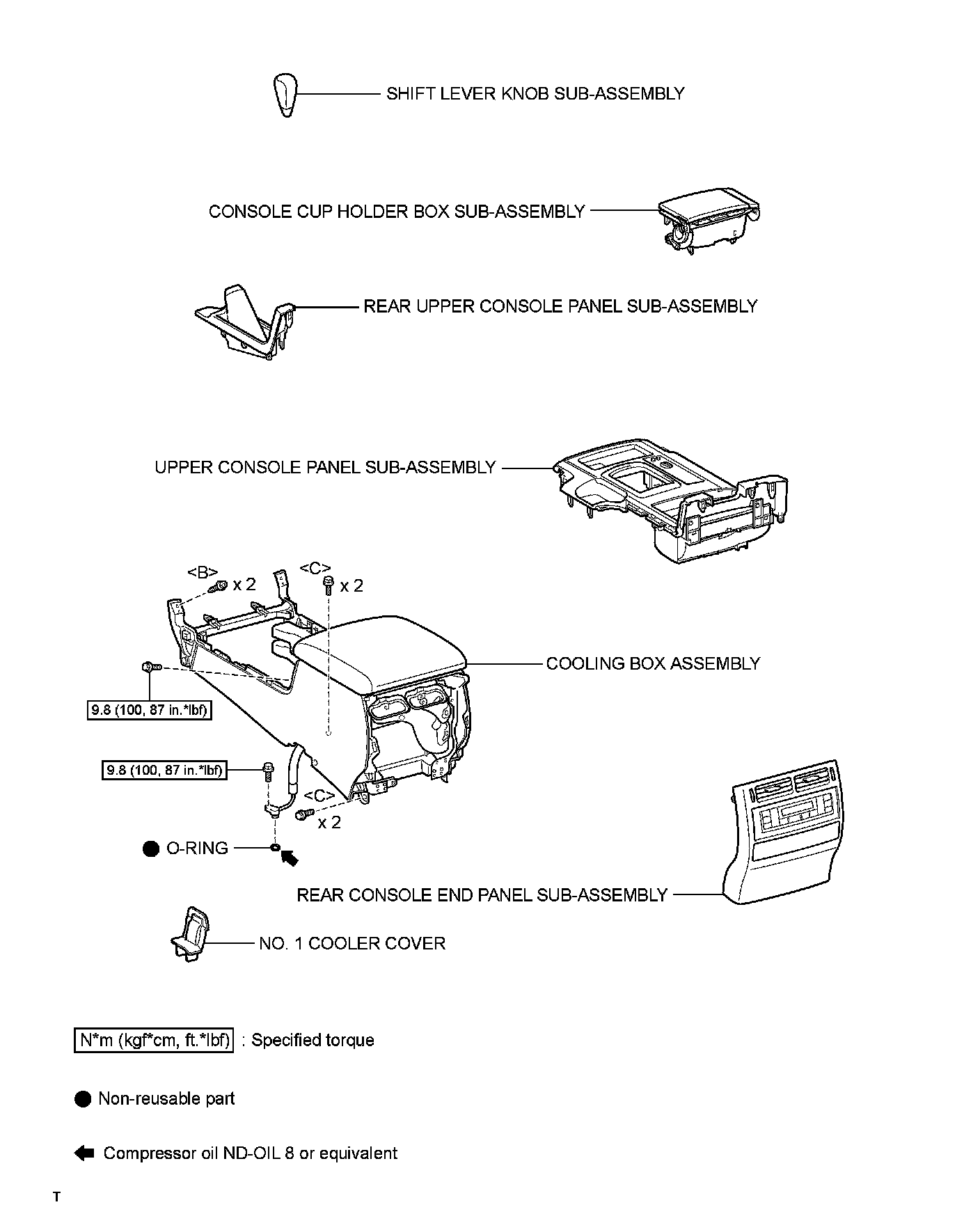

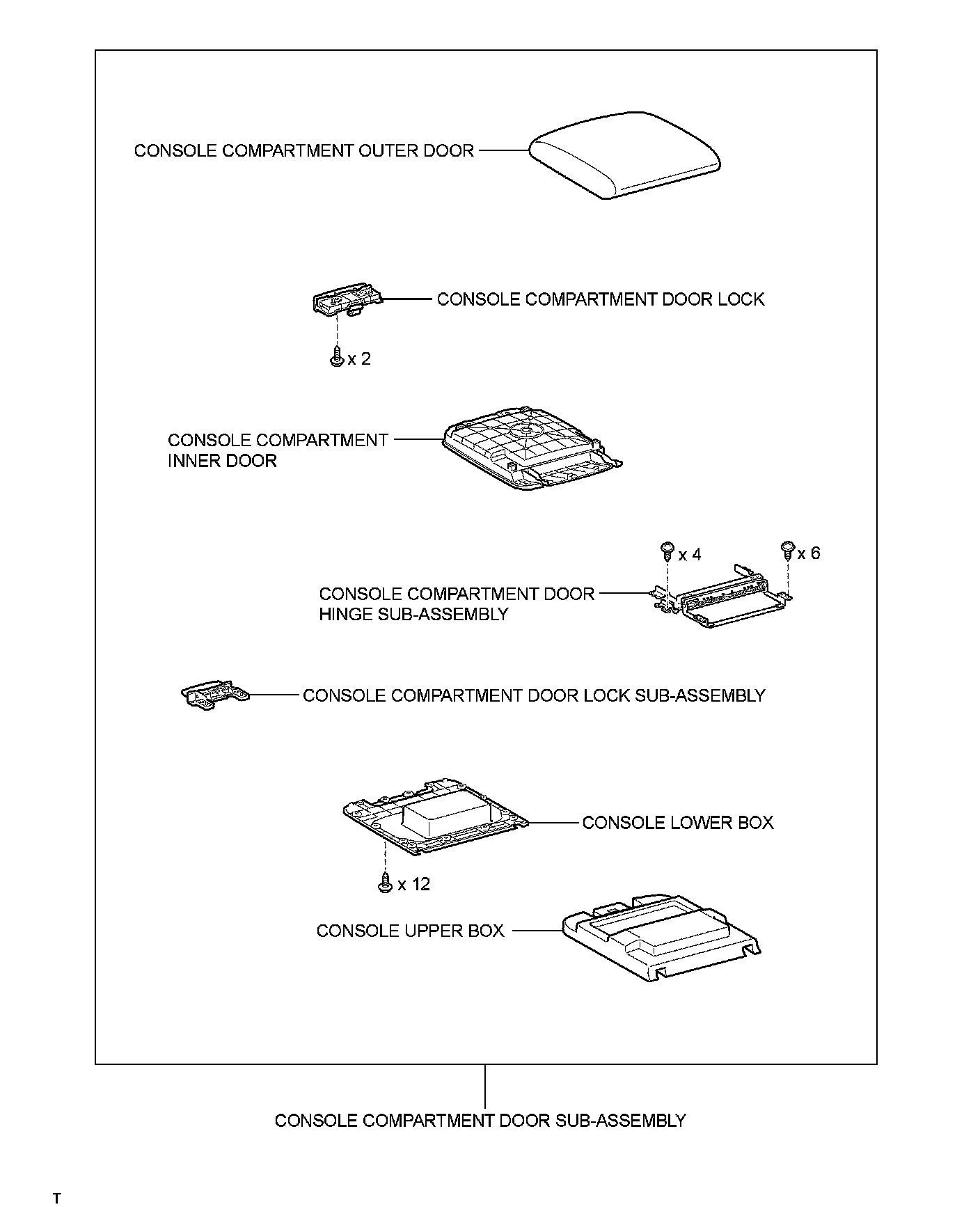

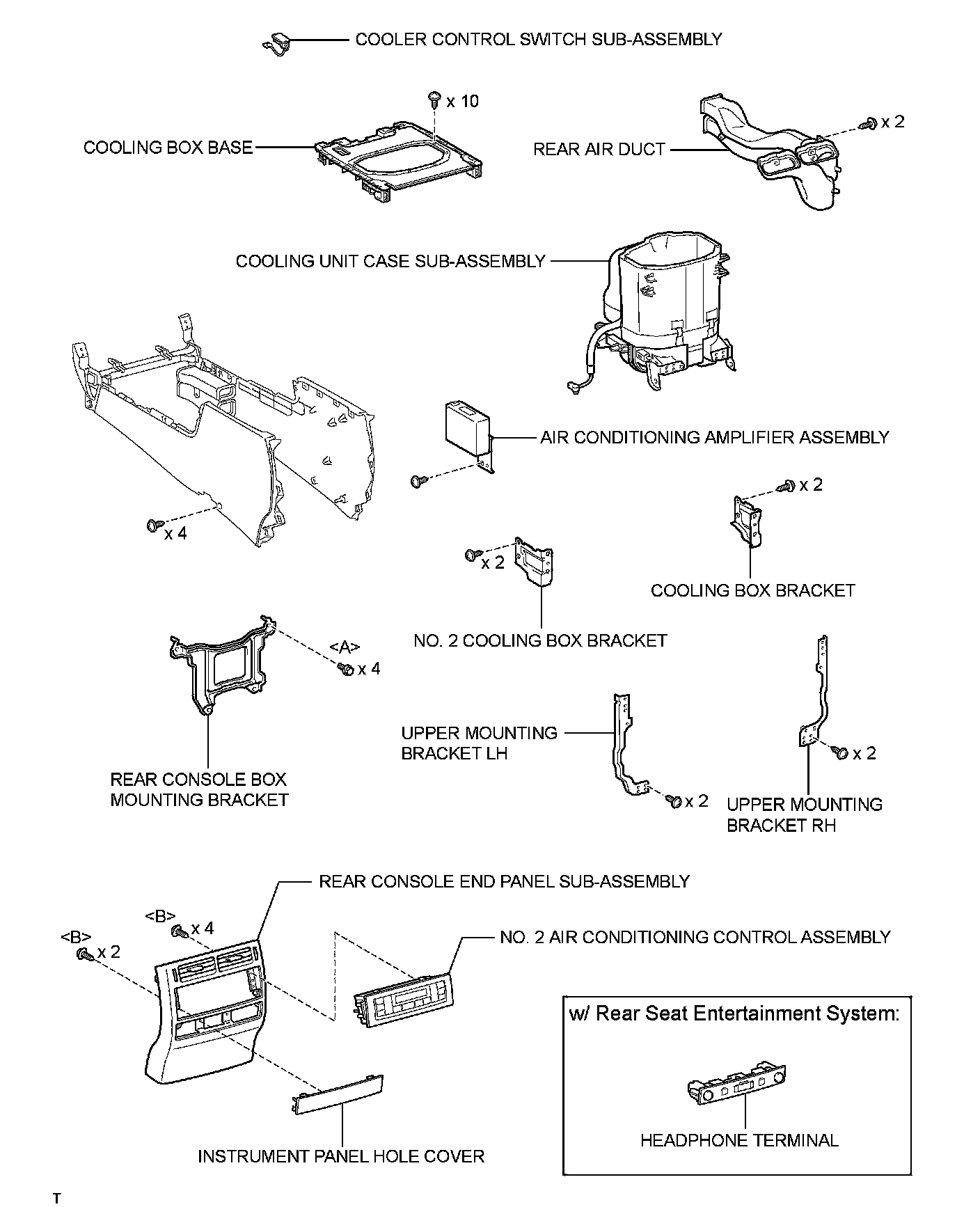

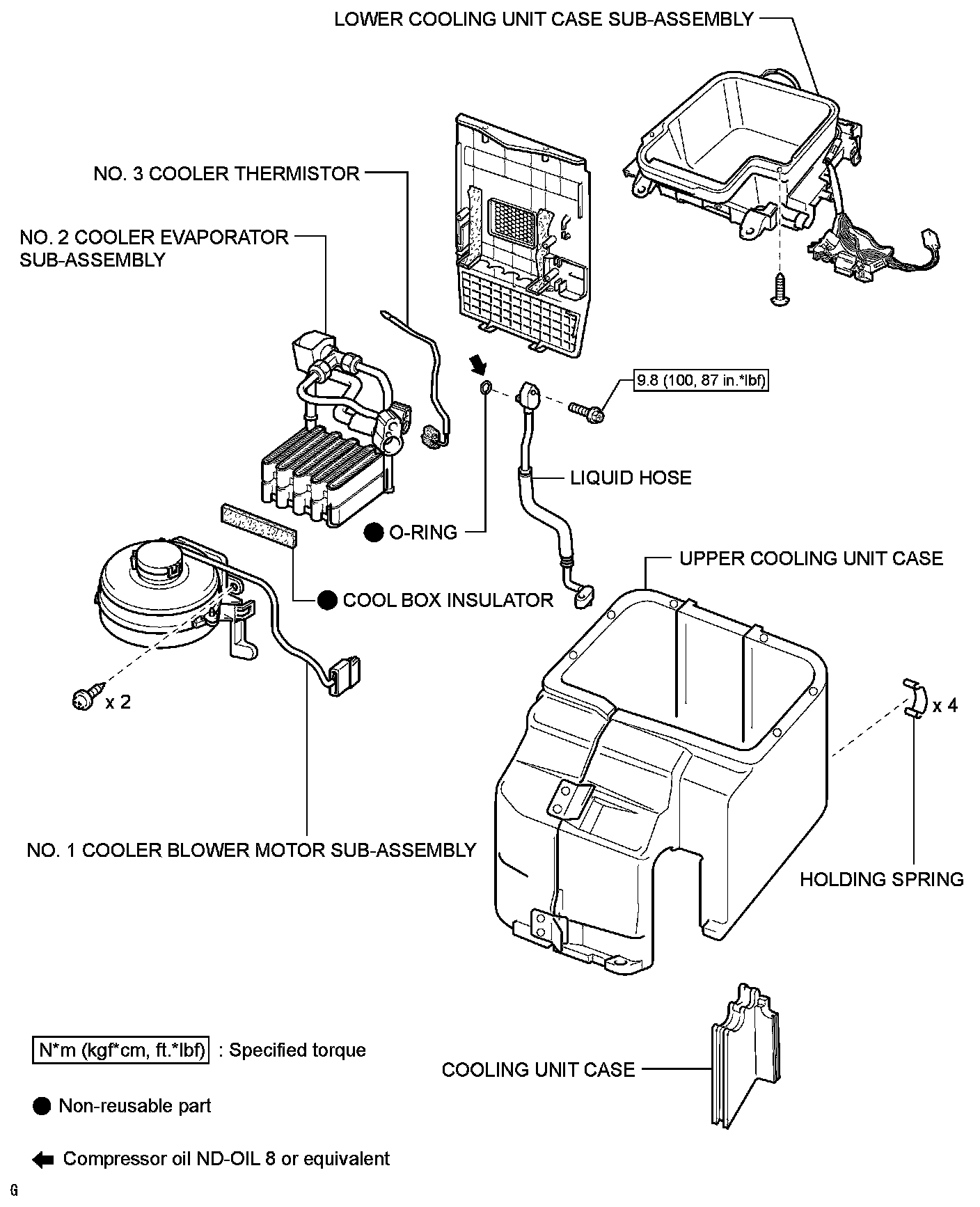

INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/ Cool Box): COMPONENTS

COMPONENTS

ILLUSTRATION
