Toyota Truck
>>
2008
>>
Landcruiser V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Service and Repair
>>
Components
Components

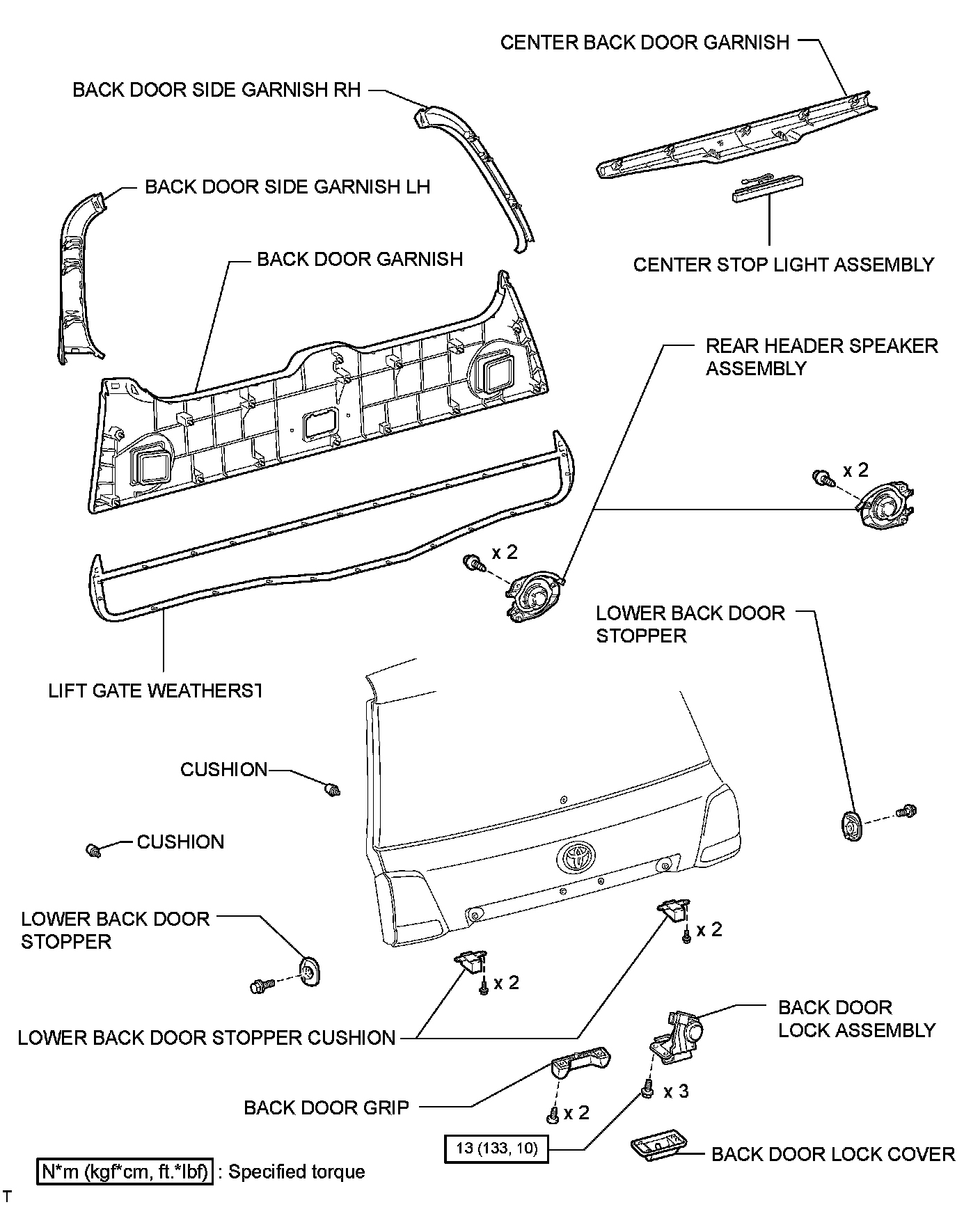

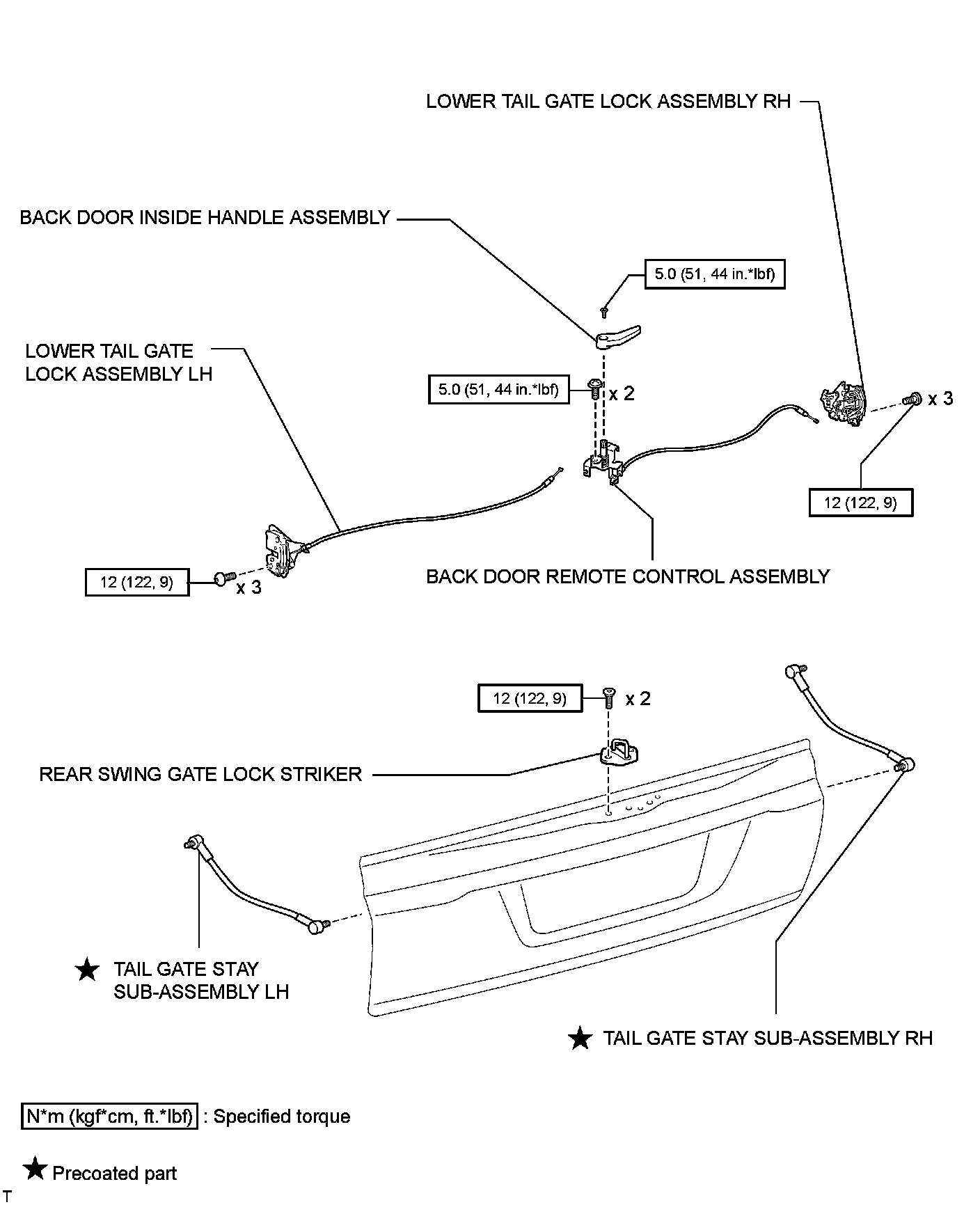

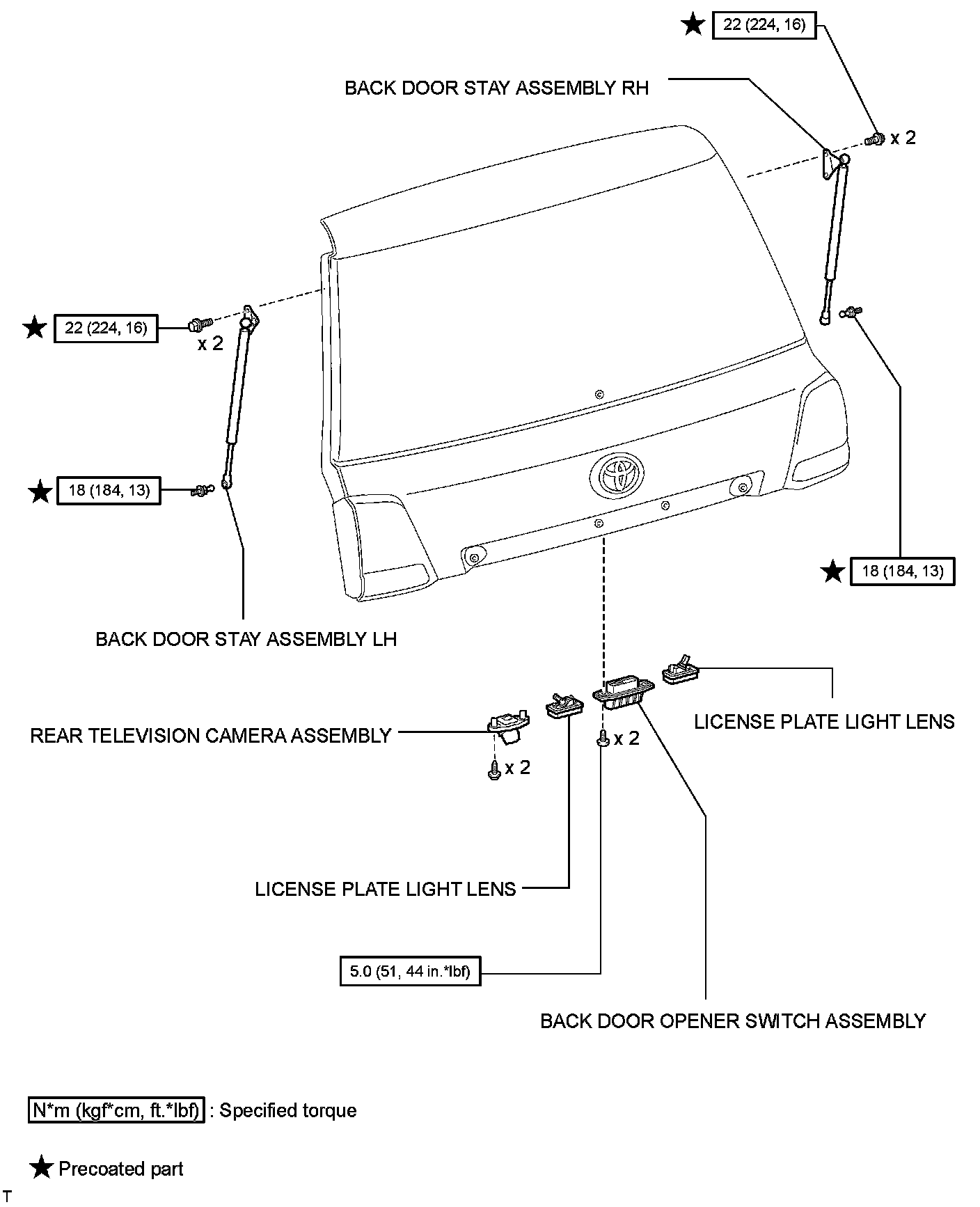

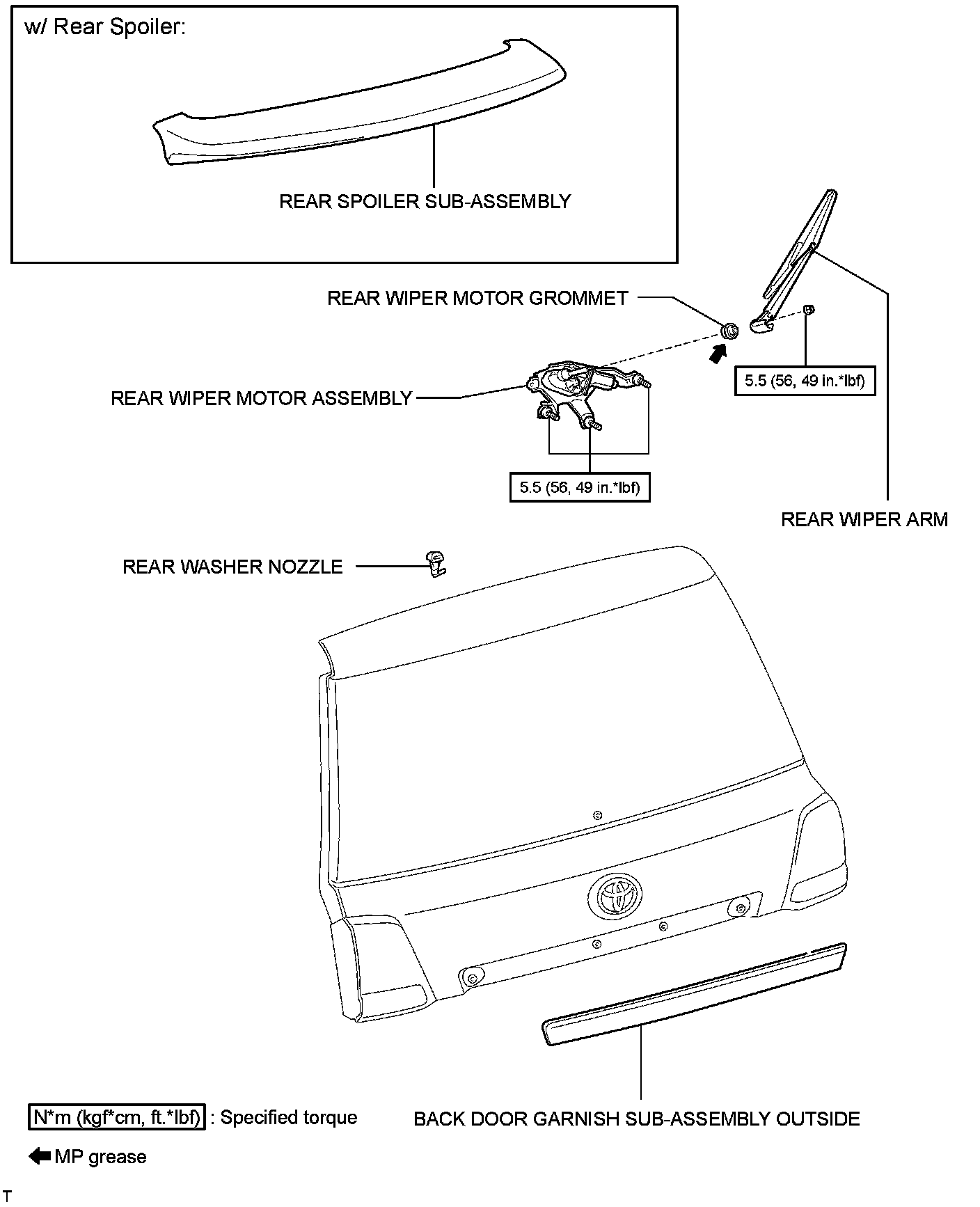

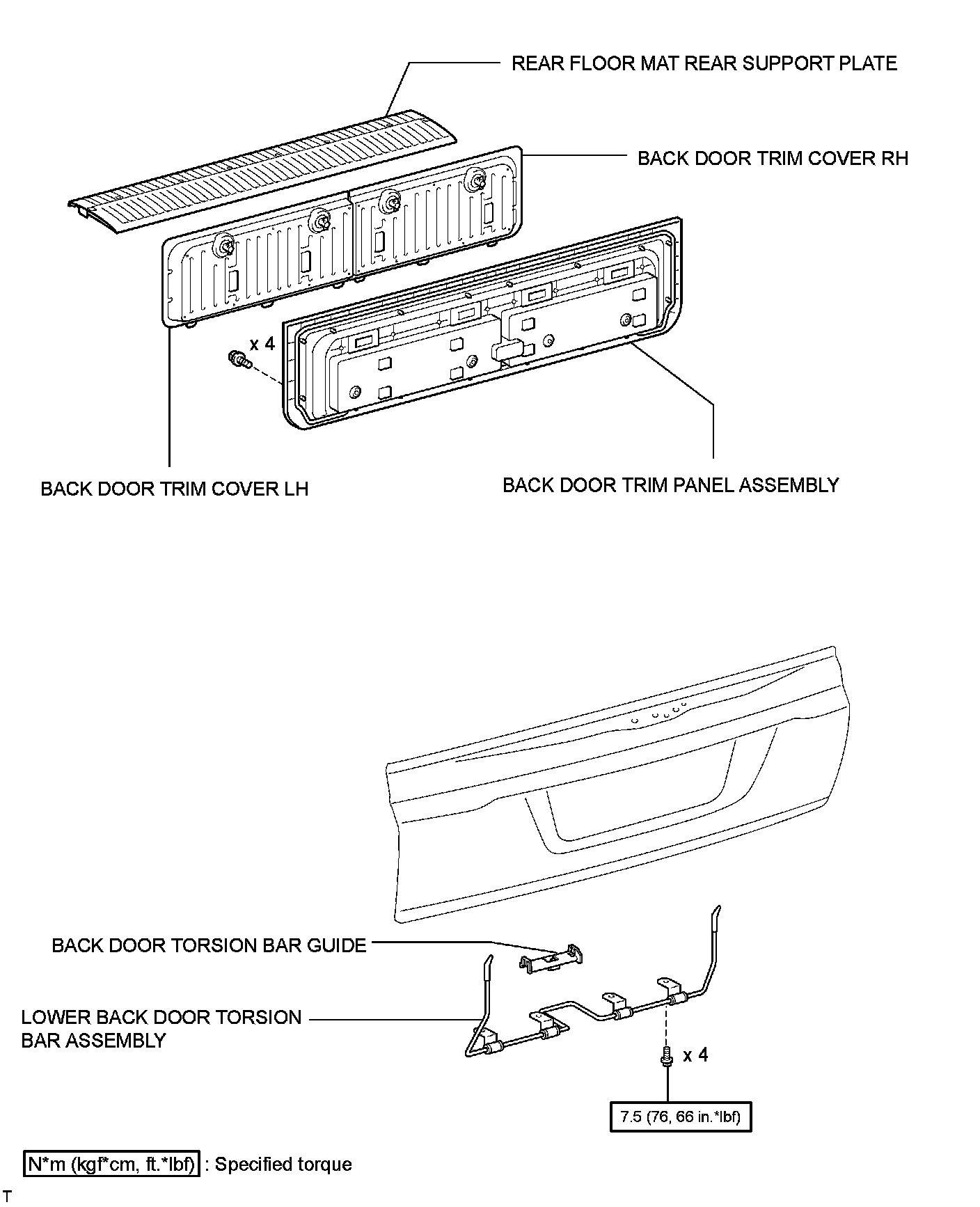

DOOR / HATCH: BACK DOOR: COMPONENTS
COMPONENTS
ILLUSTRATION
