Instruments - Initial Compass Calibration Procedure

PRE-DELIVERY SERVICE
PD015-07

Title:
INITIAL CALIBRATION OF COMPASS
DURING PDS

Models:
'08 Highlander

April 20, 2007

Introduction





In order for the compass to correctly indicate the direction that the vehicle is heading, it must be calibrated prior to vehicle delivery. Use the following procedure to perform initial calibration during Pre-Delivery Service (PDS).

Applicable Vehicles

^ 2008 model year Highlander vehicles.

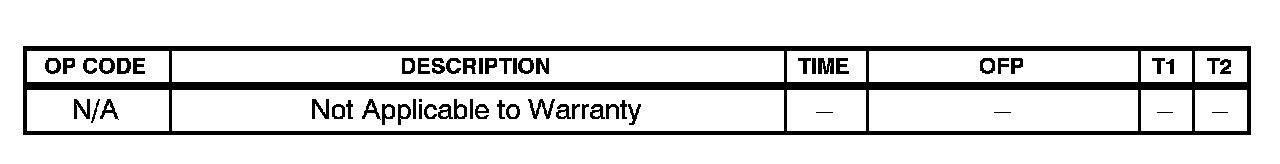

Warranty Information









Compass Calibration Procedure

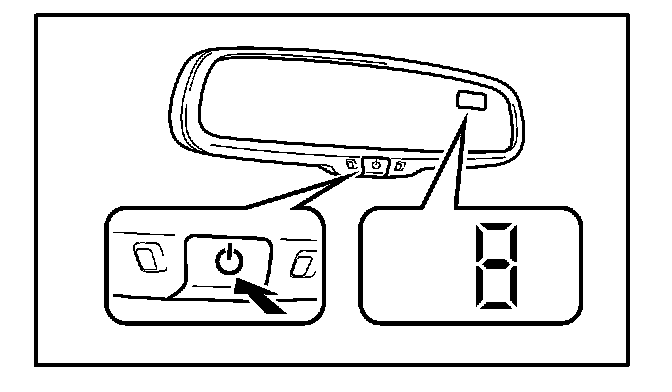

1. Turn the ignition switch to the "IG-ON" position and push and hold the switch for 6 seconds until the zone number appears on the compass display.

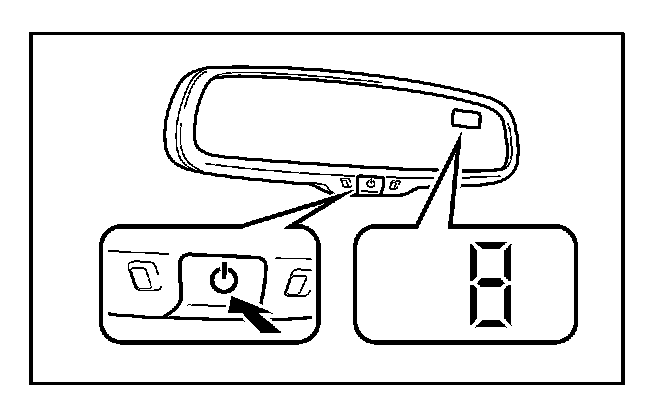

2. Push the switch to select the number of the zone where the vehicle is located.

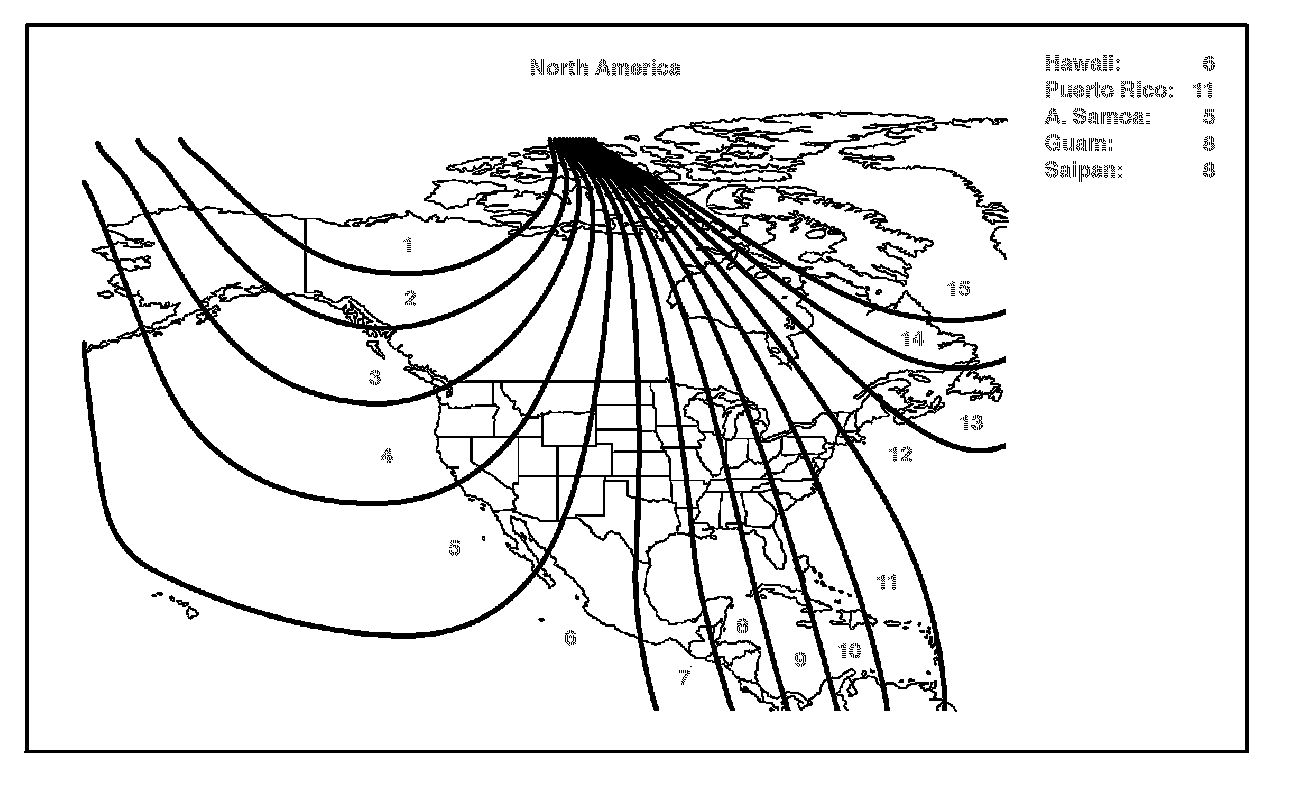

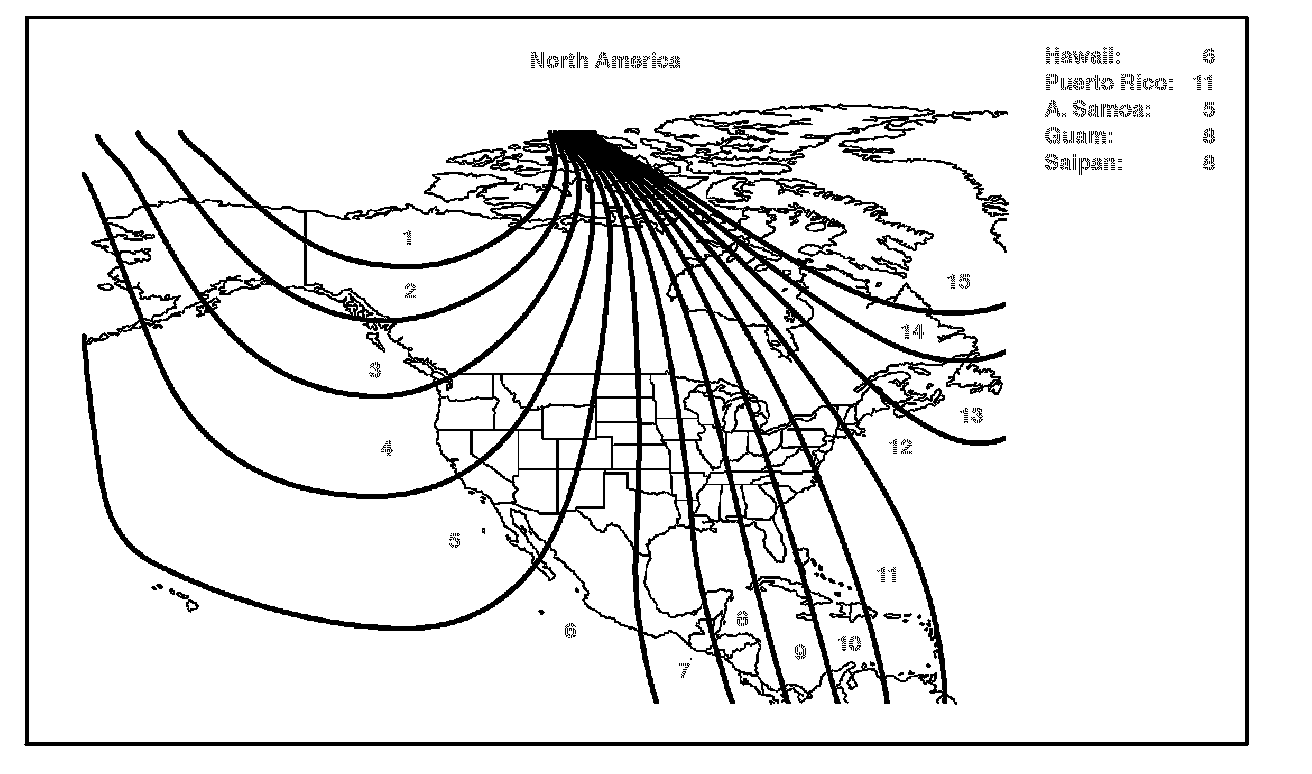

See the map below for zone reference.

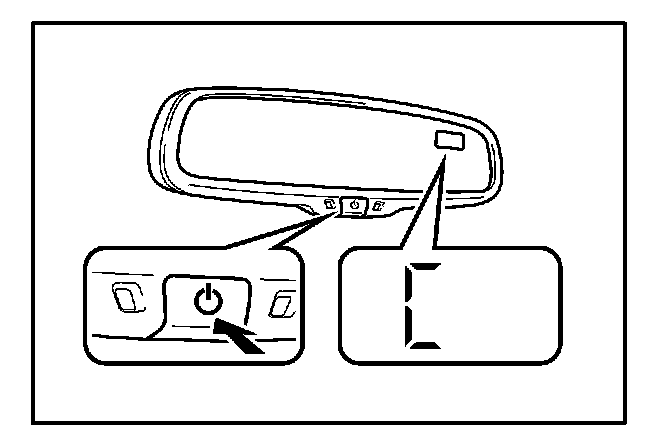

3. Start the engine and push and hold the switch for 9 seconds until "C" appears on the display.

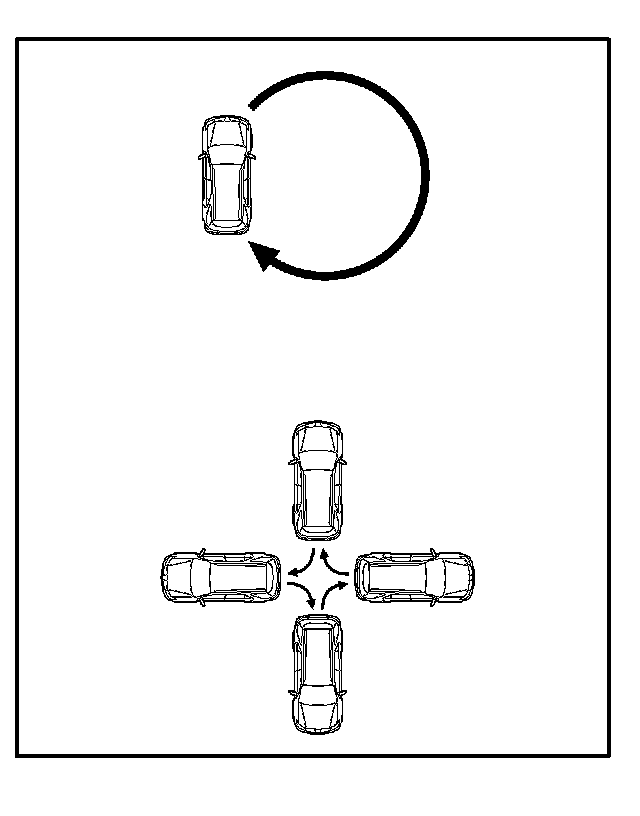

4. Drive the vehicle slowly at 5 mph (8 km/h) or less in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, turn the car around as shown, doing two three-point turns in succession.

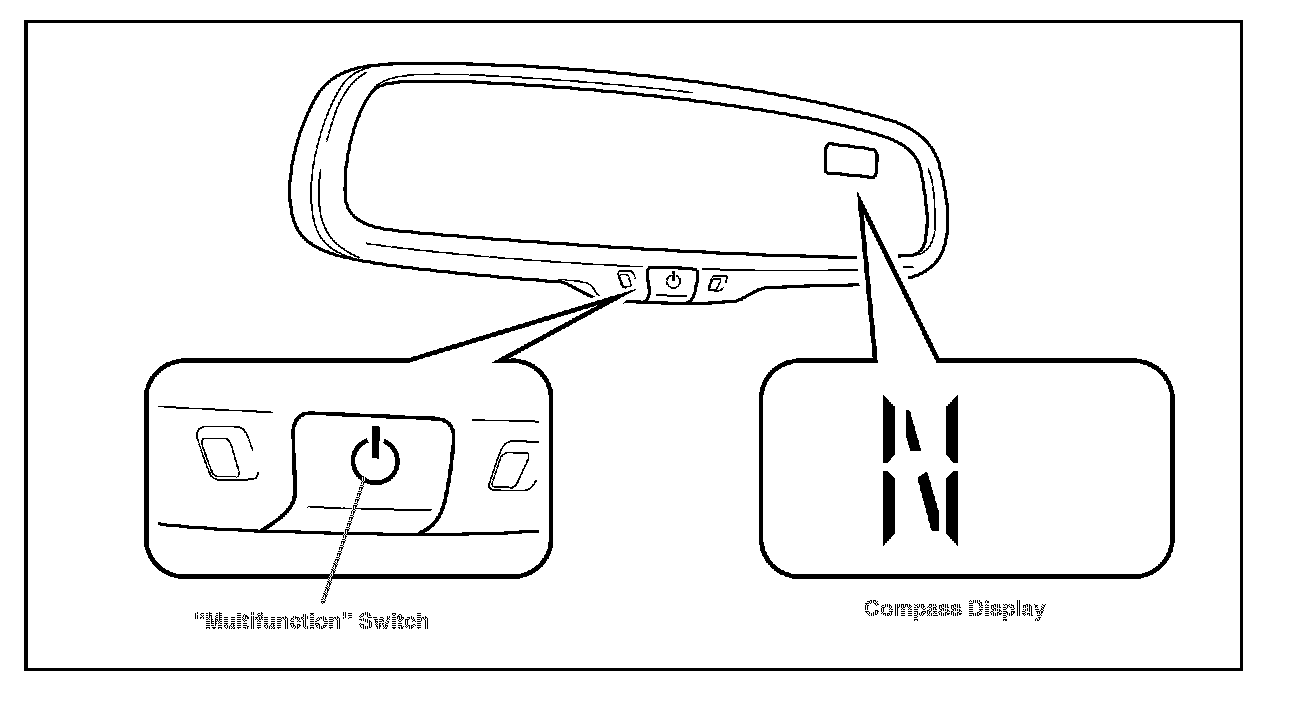

After driving in 1 to 3 circles in the above method, calibration is complete with the direction shown on the display.

^ Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)

^ During calibration, do NOT operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
