Steering Mounted Controls Assembly: Testing and Inspection

METER: STEERING PAD SWITCH: INSPECTION

INSPECTION

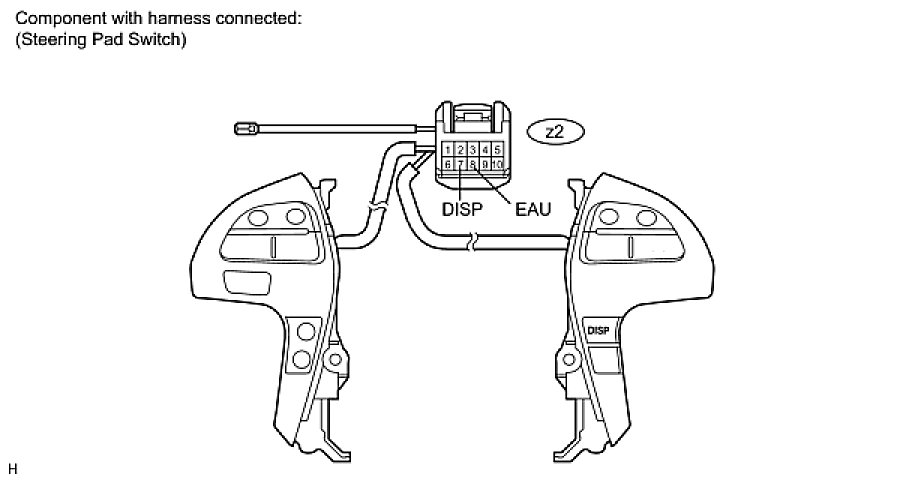

1. INSPECT STEERING PAD SWITCH

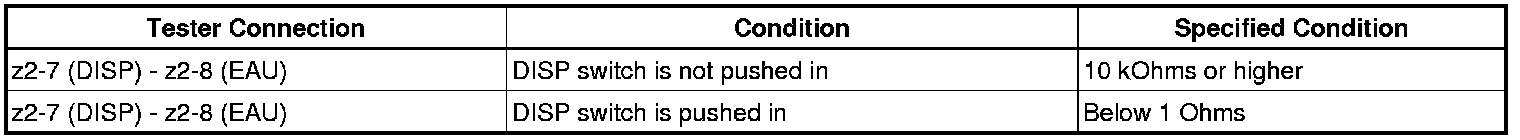

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





HINT: If the value is not as specified, replace the steering pad switch Removal.
