METER: STEERING PAD SWITCH: INSTALLATION

INSTALLATION

1. INSTALL STEERING PAD SWITCH ASSEMBLY

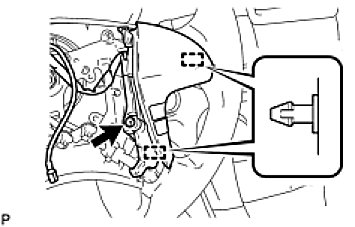

(a) Engage the 2 pins and install the steering pad switch assembly.
(b) Install the screw.
Torque: 2.4 Nm (24 kgf-cm, 21 in-lbf)






(c) Engage the 2 pins and install the steering pad switch assembly.
(d) Install the screw.
Torque: 2.4 Nm (24 kgf-cm, 21 in-lbf)
(e) Connect the pad switch connector to the spiral cable.
2. INSTALL STEERING PAD Installation

3. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

4. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Repair Instruction - Initialization

6. INSPECT STEERING PAD Installation

7. INSPECT SRS WARNING LIGHT Diagnosis System
