Electrical Diagrams

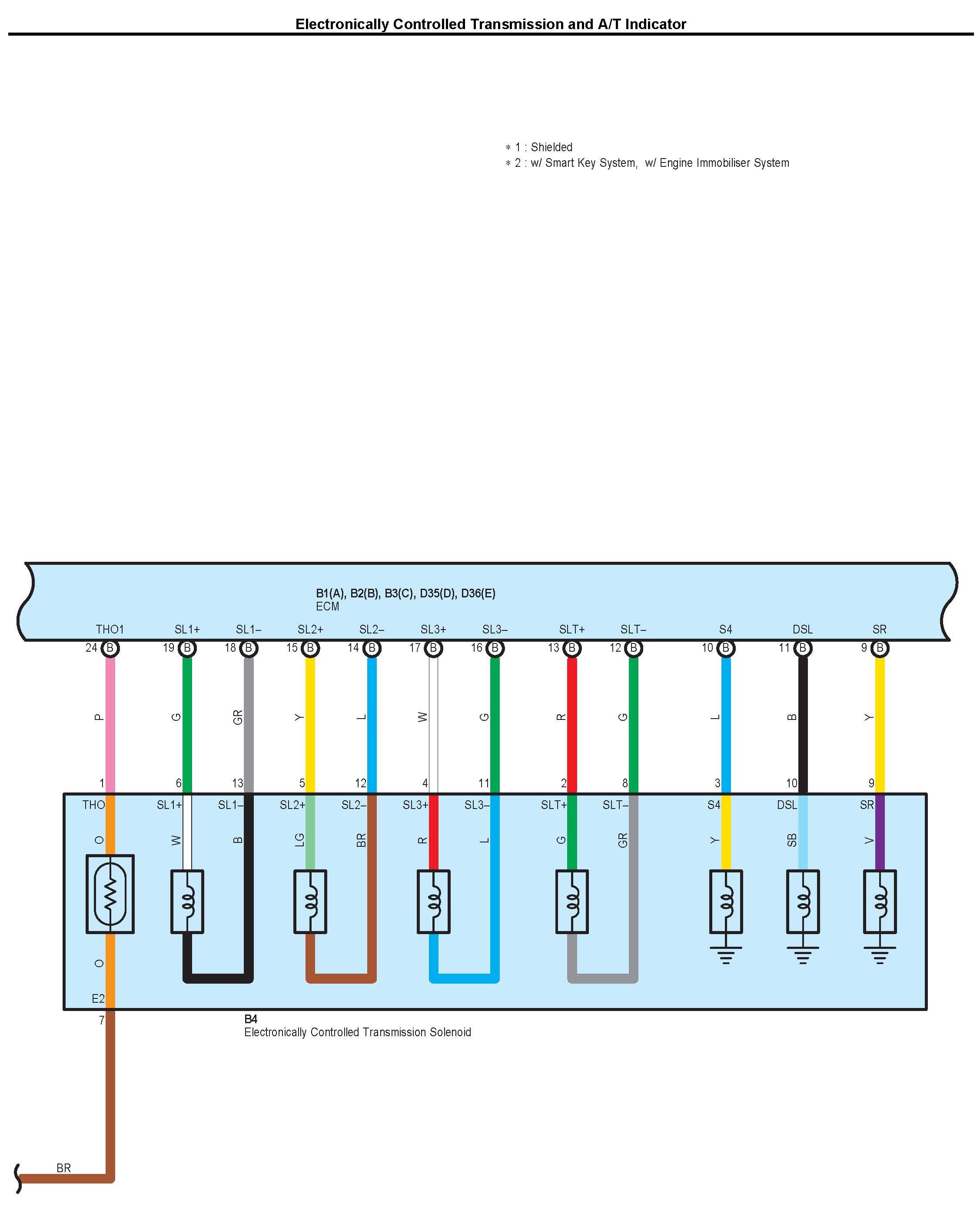

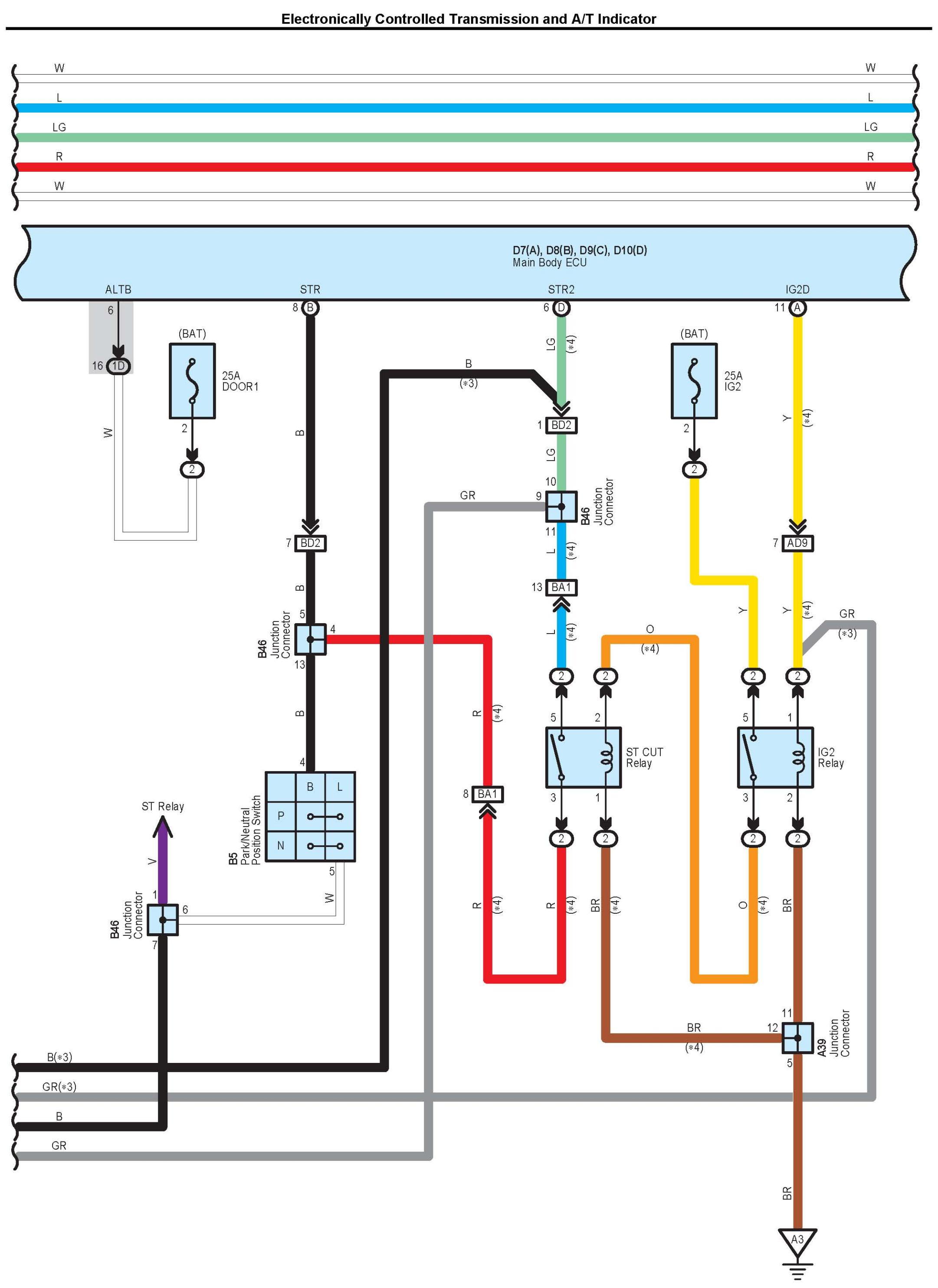

Electronically Controlled Transmission and A/T Indicator Part 1:

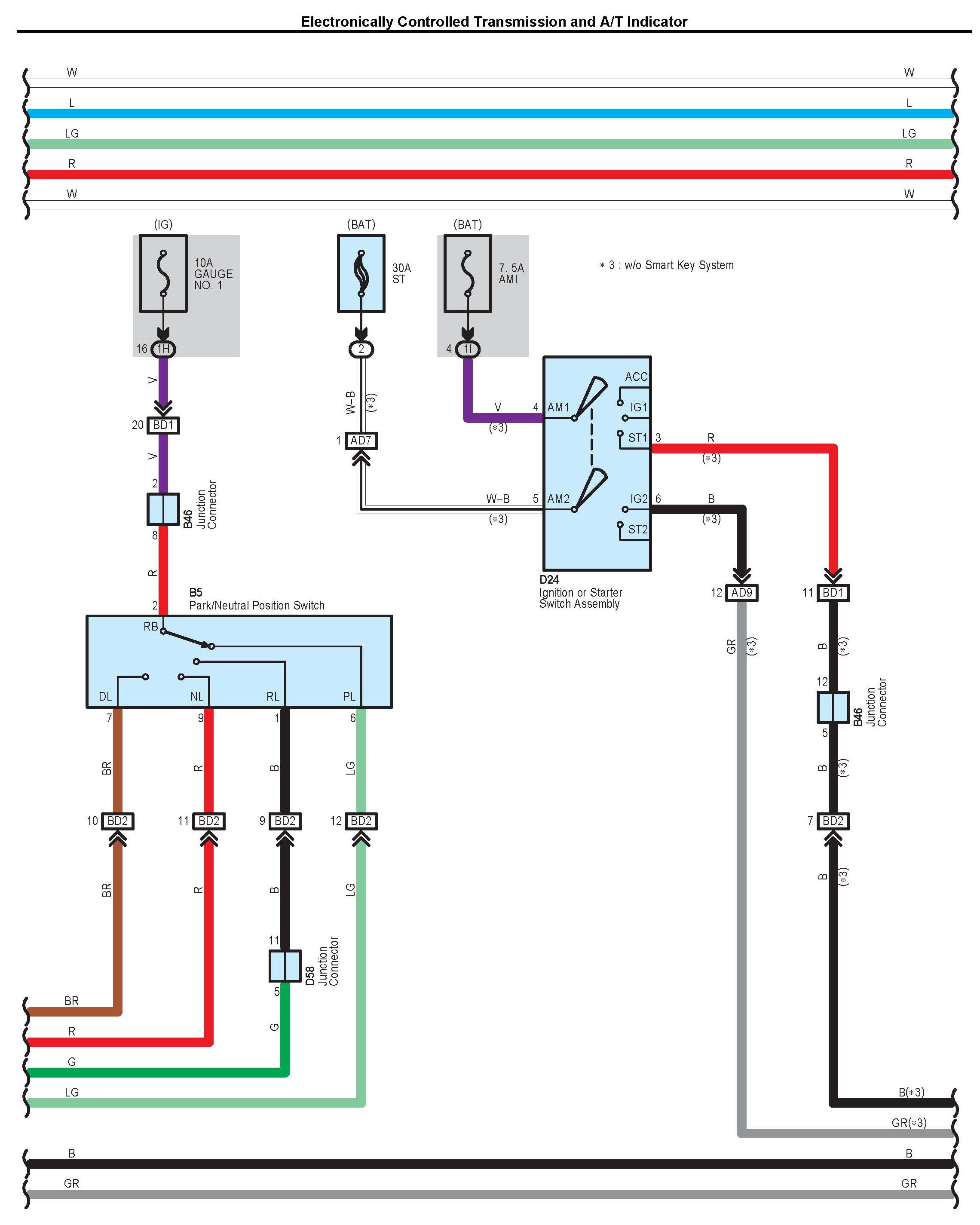

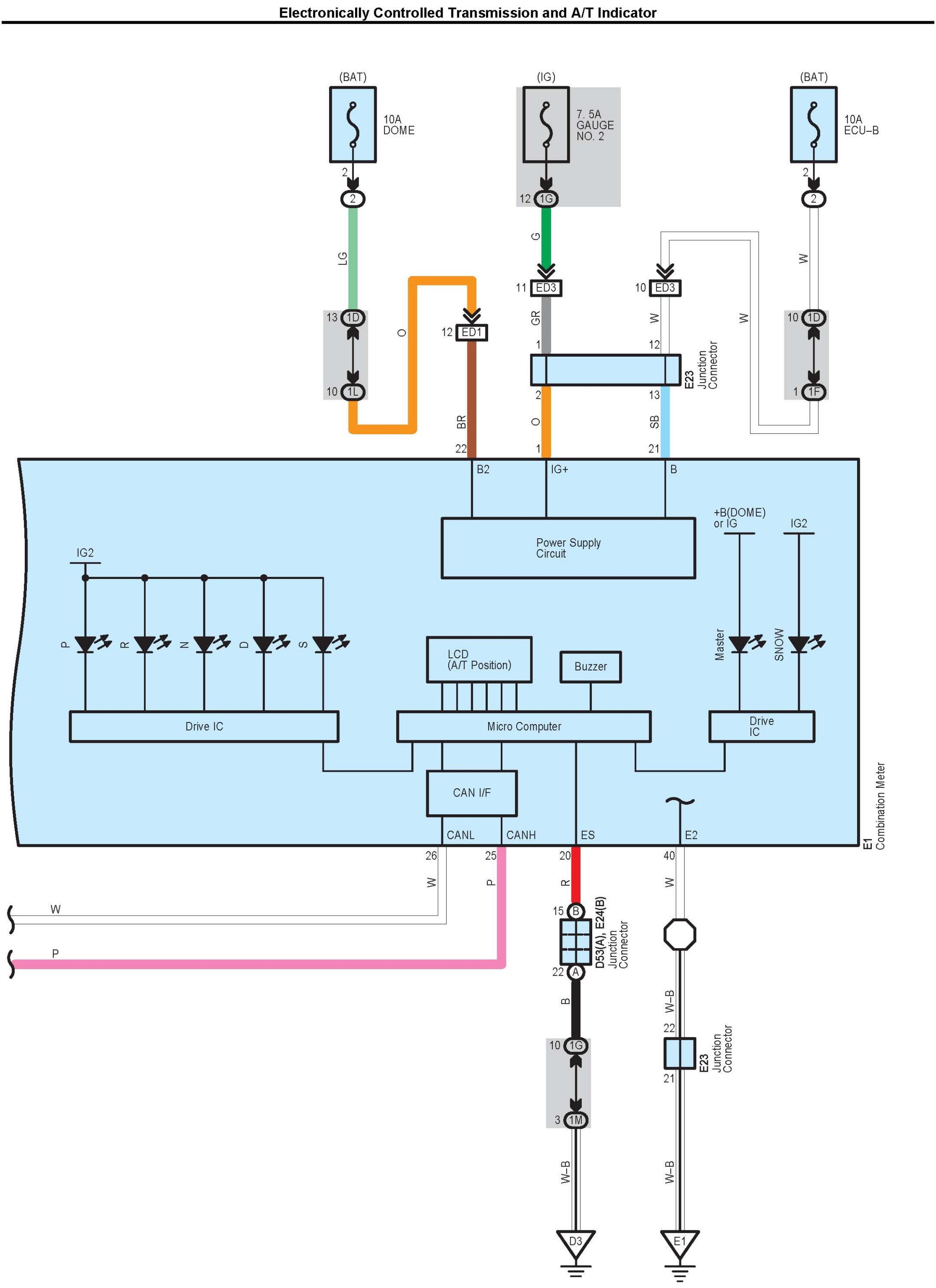

Electronically Controlled Transmission and A/T Indicator Part 2:

Electronically Controlled Transmission and A/T Indicator Part 3:

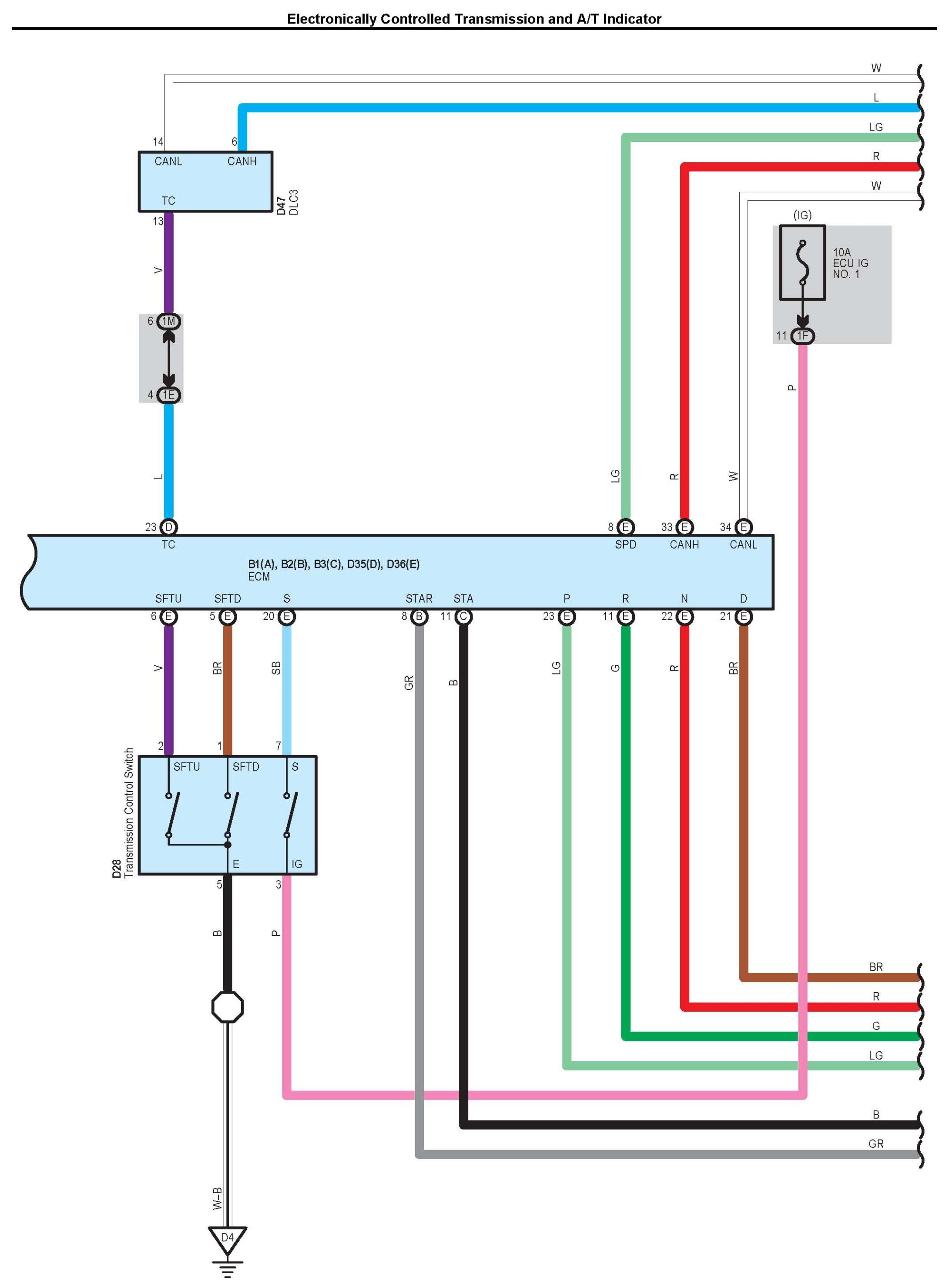

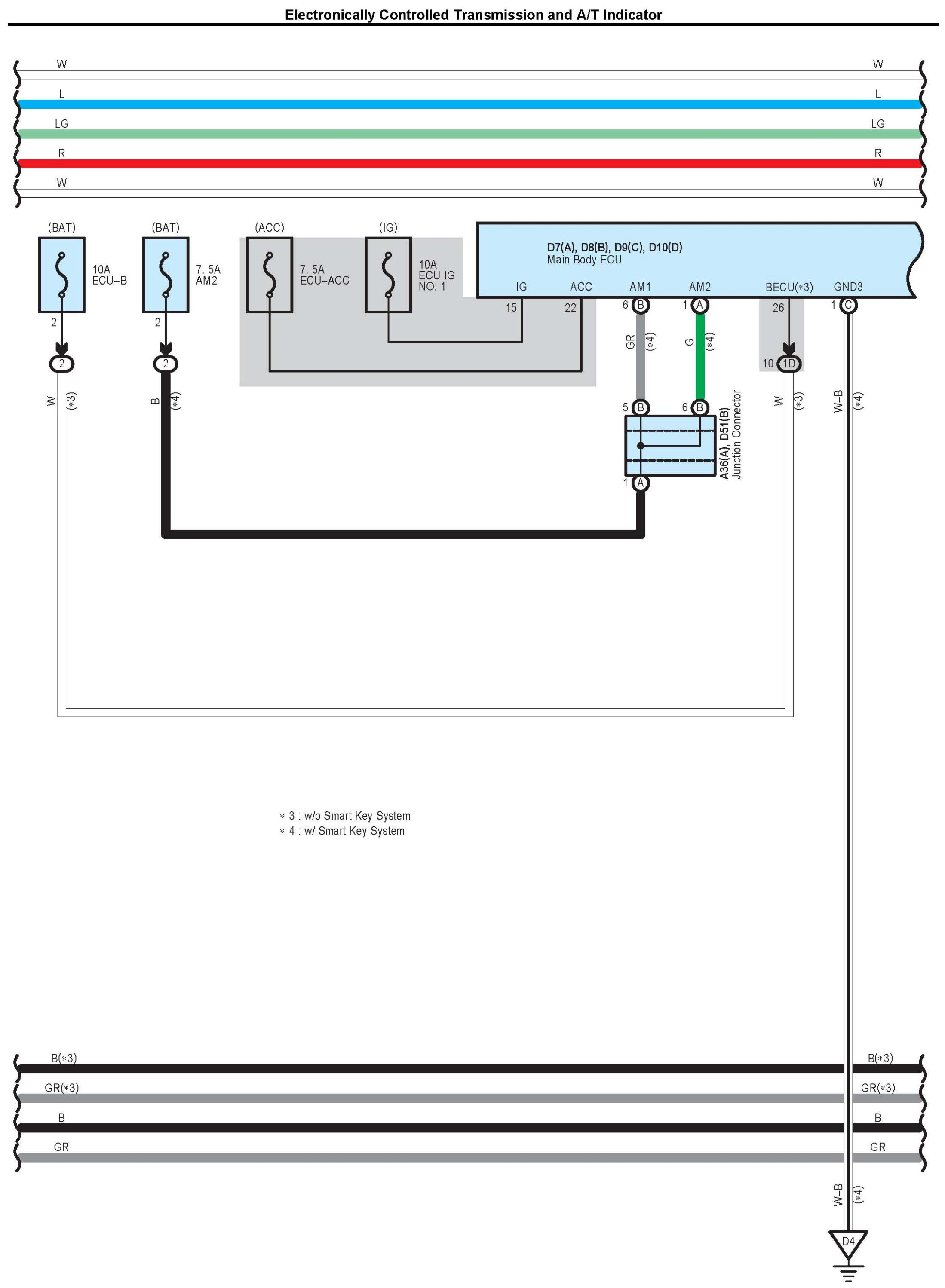

Electronically Controlled Transmission and A/T Indicator Part 4:

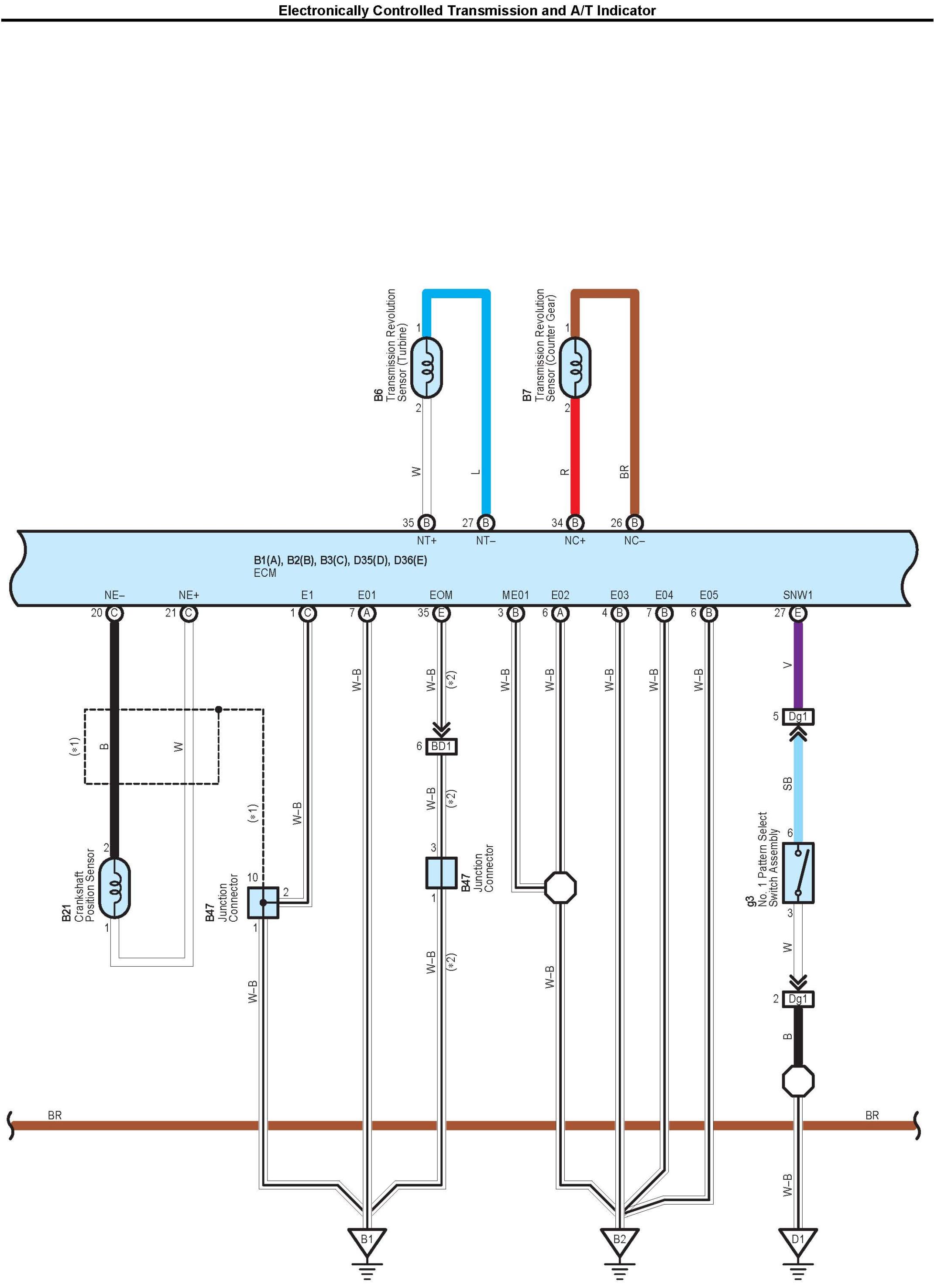

Electronically Controlled Transmission and A/T Indicator Part 5:

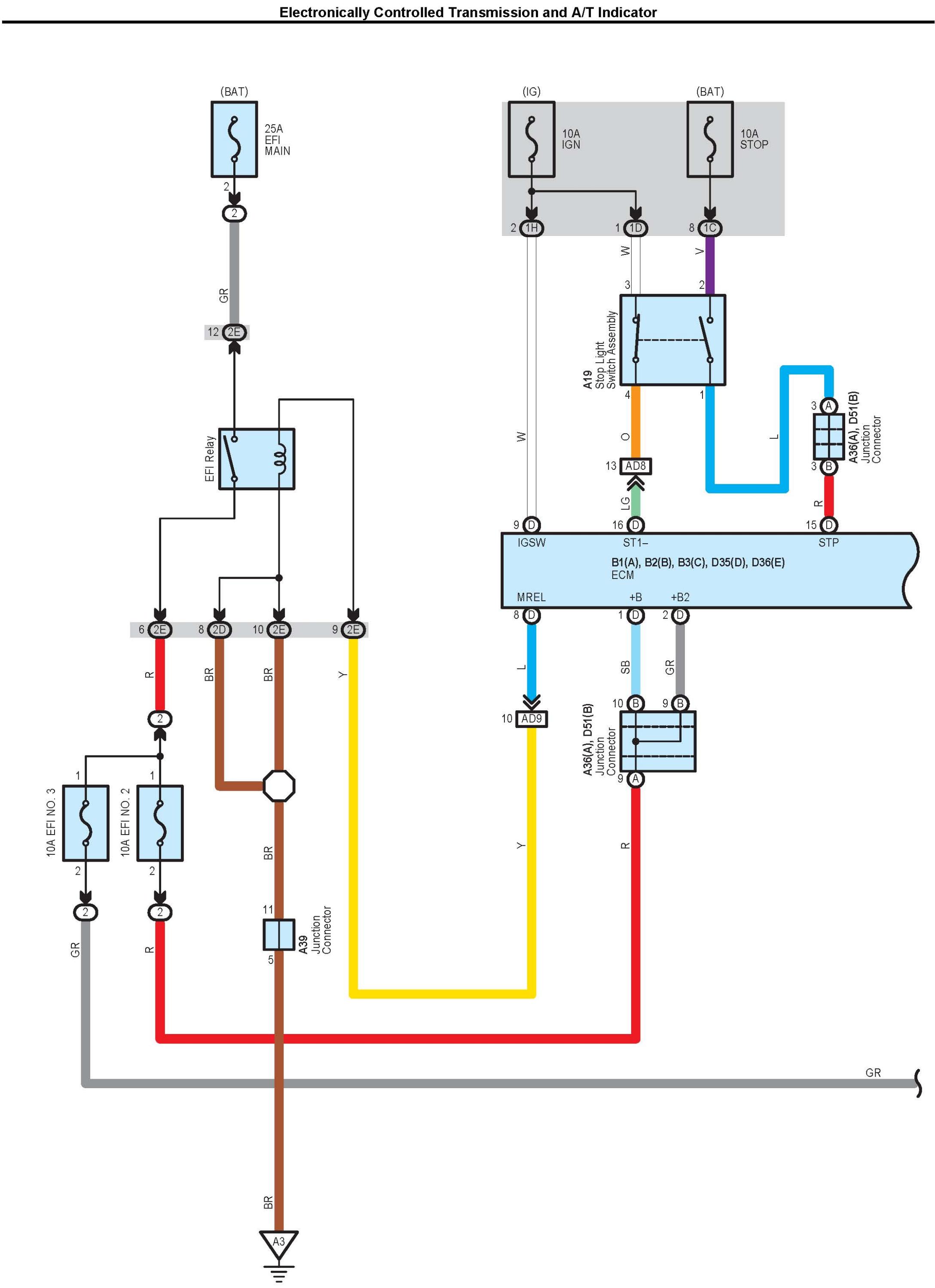

Electronically Controlled Transmission and A/T Indicator Part 6:

Electronically Controlled Transmission and A/T Indicator Part 7:

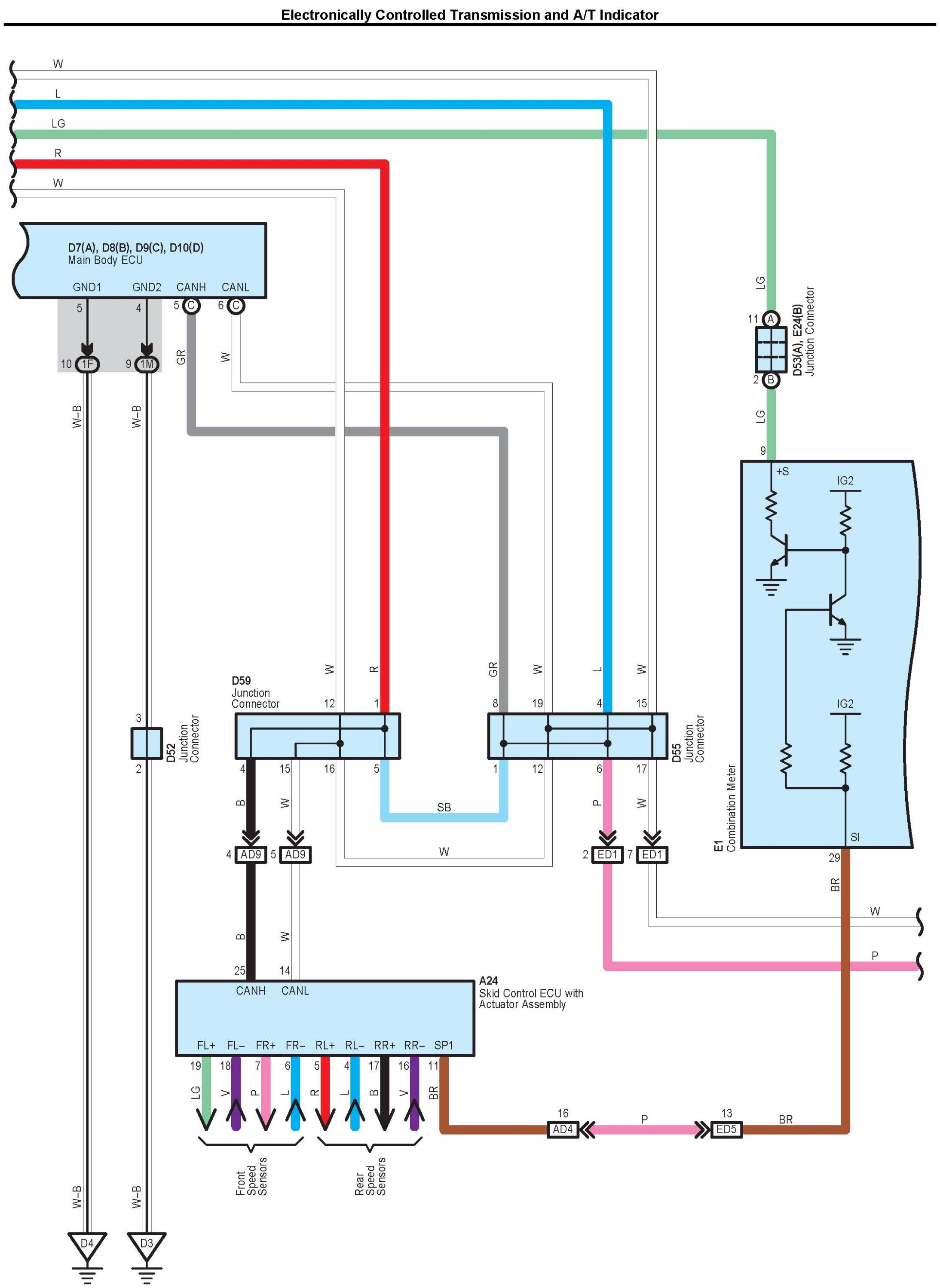

Electronically Controlled Transmission and A/T Indicator Part 8:

Electronically Controlled Transmission and A/T Indicator Part 9:

Electronically Controlled Transmission and A/T Indicator Part 10:

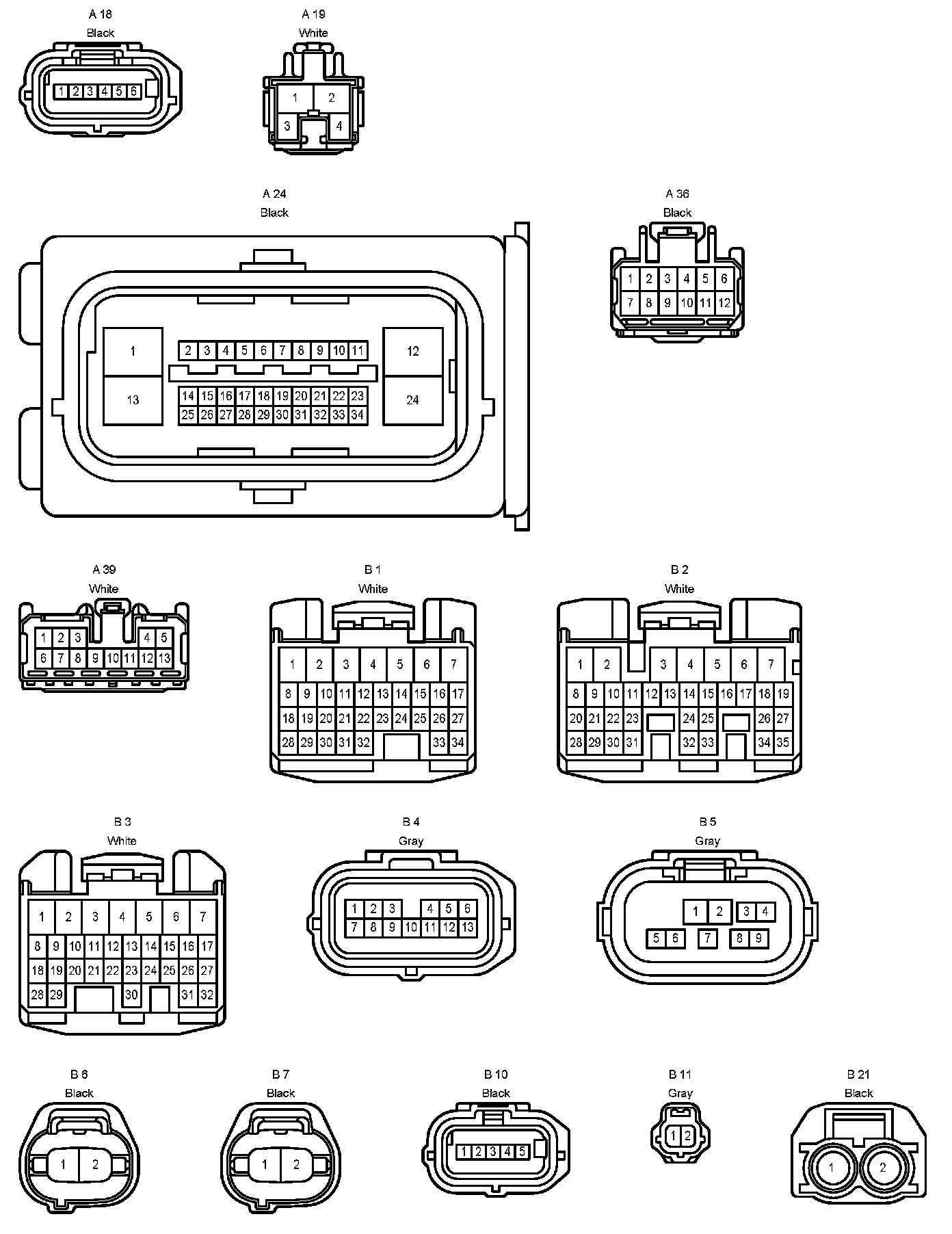

A18 - B21:

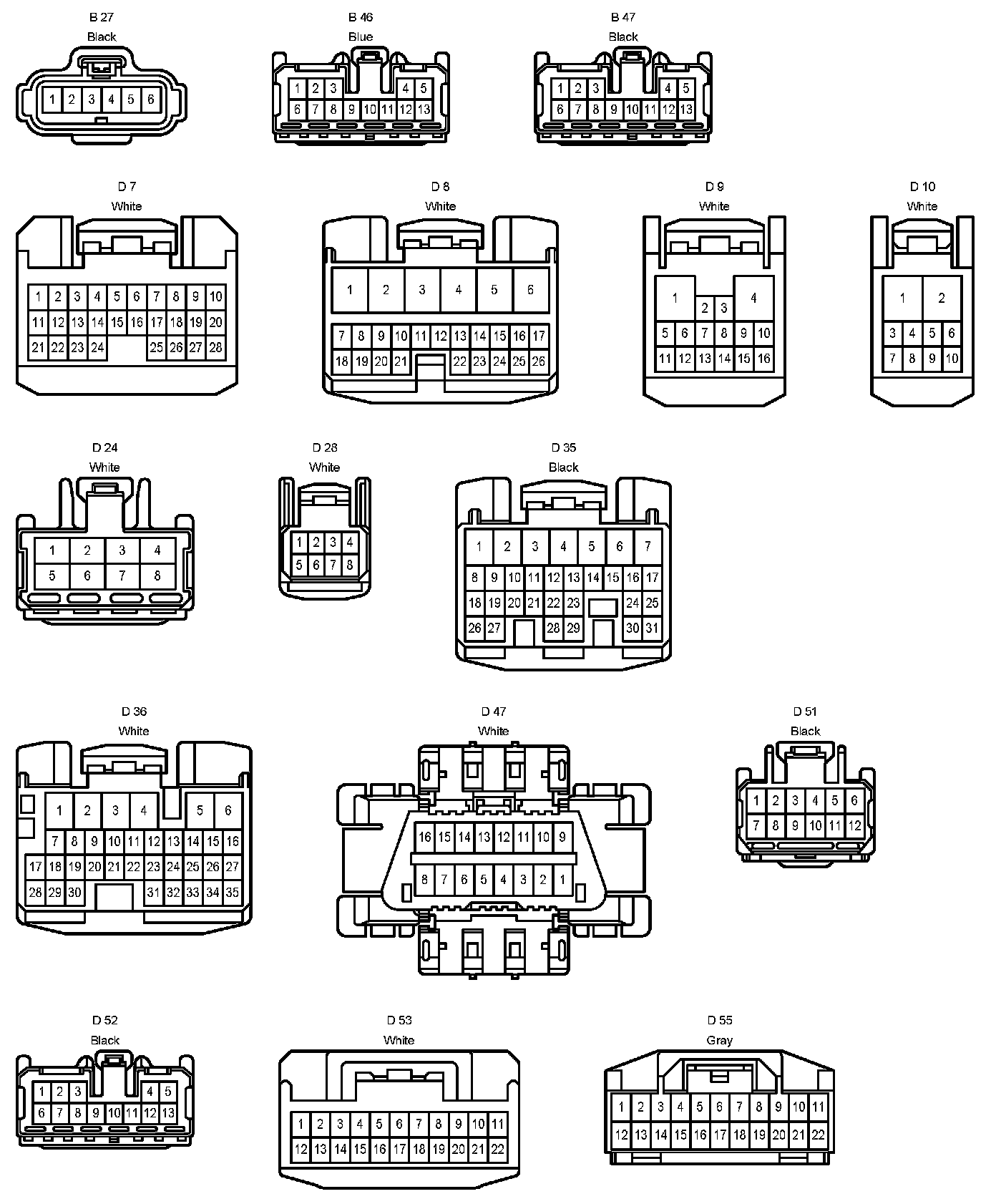

B27 - D55:

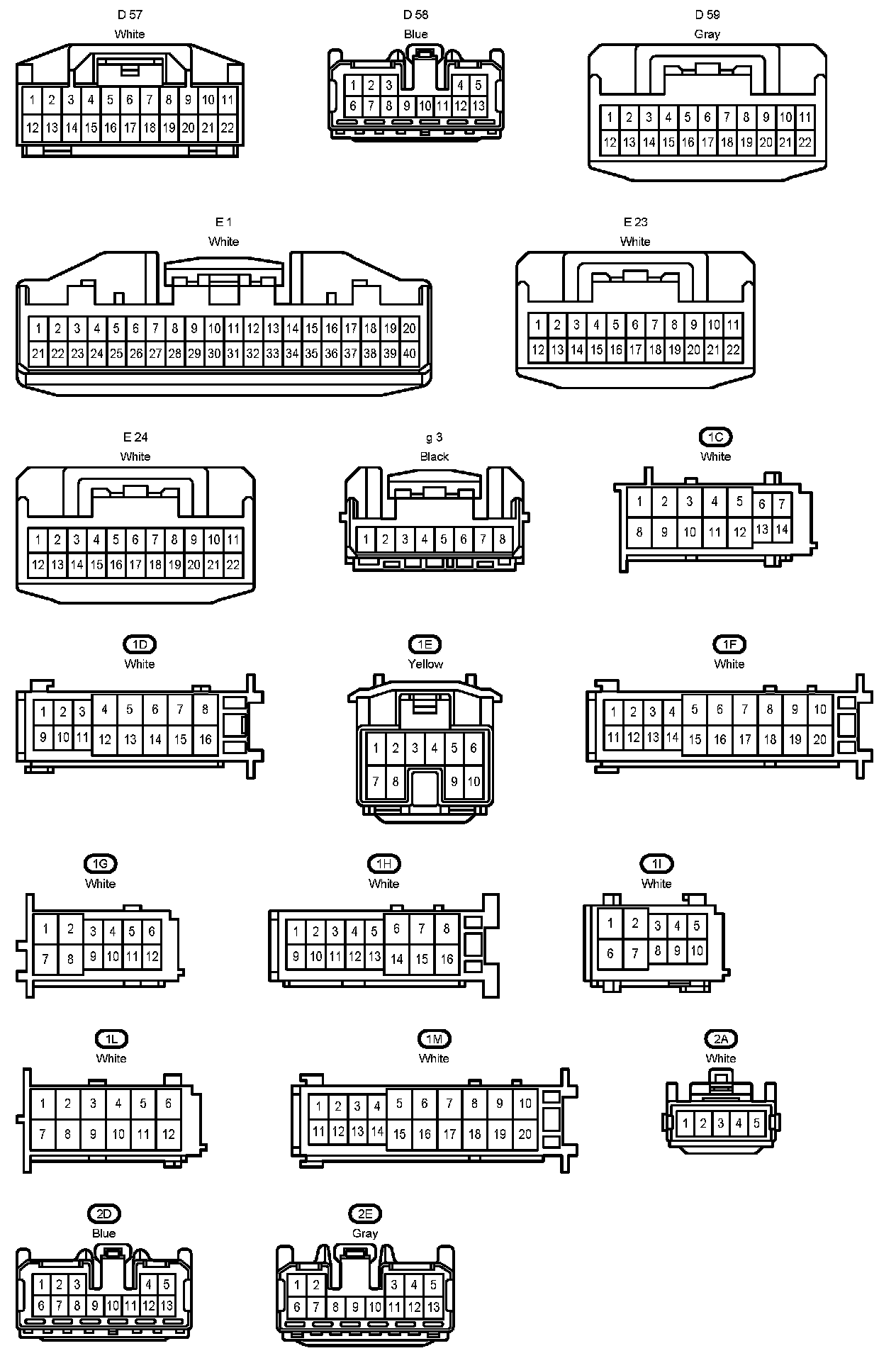

D57 - 2E:

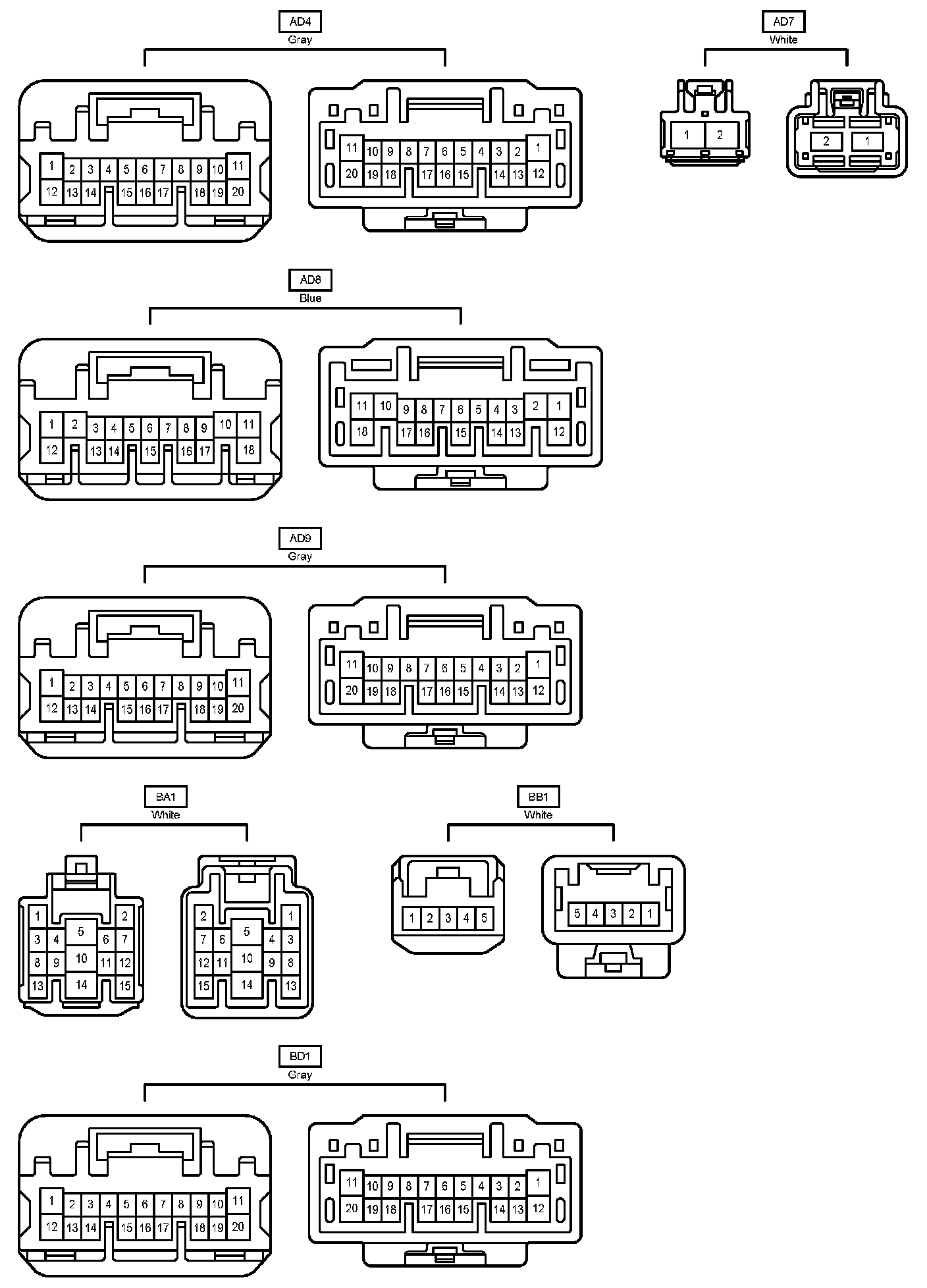

AD4 - BD1:

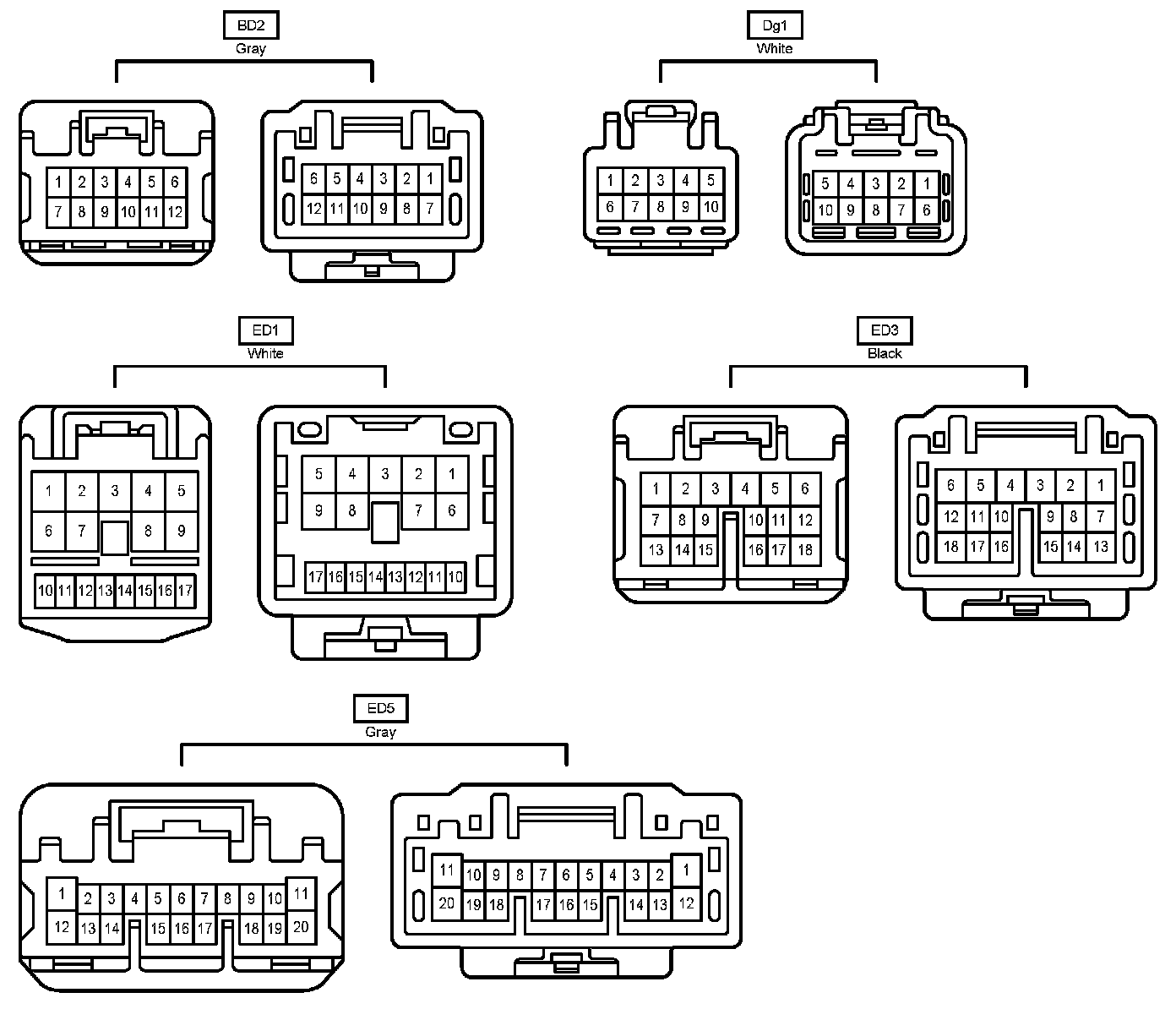

BD2 - ED5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
