Home >> Toyota Truck >> 2008 >> Highlander 2WD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Description and Operation

Ignition System: Description and Operation








2GR-FE IGNITION: IGNITION SYSTEM:

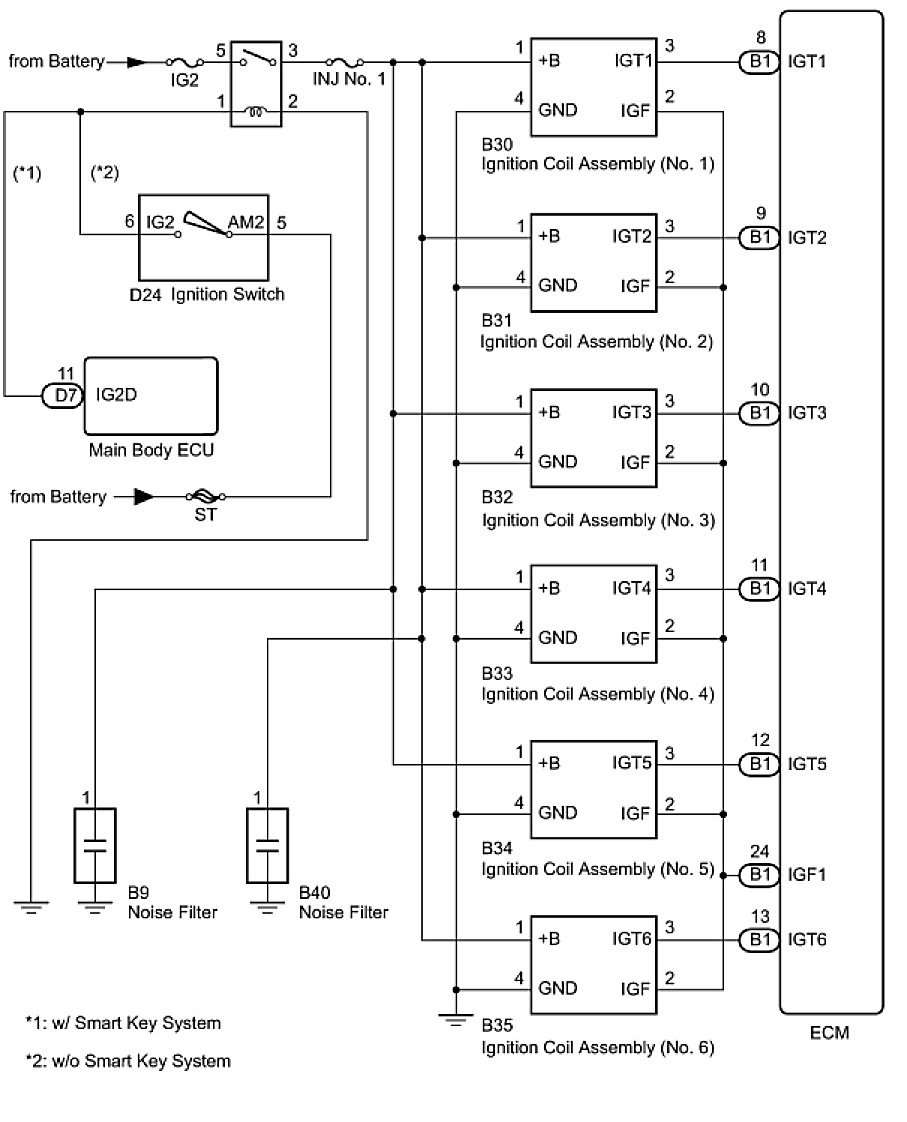

SYSTEM DIAGRAM
