Housing Assembly HVAC: Testing and Inspection

AIR CONDITIONING: PTC HEATER ASSEMBLY: INSPECTION

INSPECTION

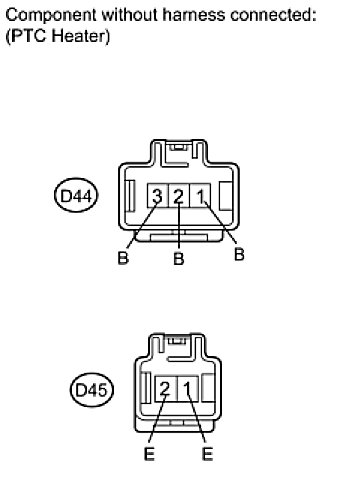

1. INSPECT PTC HEATER ASSEMBLY






(a) Measure the resistance of the PTC heater.

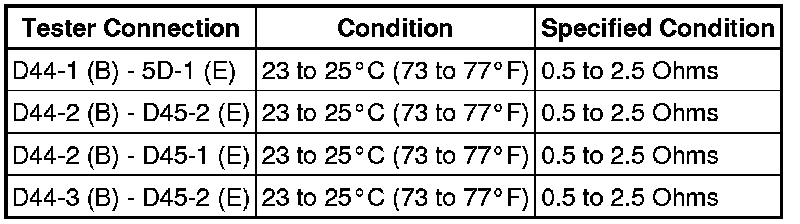

Standard resistance:





If the result is not as specified, replace the PTC heater assembly.
