AIR CONDITIONING: PTC HEATER ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL QUICK HEATER ASSEMBLY

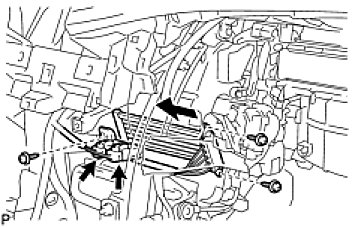

(a) Install the quick heater assembly with the 3 screws as shown in the illustration.
(b) Connect the 2 connectors.
2. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY






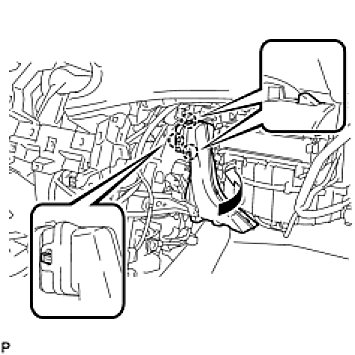

(a) Engage the 3 claws and install the No. 3 air duct sub-assembly as shown in the illustration.
3. INSTALL FRONT NO. 2 CONSOLE BOX INSERT Installation

4. INSTALL CONSOLE BOX ASSEMBLY Installation

5. INSTALL LOWER REAR CONSOLE BOX Installation

6. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

7. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation

8. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

9. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

10. INSTALL FRONT DOOR SCUFF PLATE RH Installation

11. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System) Installation

12. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System) Installation

13. INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY (for Manual Air Conditioning System) Installation

14. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System) Installation

15. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System) Installation

16. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System) Installation

17. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY Installation
