Rear Evaporator Temperature Sensor

AIR CONDITIONING: REAR EVAPORATOR TEMPERATURE SENSOR: INSPECTION

INSPECTION

1. INSPECT EVAPORATOR TEMPERATURE SENSOR






(a) Measure the resistance of the sensor.

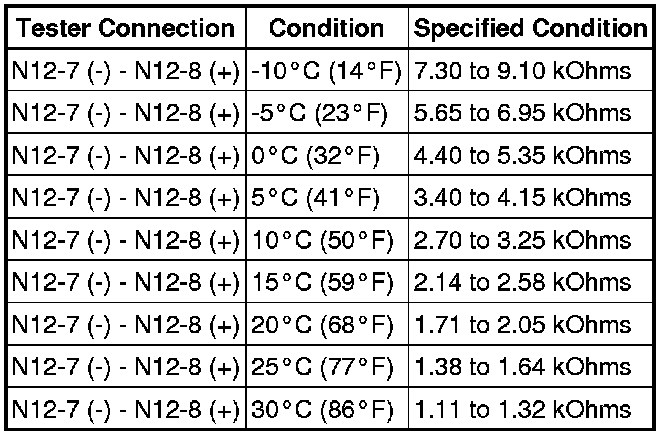

Standard resistance:





NOTICE:
- Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
- When measuring the sensor temperature must be the same as the ambient temperature.
HINT: As the temperature increases, the resistance decreases (see the graph).
If the resistance value is not as specified, replace the sensor.
