AIR CONDITIONING: CONDENSER: REMOVAL

REMOVAL

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal

3. REMOVE RADIATOR GRILLE Removal

4. REMOVE HOOD LOCK ASSEMBLY (w/o Engine Hood Courtesy Switch) Removal

5. REMOVE HOOD LOCK ASSEMBLY (w/ Engine Hood Courtesy Switch) Removal

6. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

7. DISCONNECT DISCHARGE TUBE SUB-ASSEMBLY






(a) Remove the bolt and disconnect the discharge tube sub-assembly from the condenser.
(b) Remove the O-ring from the discharge tube sub-assembly.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

8. DISCONNECT COOLER REFRIGERANT LIQUID PIPE A






(a) Remove the bolt and disconnect the cooler refrigerant liquid pipe A from the condenser.
(b) Remove the O-ring from the cooler refrigerant liquid pipe A.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

9. REMOVE COOLER CONDENSER ASSEMBLY






(a) Remove the 4 bolts.

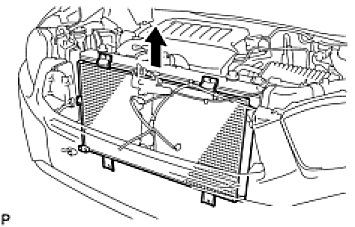

(b) Remove the cooler condenser assembly as shown in the illustration.
