Blower Motor: Testing and Inspection

AIR CONDITIONING: REAR BLOWER MOTOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT COOLING UNIT MOTOR SUB-ASSEMBLY WITH FAN

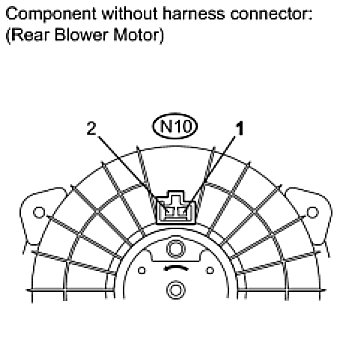

(a) Connect the positive (+) lead from the battery to terminal 1 and negative (-) to terminal 2, then check that the motor operates smoothly. If operation is not as specified, replace the blower motor.
If operation is not as specified, replace the rear blower motor.
