AIR CONDITIONING: FRONT BLOWER MOTOR: INSTALLATION

INSTALLATION

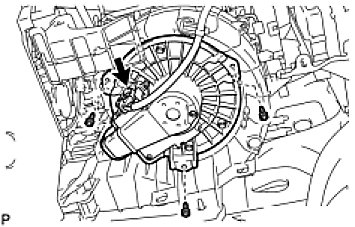

1. INSTALL FRONT BLOWER MOTOR SUB-ASSEMBLY






(a) Install the front blower motor sub-assembly with the 3 screws.
(b) Connect the connector.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
