Reassembly

AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

REASSEMBLY

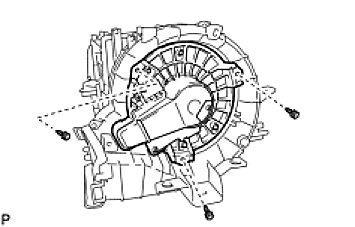

1. INSTALL FRONT BLOWER MOTOR SUB-ASSEMBLY






(a) Install the front blower motor sub-assembly with the 3 screws.

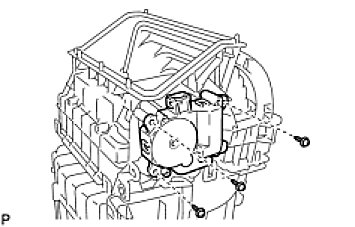

2. INSTALL AIR INLET SERVO MOTOR SUB-ASSEMBLY






(a) Install the air inlet servo motor sub-assembly with the 3 screws.

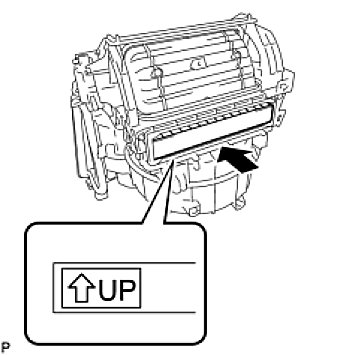

3. INSTALL CLEAN AIR FILTER






(a) Install the clean air filter as shown in the illustration.

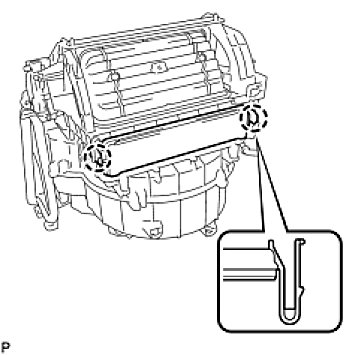

4. INSTALL AIR FILTER CASE






(a) Engage the 2 claws to install the air filter case.

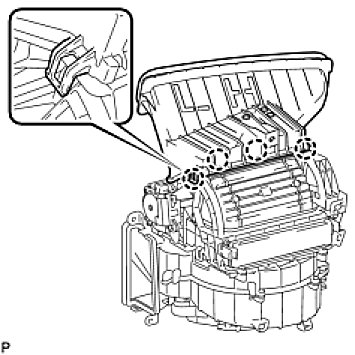

5. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY






(a) Engage the 4 claws to install the air duct sub-assembly.
