Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

DISASSEMBLY

1. REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY






(a) Disengage the 4 claws and remove the No. 1 air duct sub-assembly.
2. REMOVE AIR FILTER CASE






(a) Disengage the 2 claws and remove the air filter case.

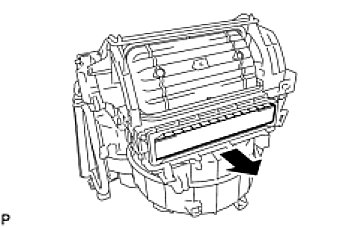

3. REMOVE CLEAN AIR FILTER






(a) Remove the clean air filter as shown in the illustration.
4. REMOVE AIR INLET SERVO MOTOR SUB-ASSEMBLY






(a) Remove the 3 screws and air inlet servo motor sub-assembly.
5. REMOVE FRONT BLOWER MOTOR SUB-ASSEMBLY






(a) Remove the 3 screws and front blower motor sub-assembly.
