System Diagram

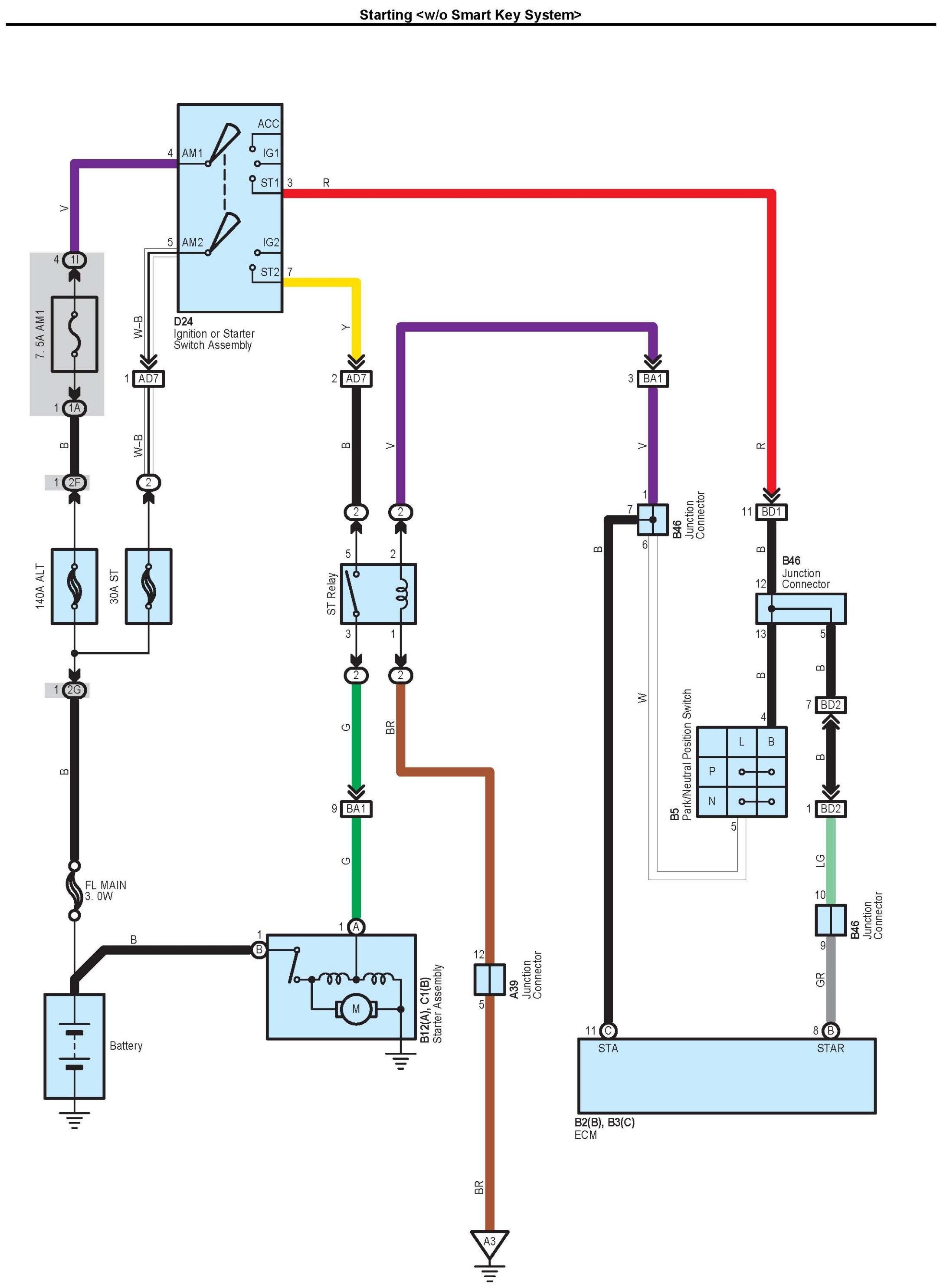

Starting <w/o Smart Key System>:

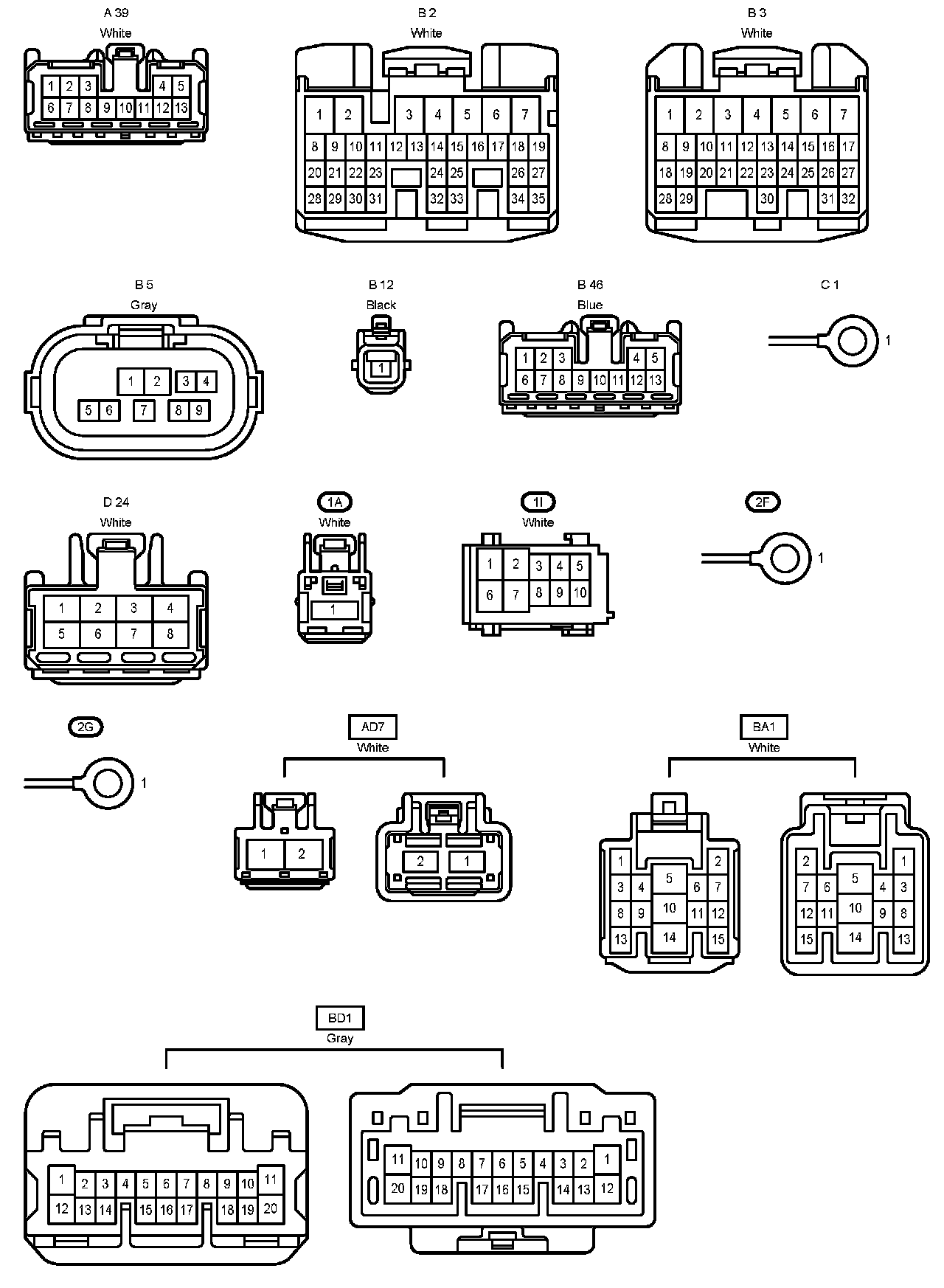

A39 - BD1:

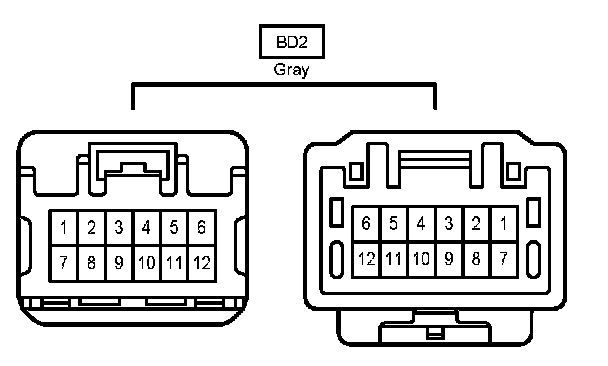

BD2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
