Navigation System

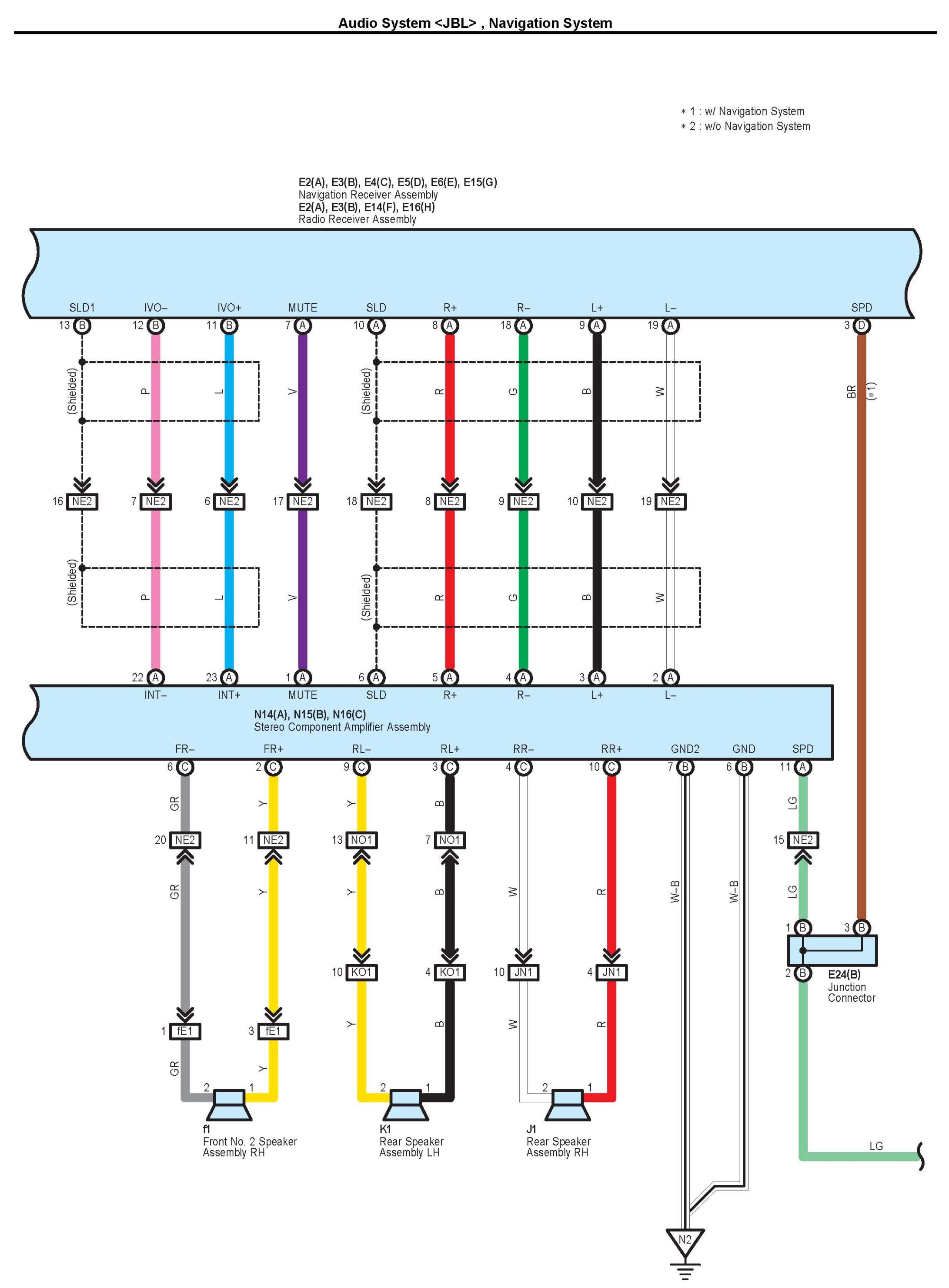

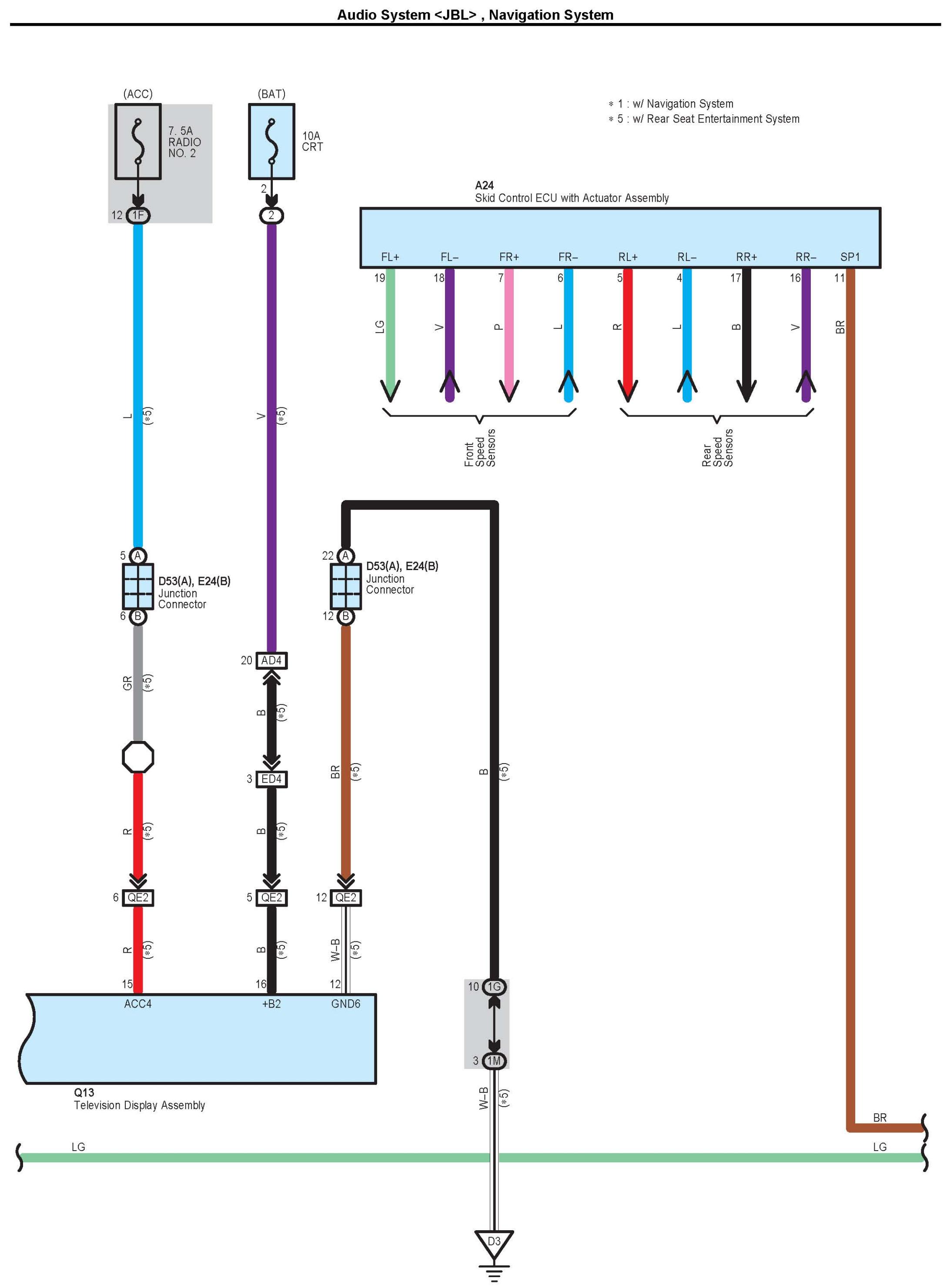

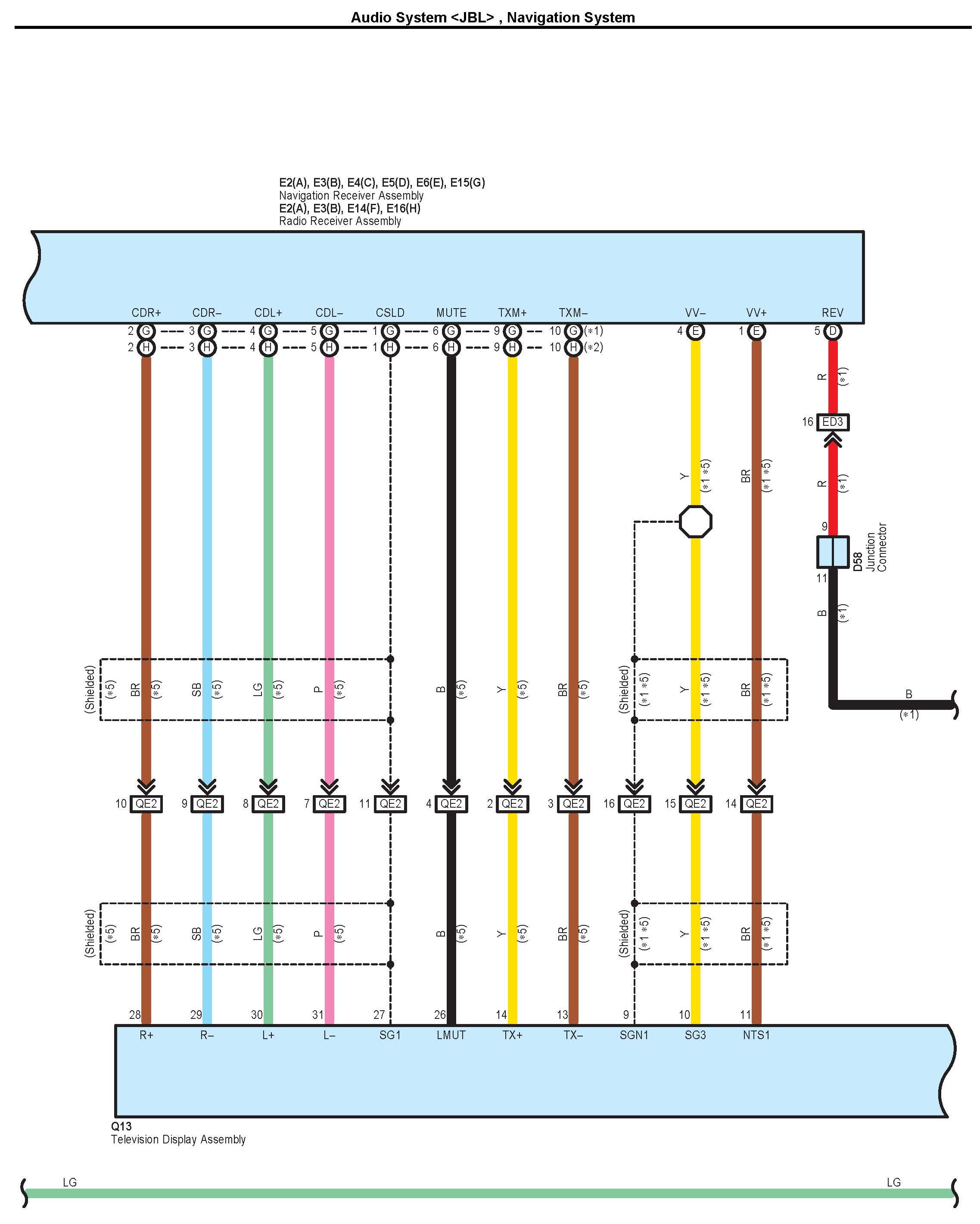

Audio System <JBL>, Navigation System Part 1:

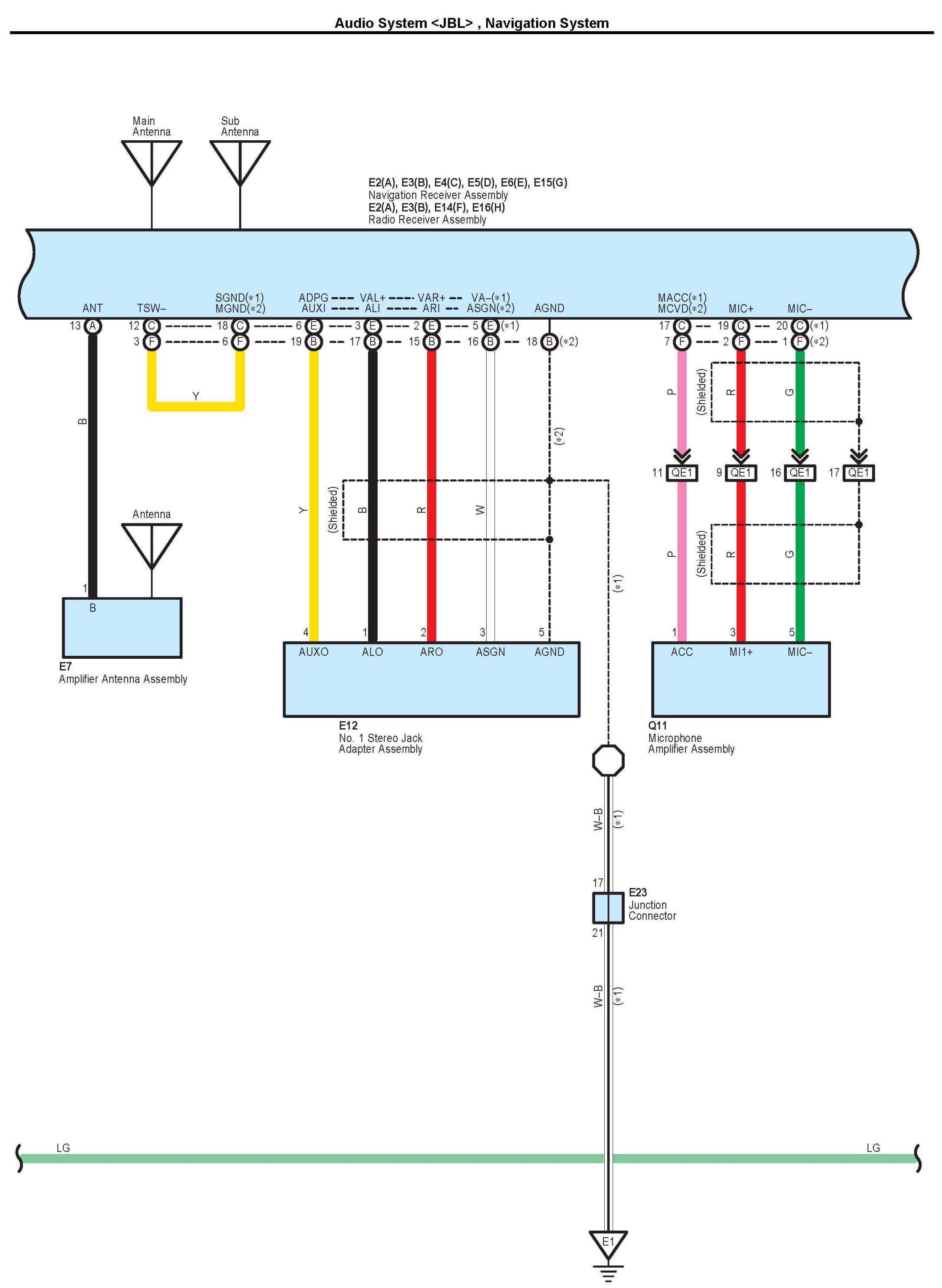

Audio System <JBL>, Navigation System Part 2:

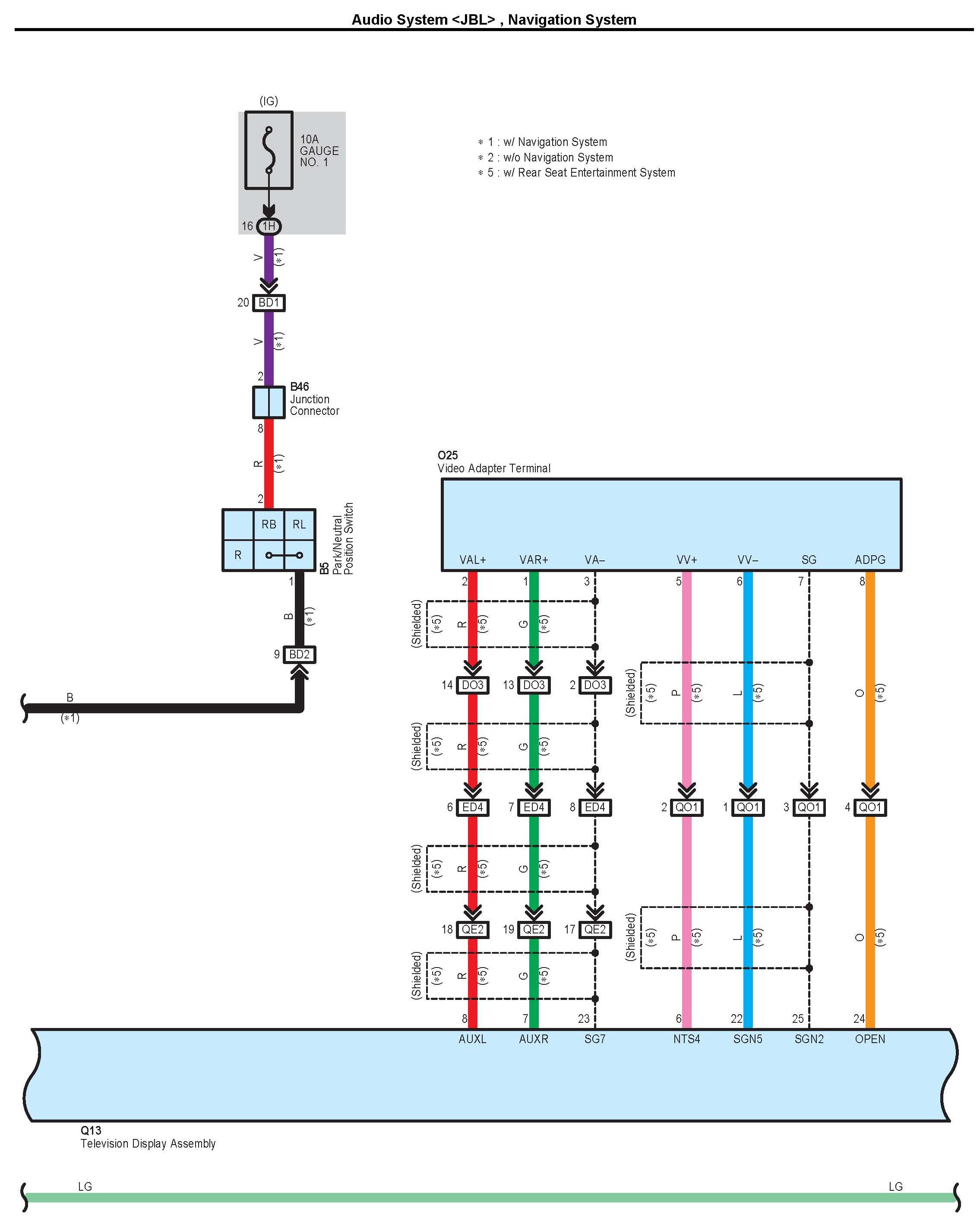

Audio System <JBL>, Navigation System Part 3:

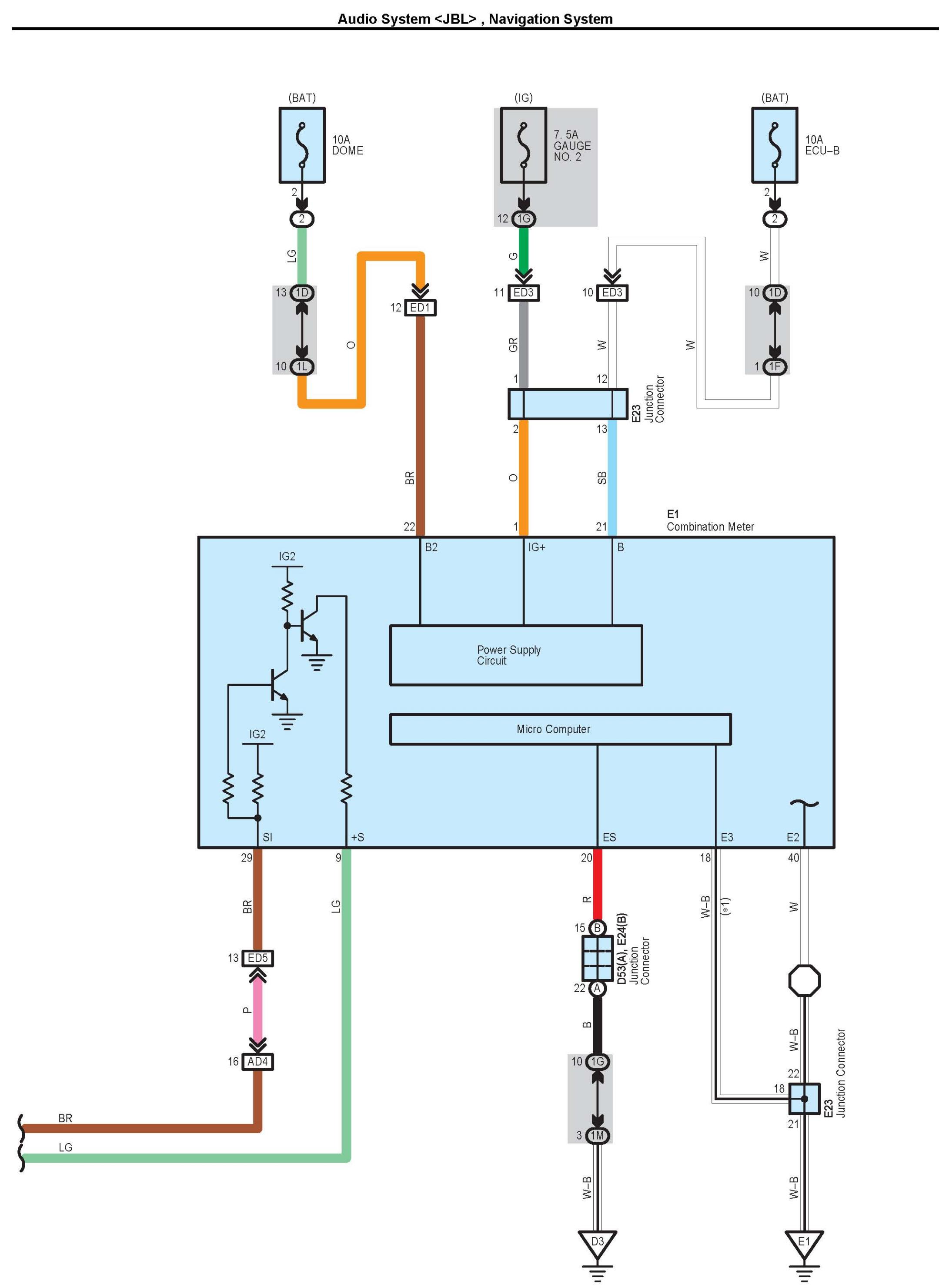

Audio System <JBL>, Navigation System Part 4:

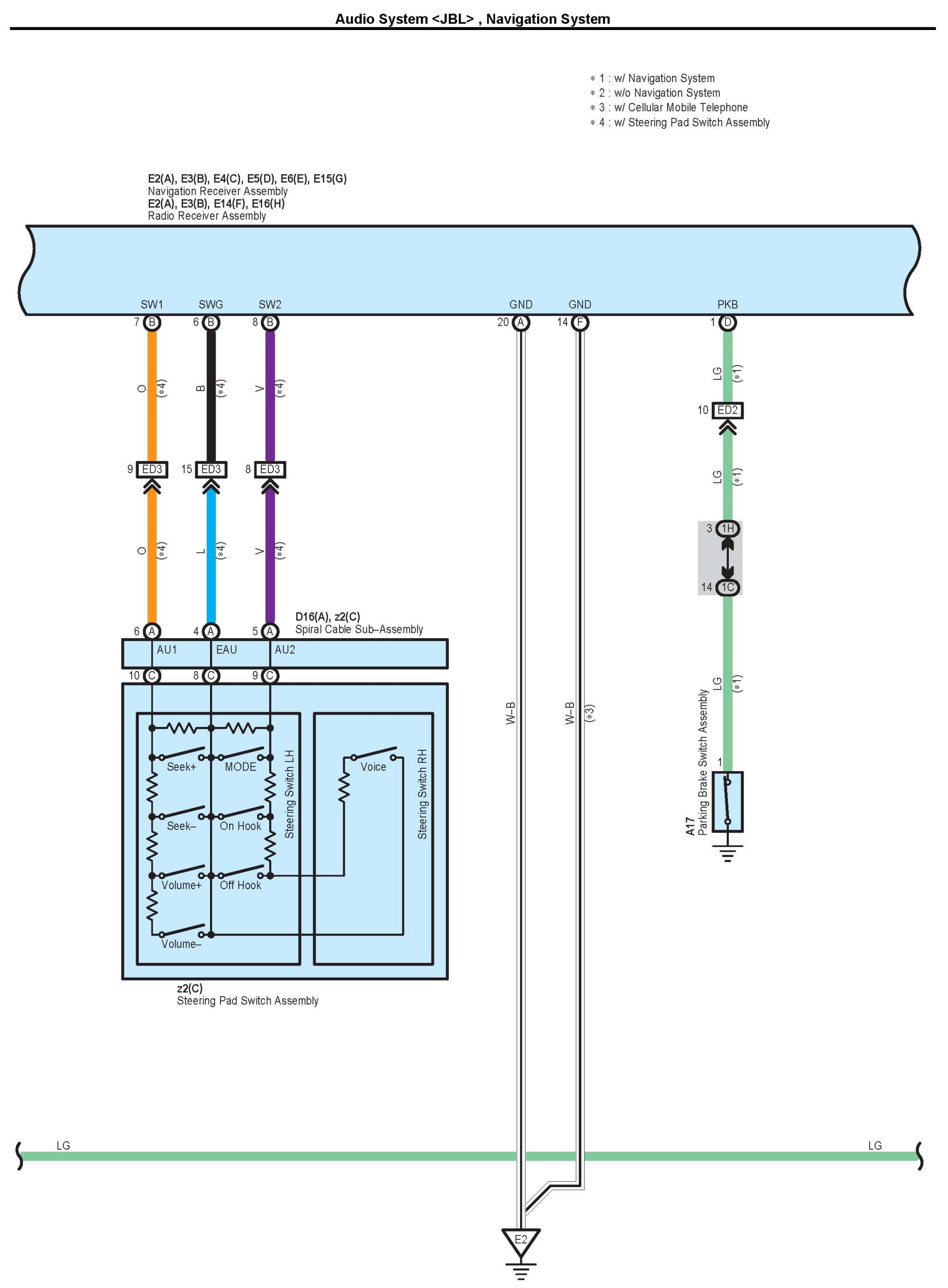

Audio System <JBL>, Navigation System Part 5:

Audio System <JBL>, Navigation System Part 6:

Audio System <JBL>, Navigation System Part 7:

Audio System <JBL>, Navigation System Part 8:

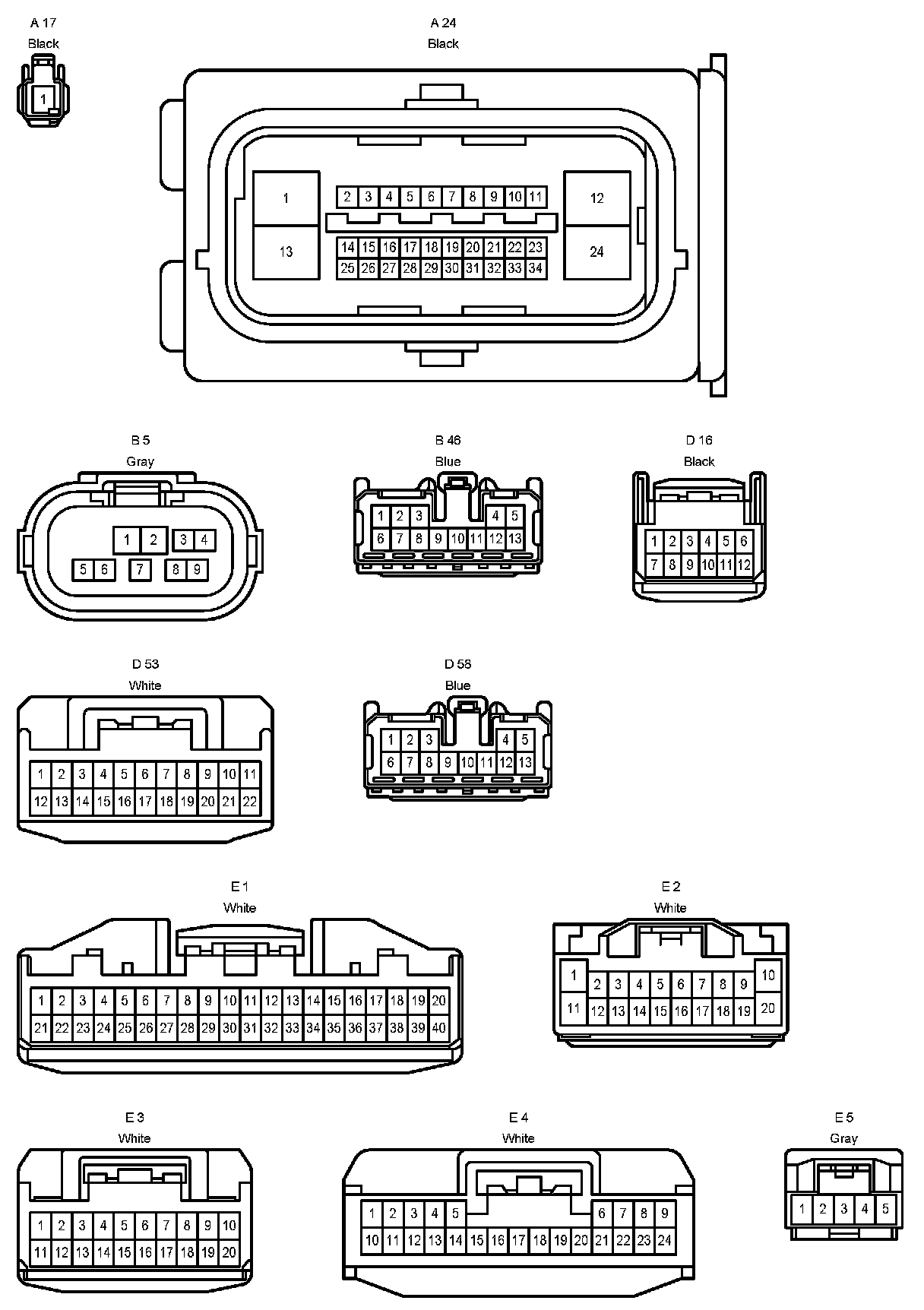

A17 - E5:

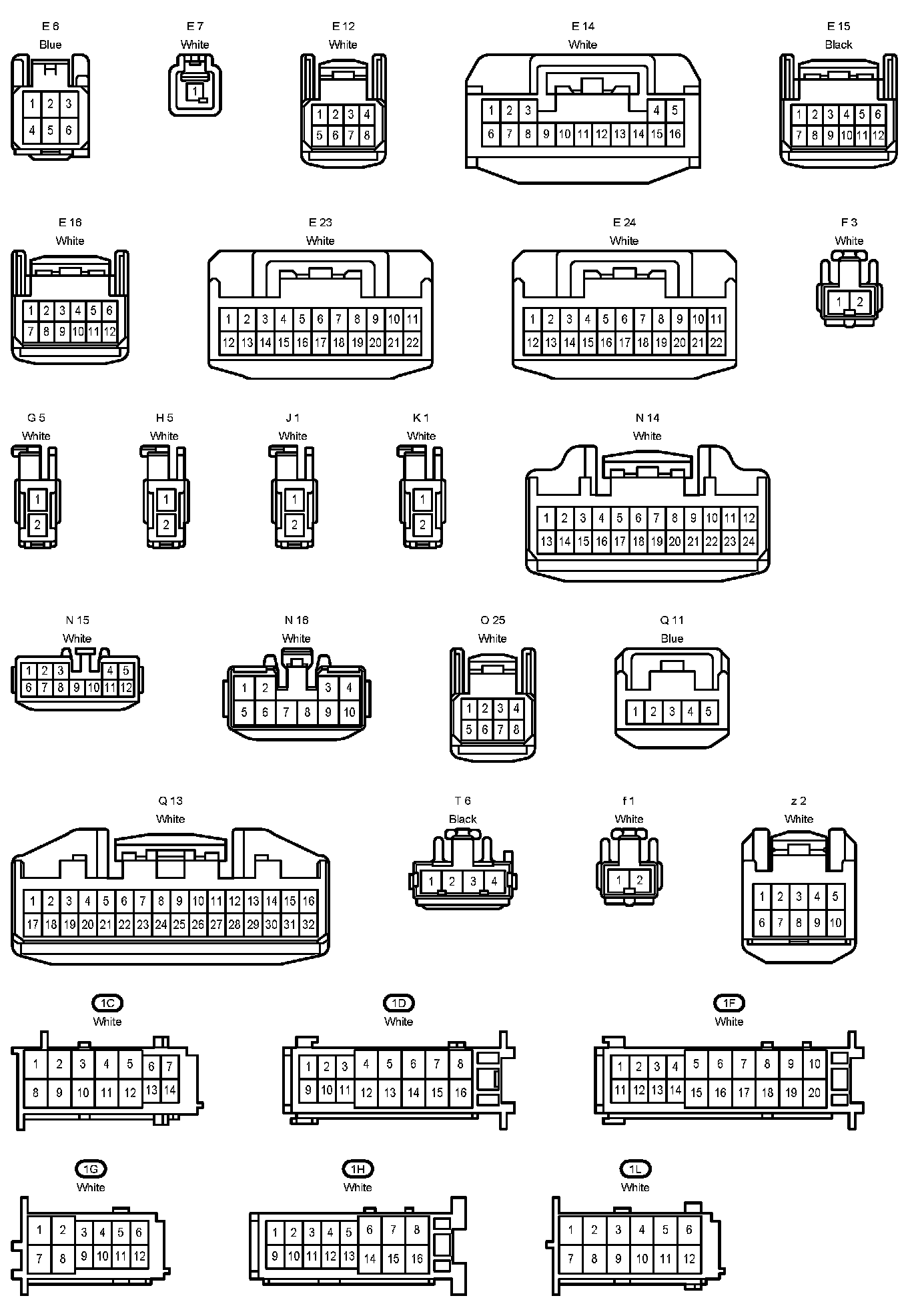

E6 - 1L:

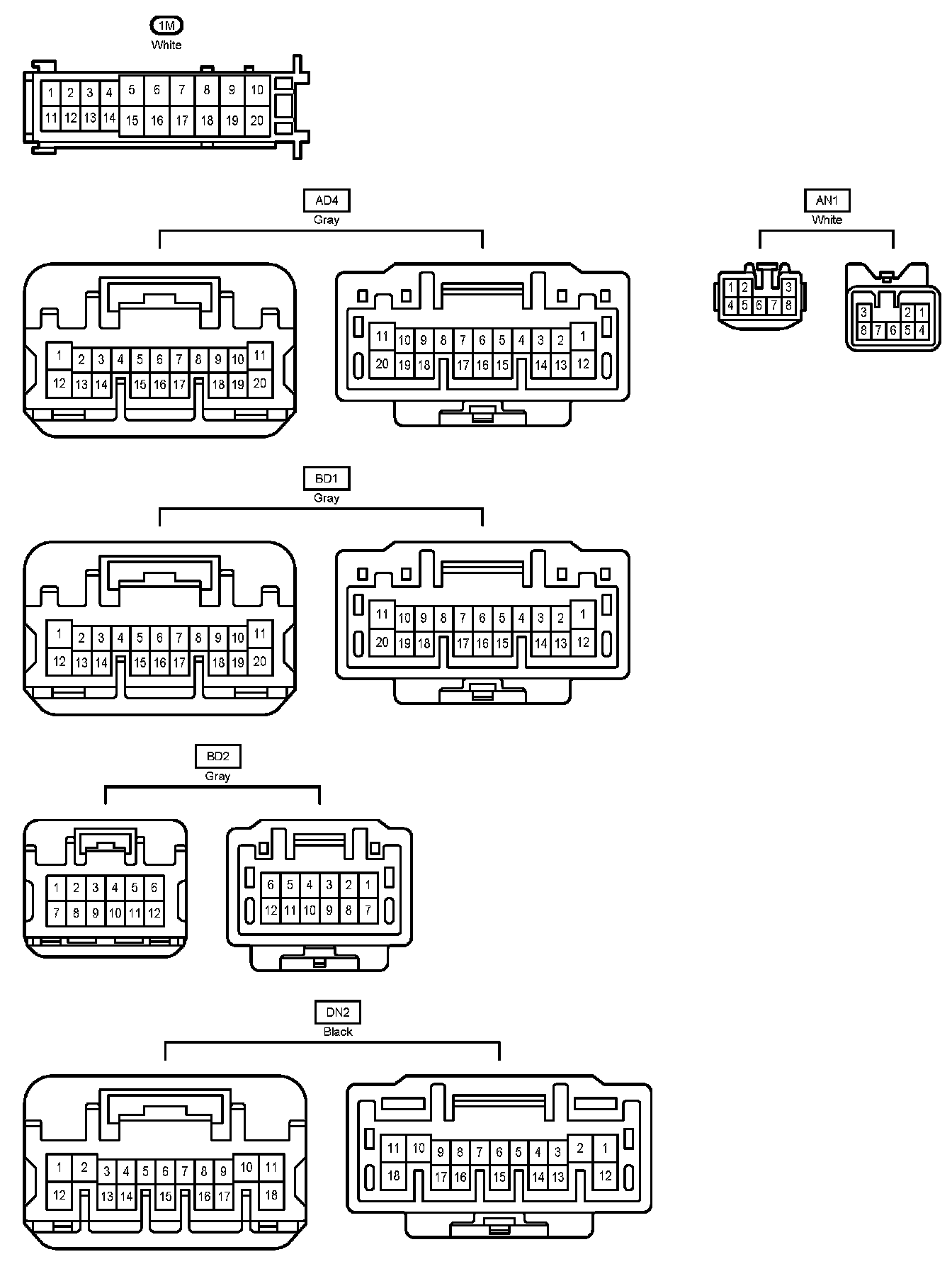

1M - DN2:

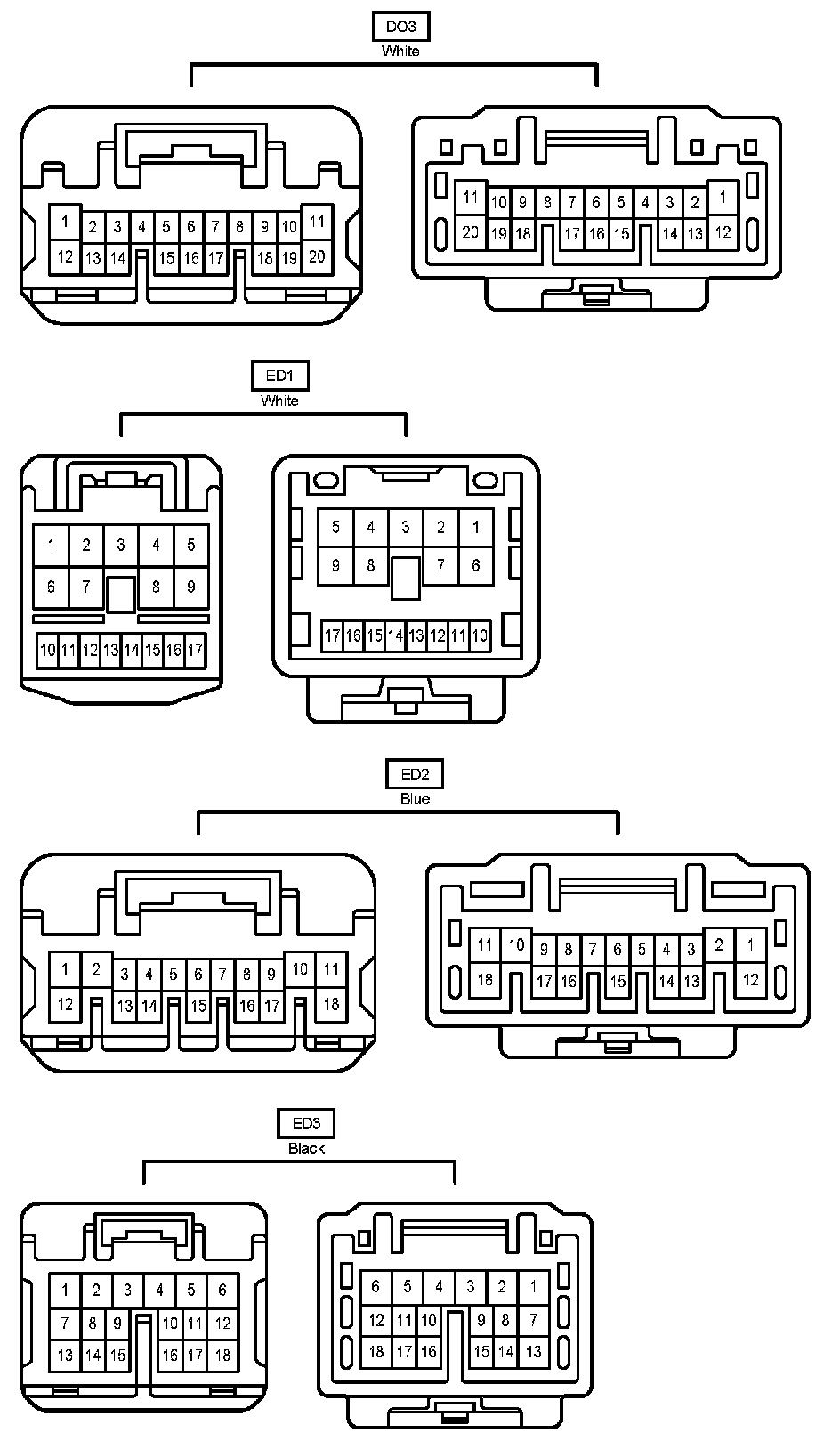

DO3 - ED3:

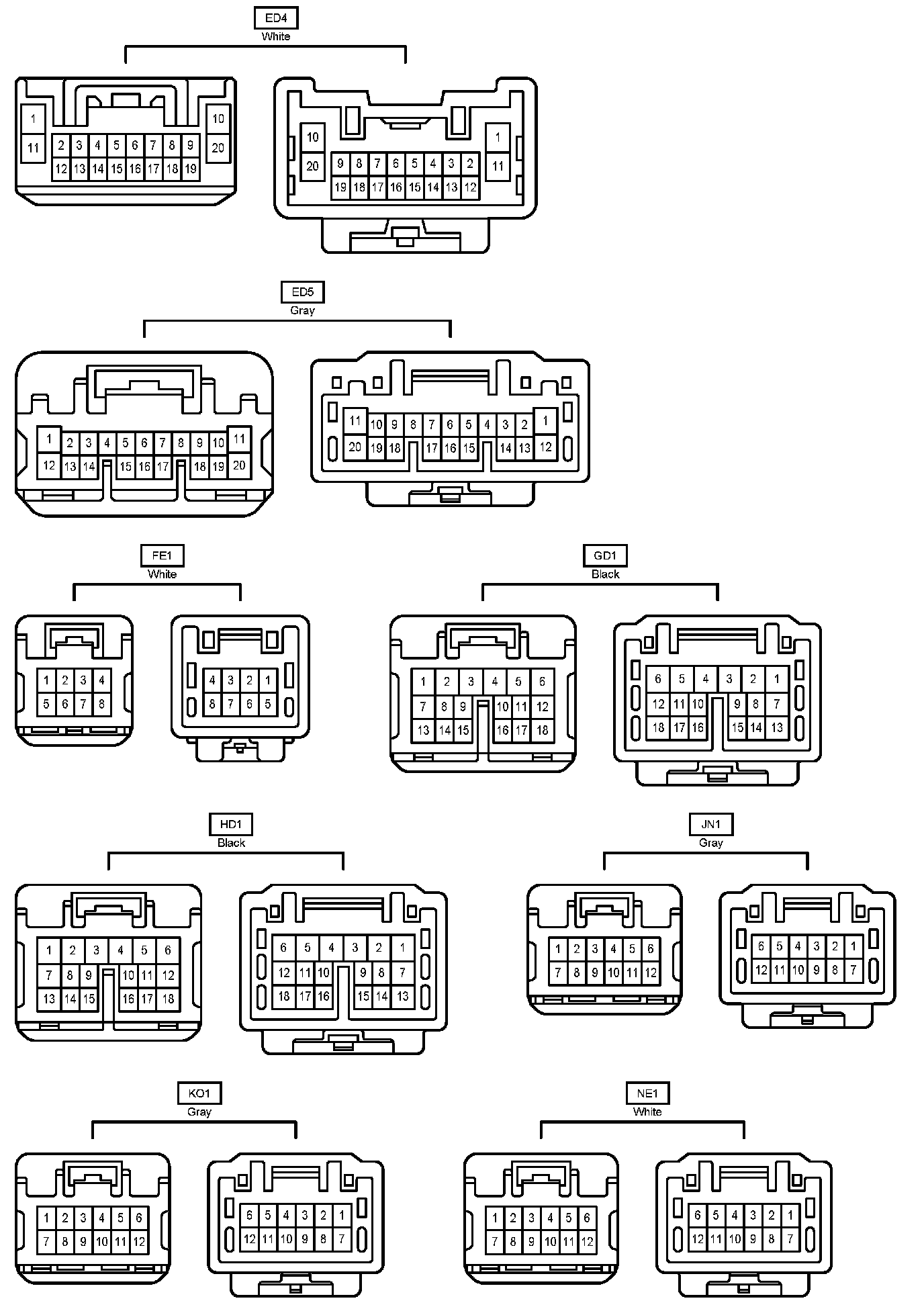

ED4 - NE1:

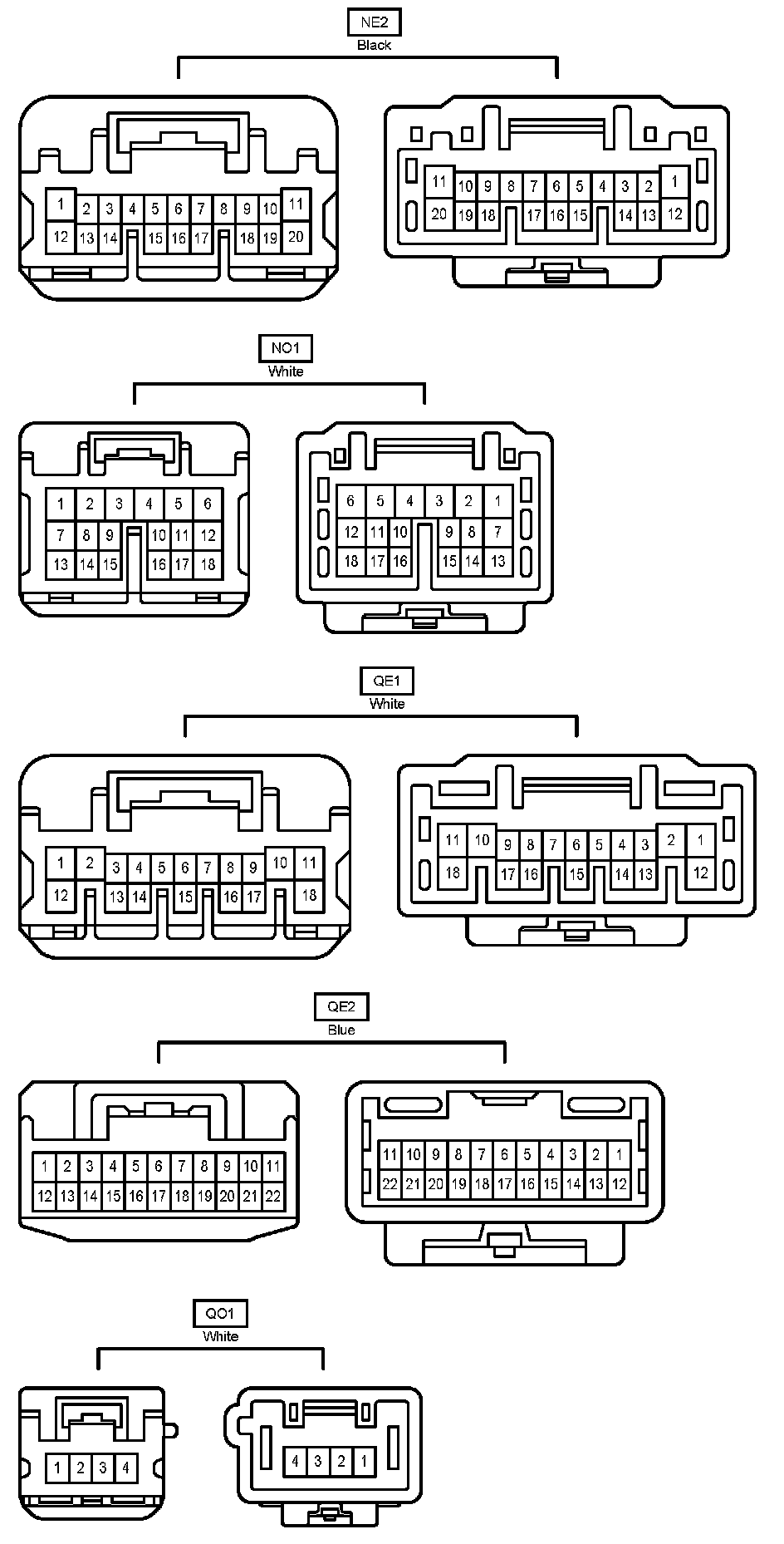

NE2 - QO1:

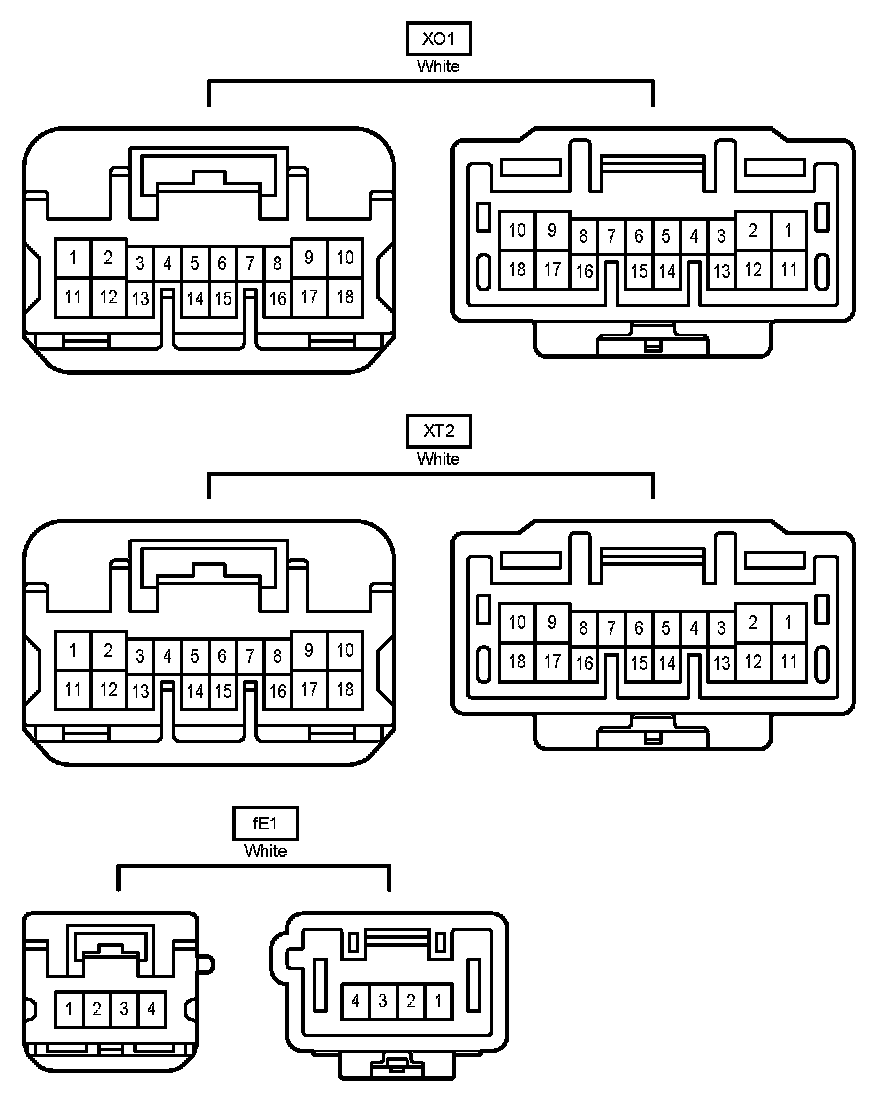

XO1 - fE1:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
