Automatic Light Control, Light Auto Turn Off System

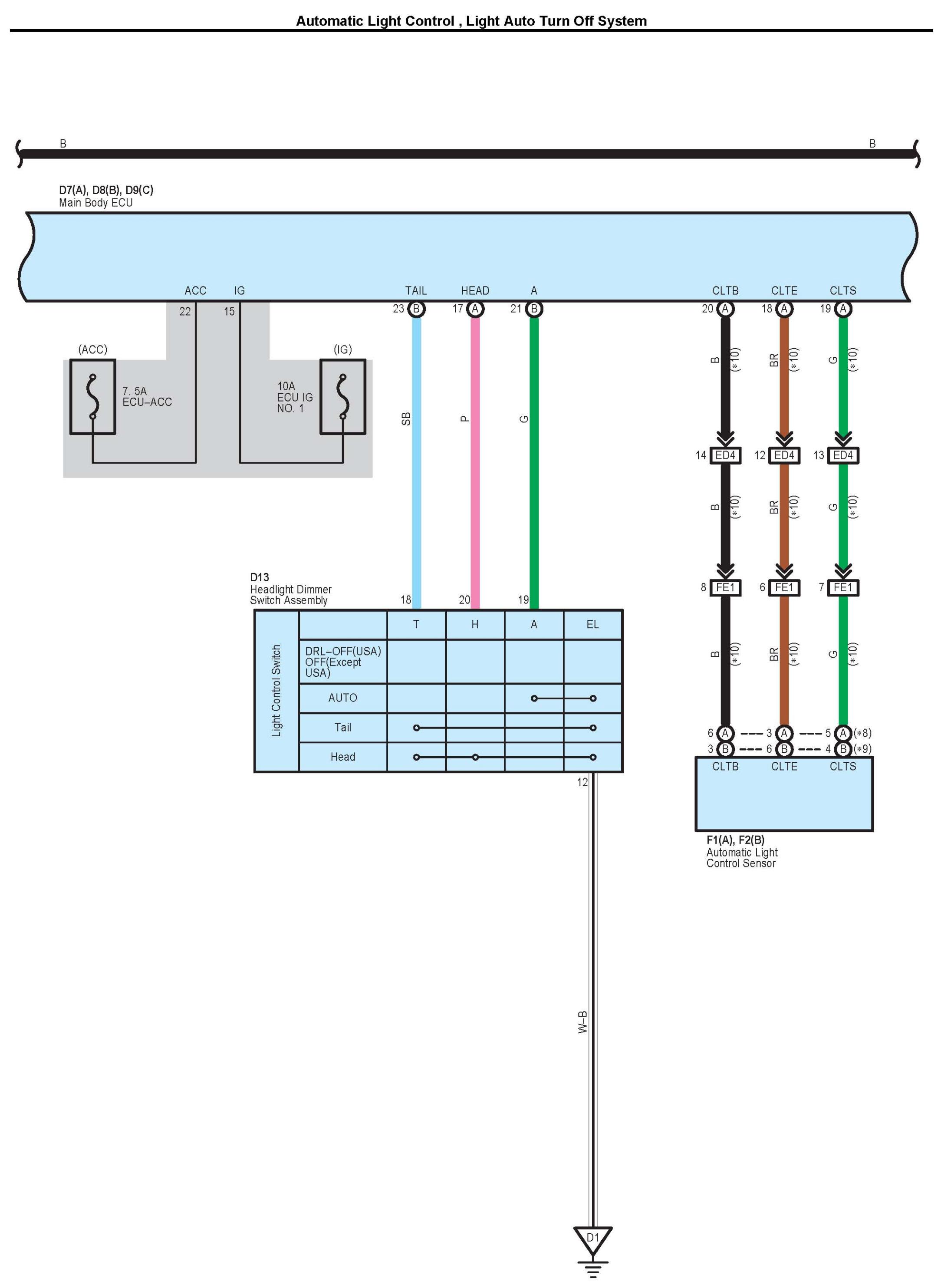

Automatic Light Control, Light Auto Turn Off System Part 1:

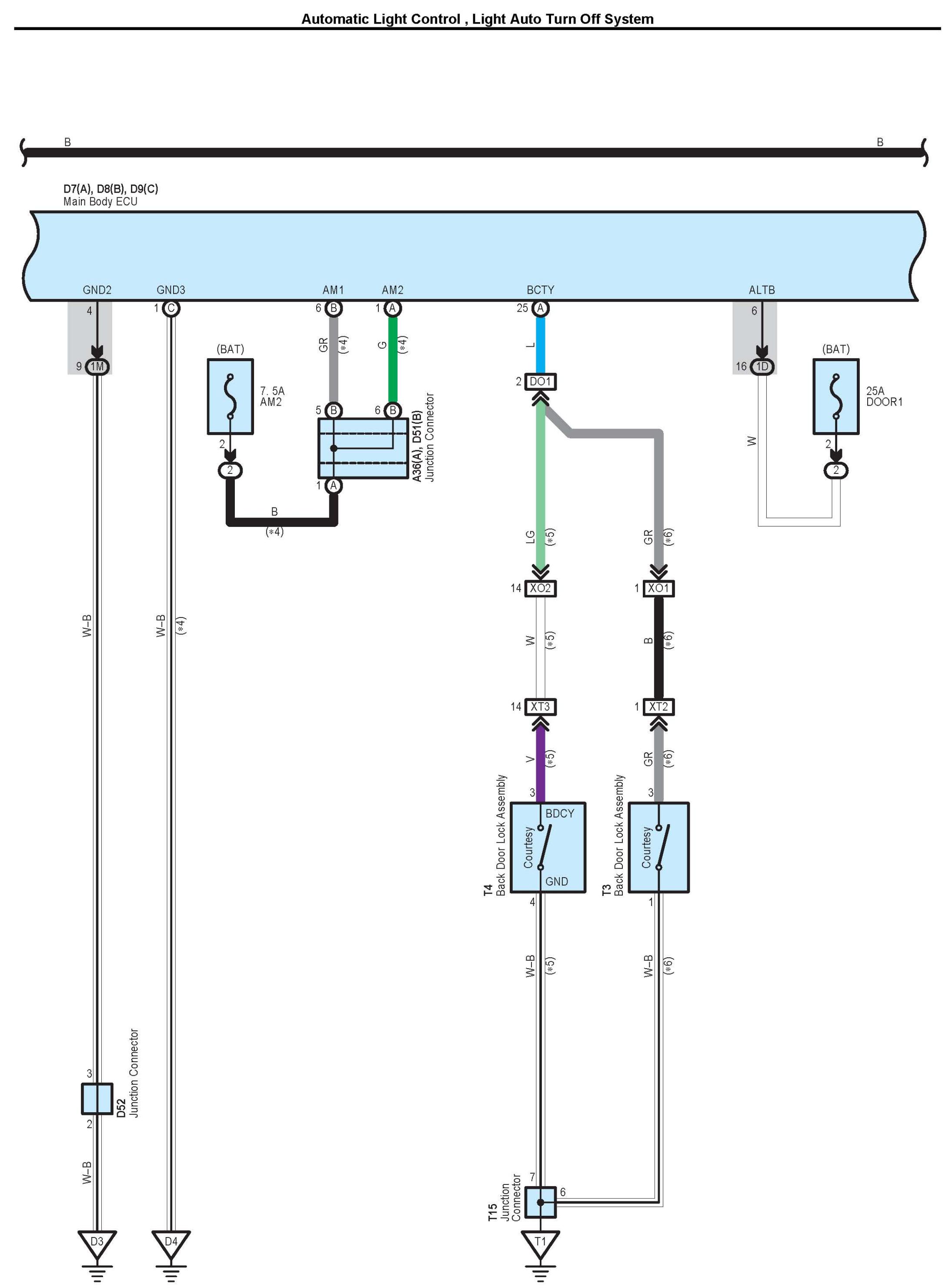

Automatic Light Control, Light Auto Turn Off System Part 2:

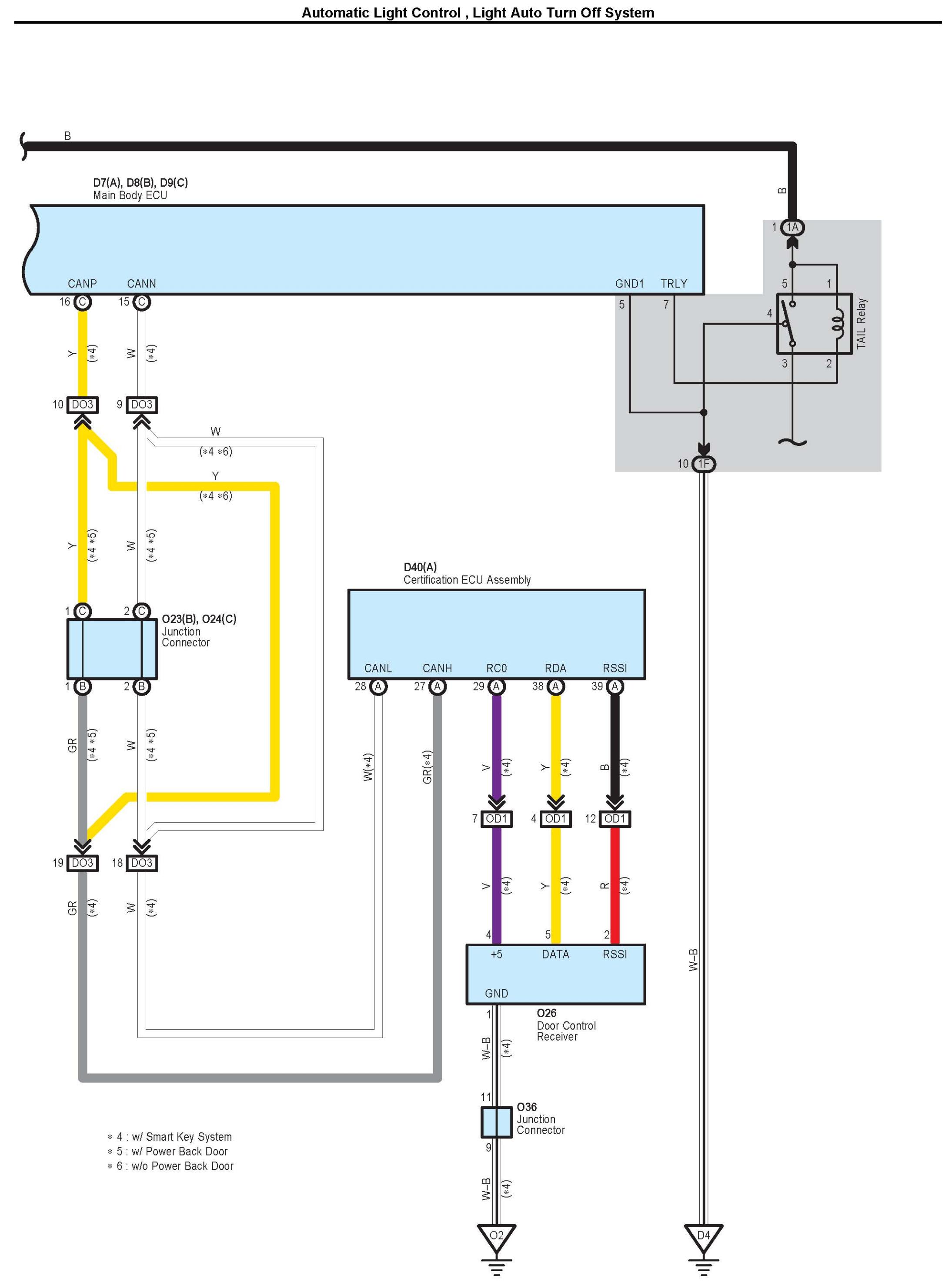

Automatic Light Control, Light Auto Turn Off System Part 3:

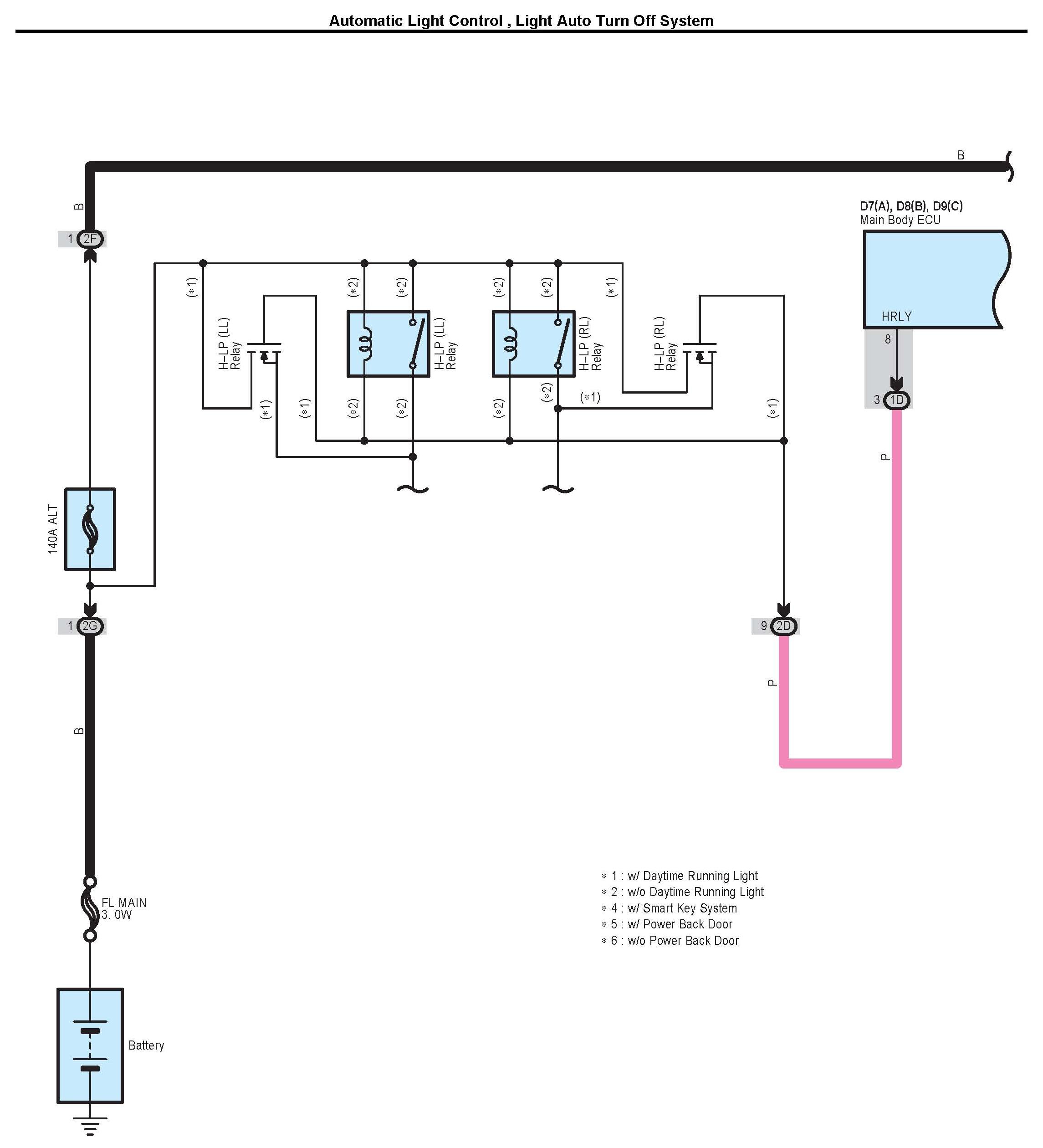

Automatic Light Control, Light Auto Turn Off System Part 4:

Automatic Light Control, Light Auto Turn Off System Part 5:

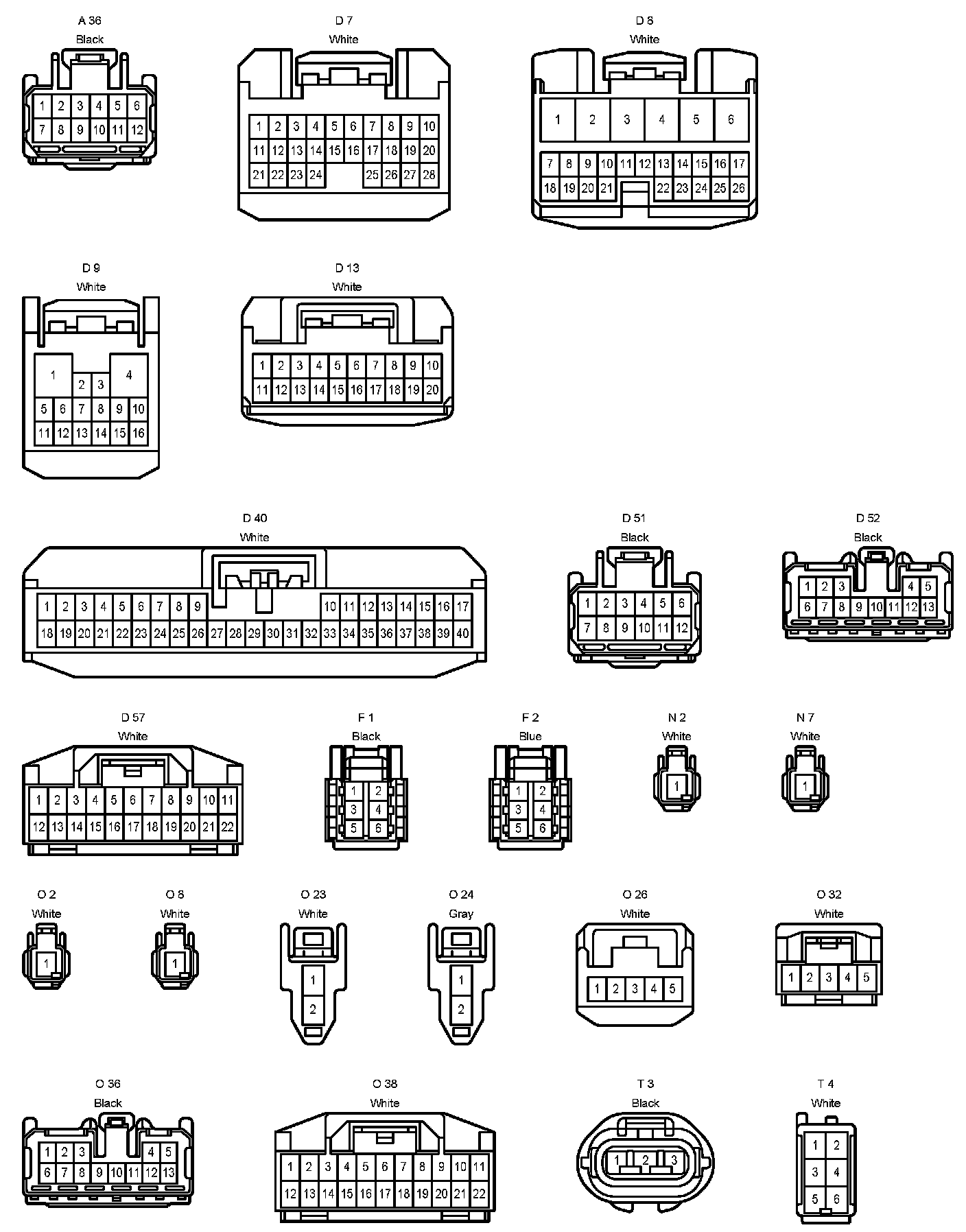

A36 - T4:

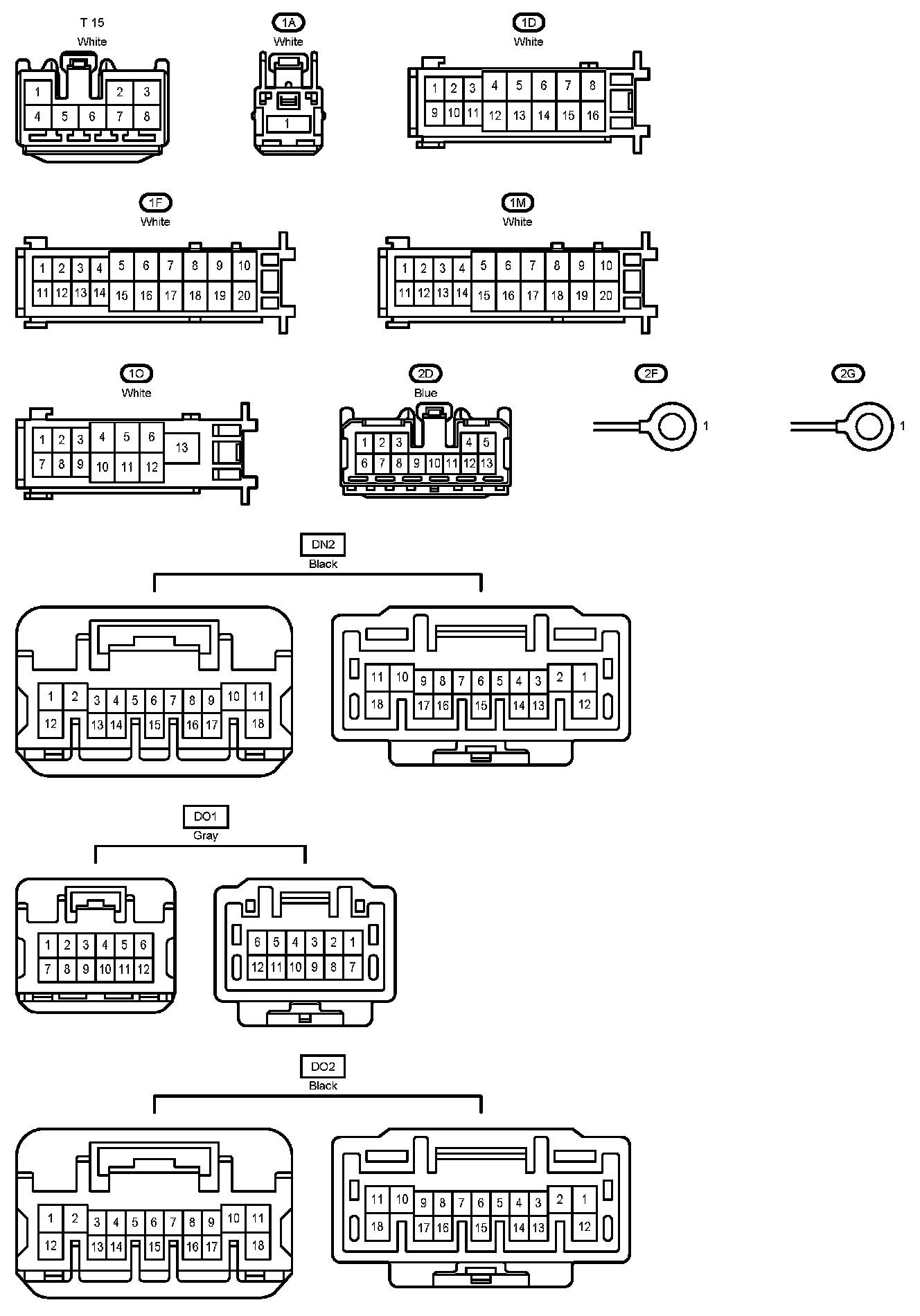

T15 - DO2:

DO3 - XO2:

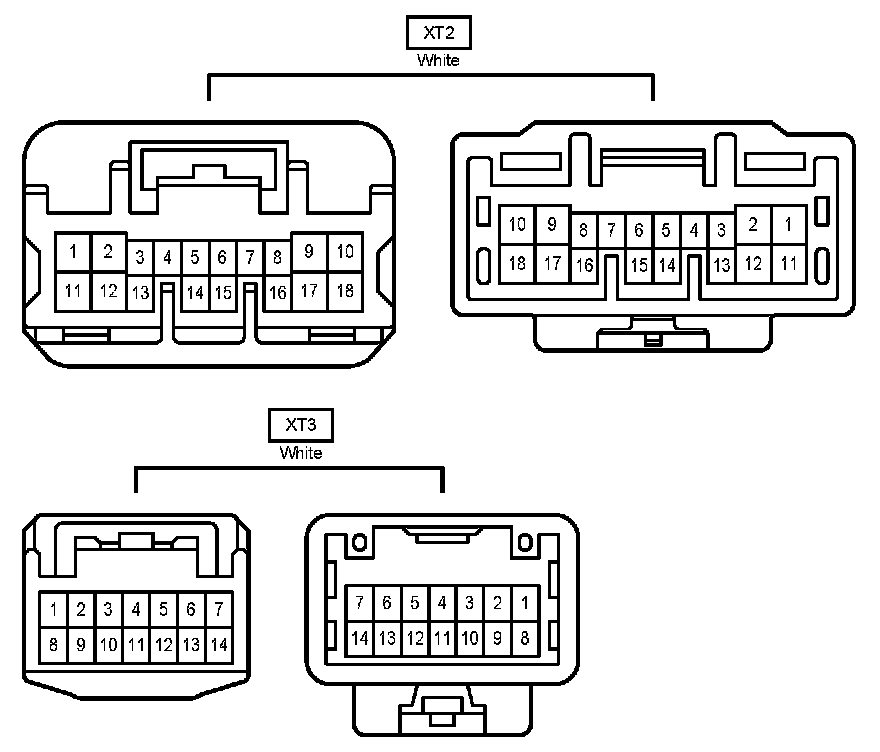

XT2 - XT3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
