e2 (Front Passenger Side Squib Circuit)
e2 (Front Passenger Side Squib Circuit)

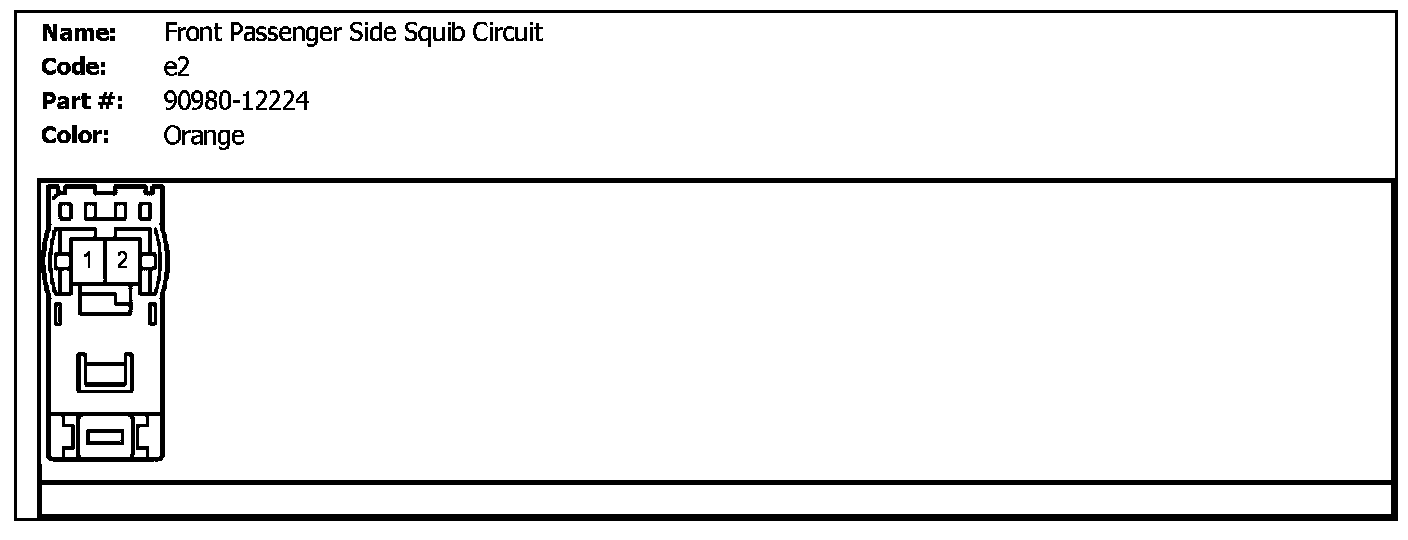

e2 (Front Passenger Side Squib Circuit):
