Toyota Truck
>>
2008
>>
Highlander 2WD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Motor
Wiper Motor

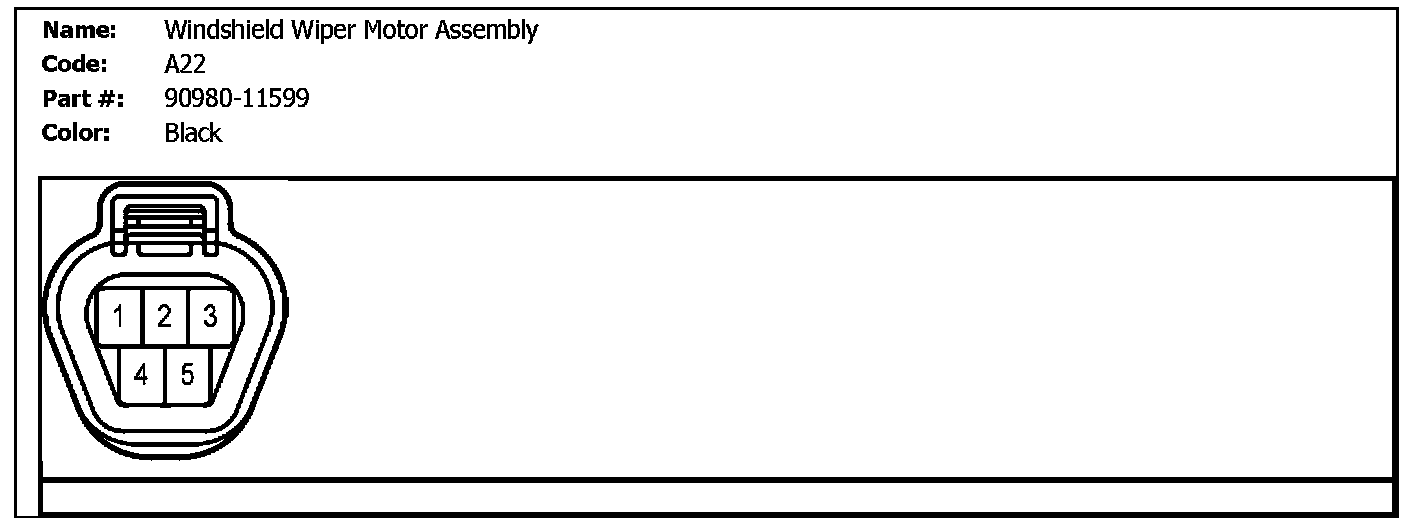

A22 (Windshield Wiper Motor Assembly):

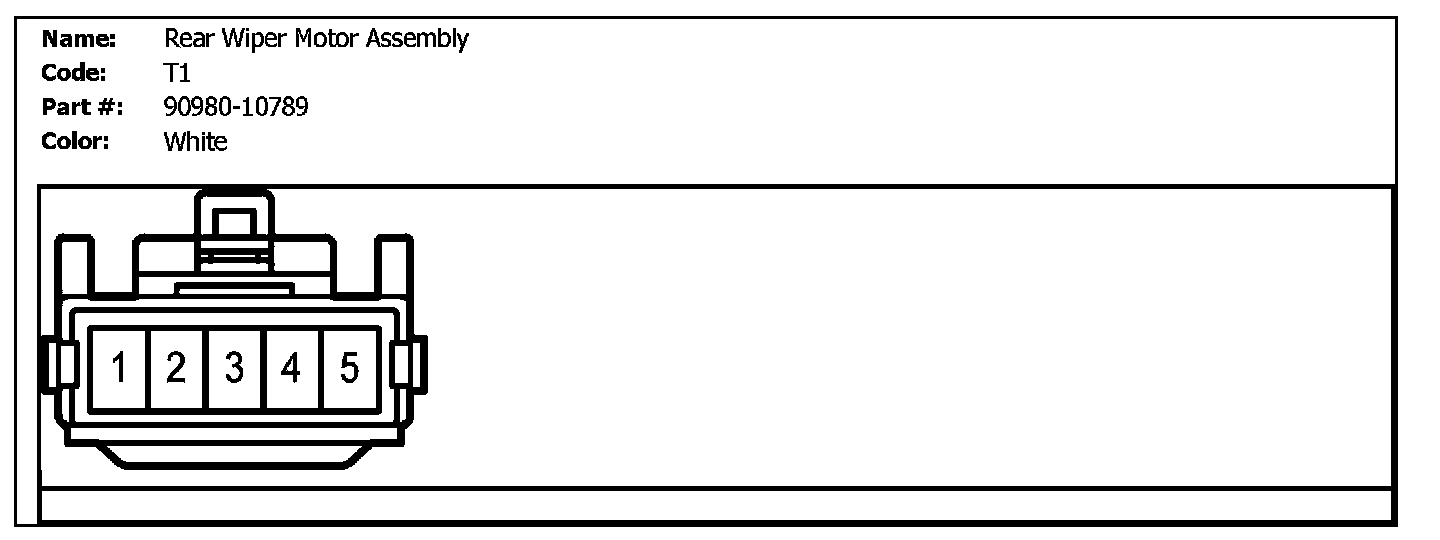

T1 (Rear Wiper Motor Assembly):
