Toyota Truck
>>
2008
>>
Highlander 2WD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate
>>
Trunk / Liftgate Motor
Trunk / Liftgate Motor

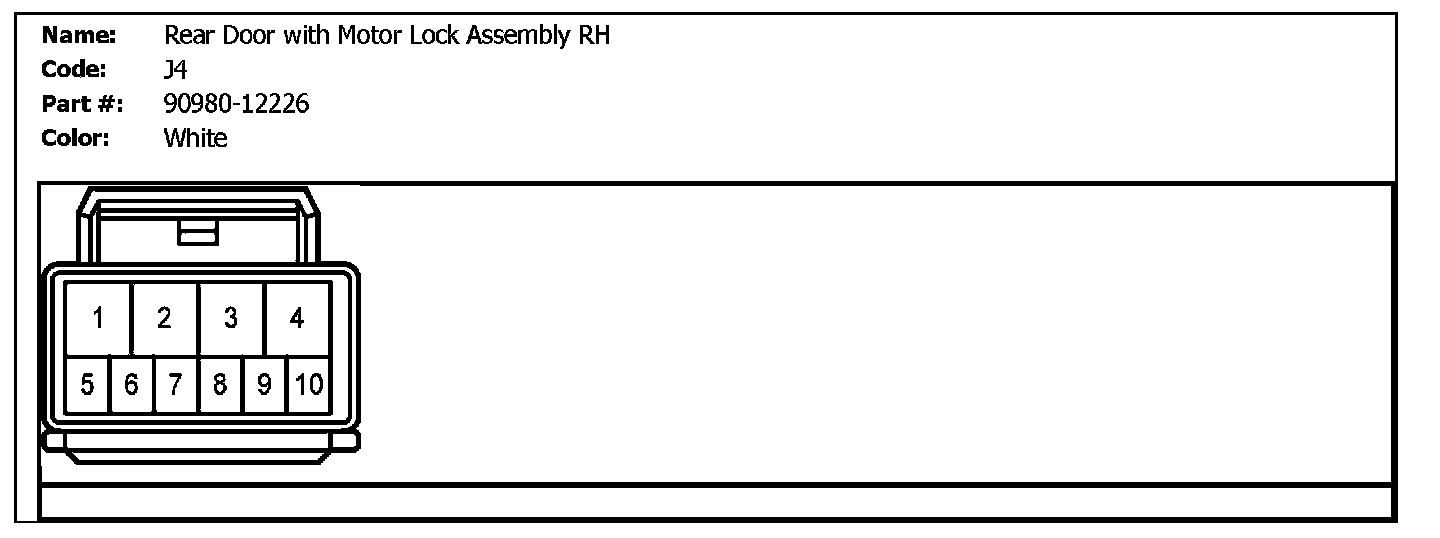

J4 (Rear Door With Motor Lock Assembly RH):

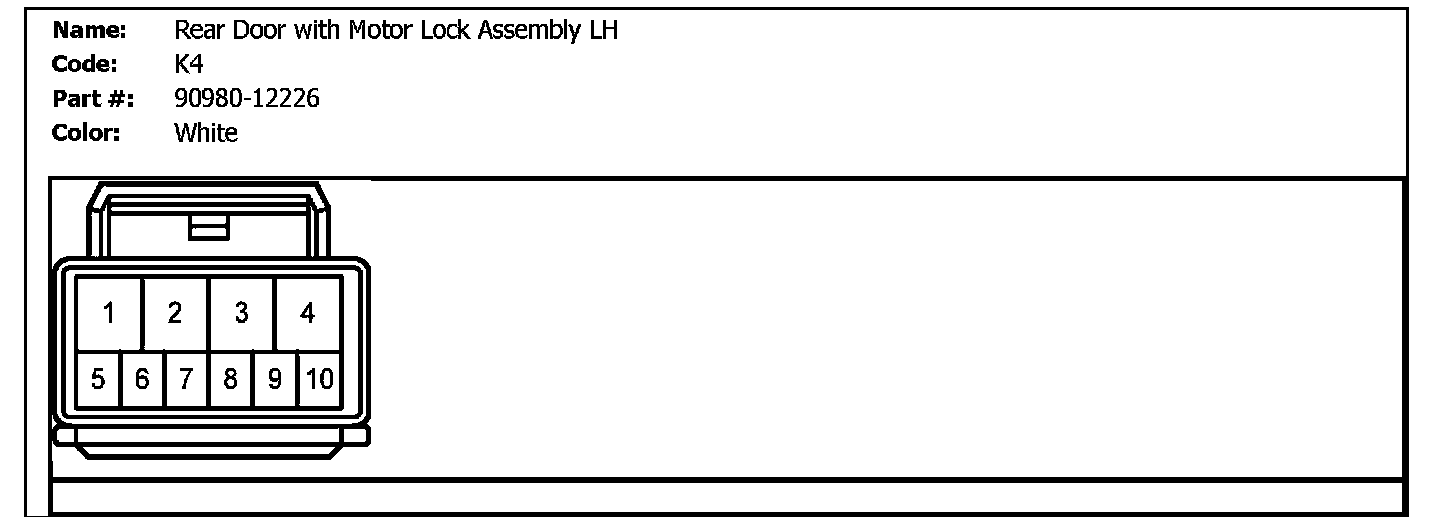

K4 (Rear Door With Motor Lock Assembly LH):

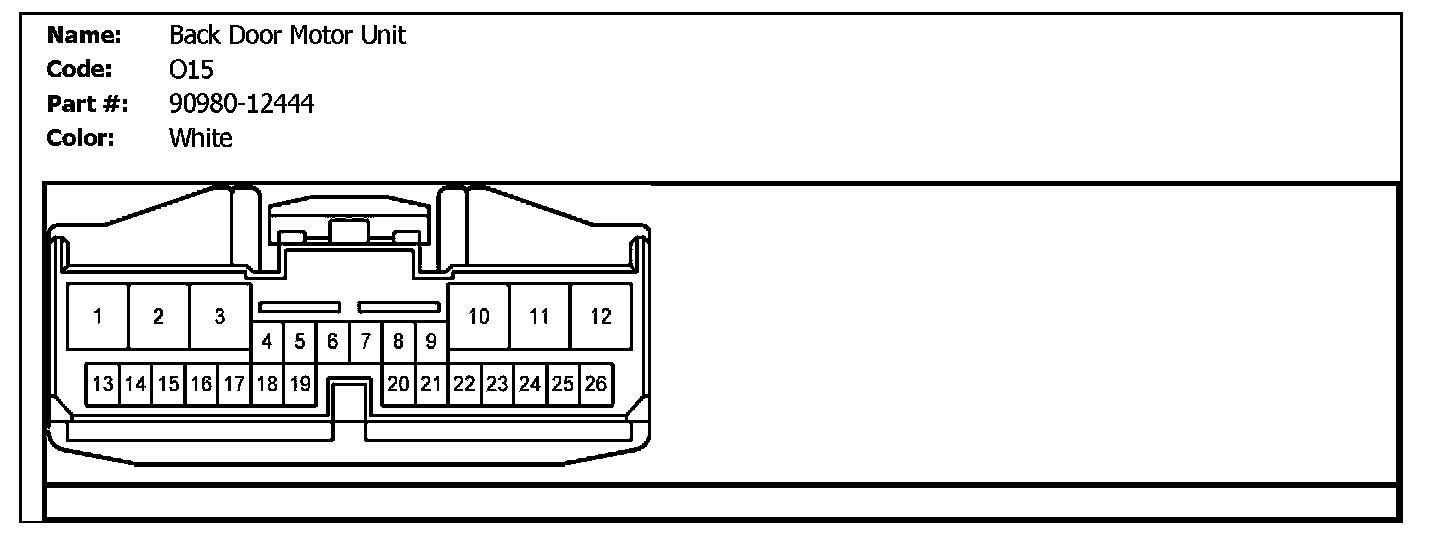

O15 (Back Door Motor Unit):
