Power Seat Switch
Power Seat Switch

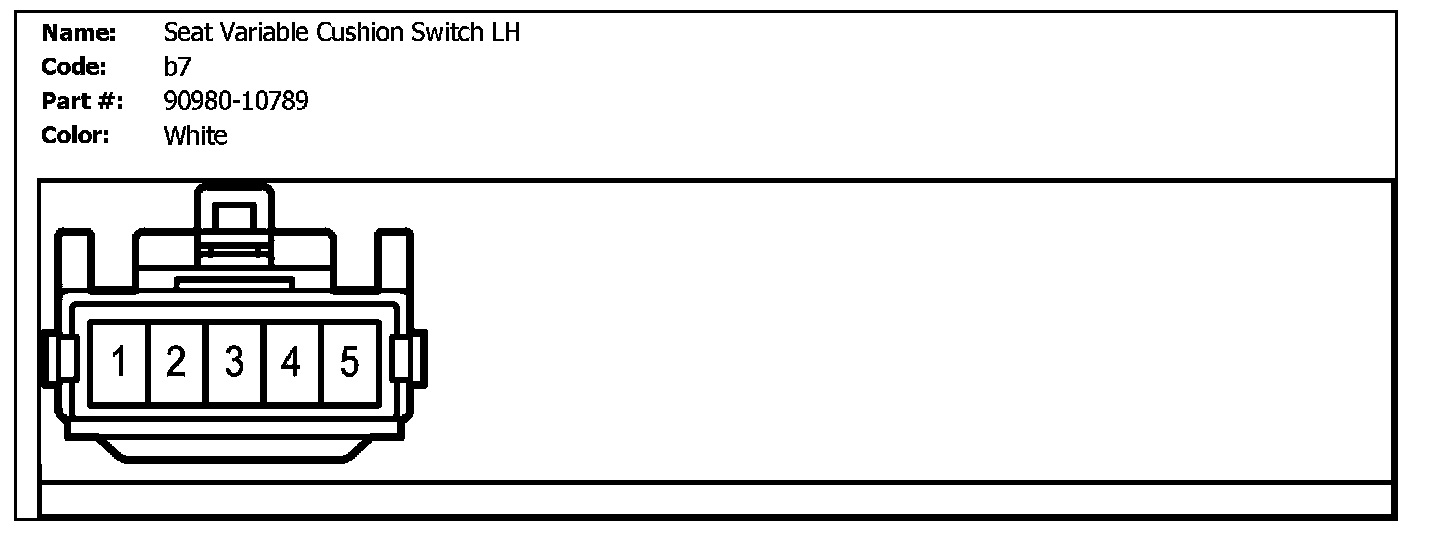

b7 (Seat Variable Cushion Switch LH):

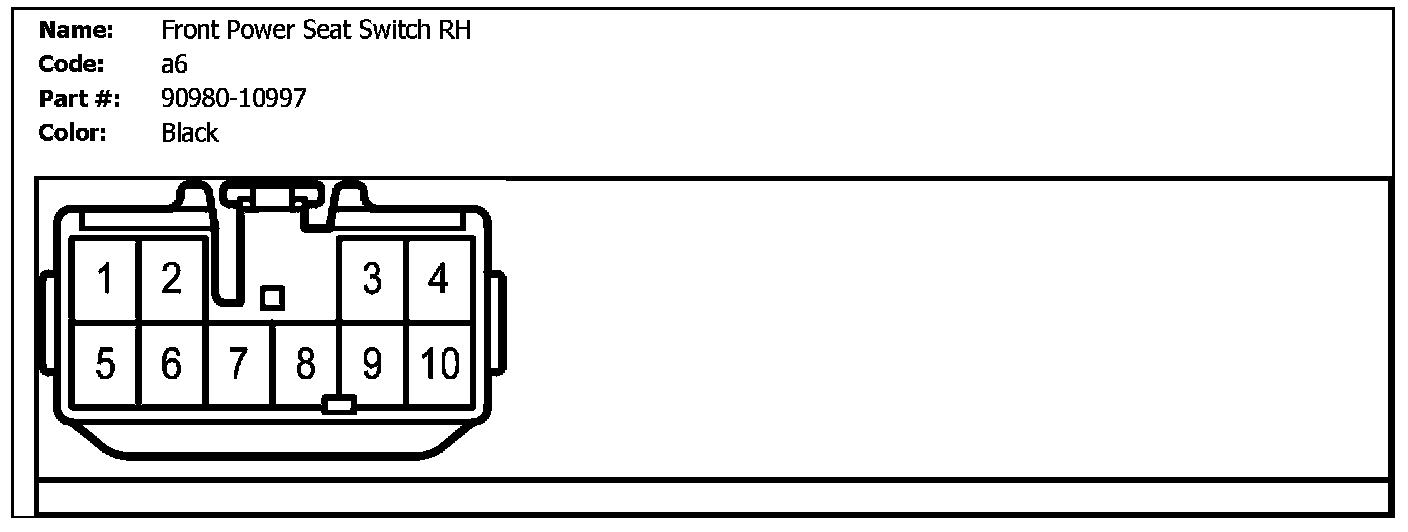

a6 (Front Power Seat Switch RH):

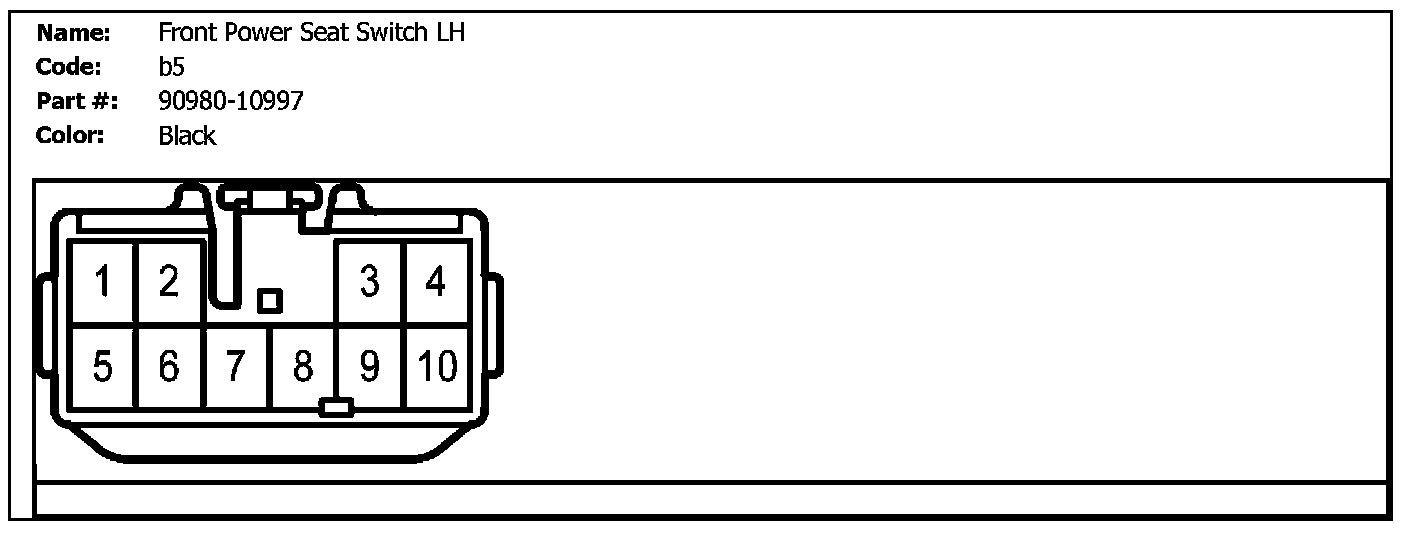

b5 (Front Power Seat Switch LH):
