Multiple Junction Connector
>>
Rear Console Box Wire
Rear Console Box Wire

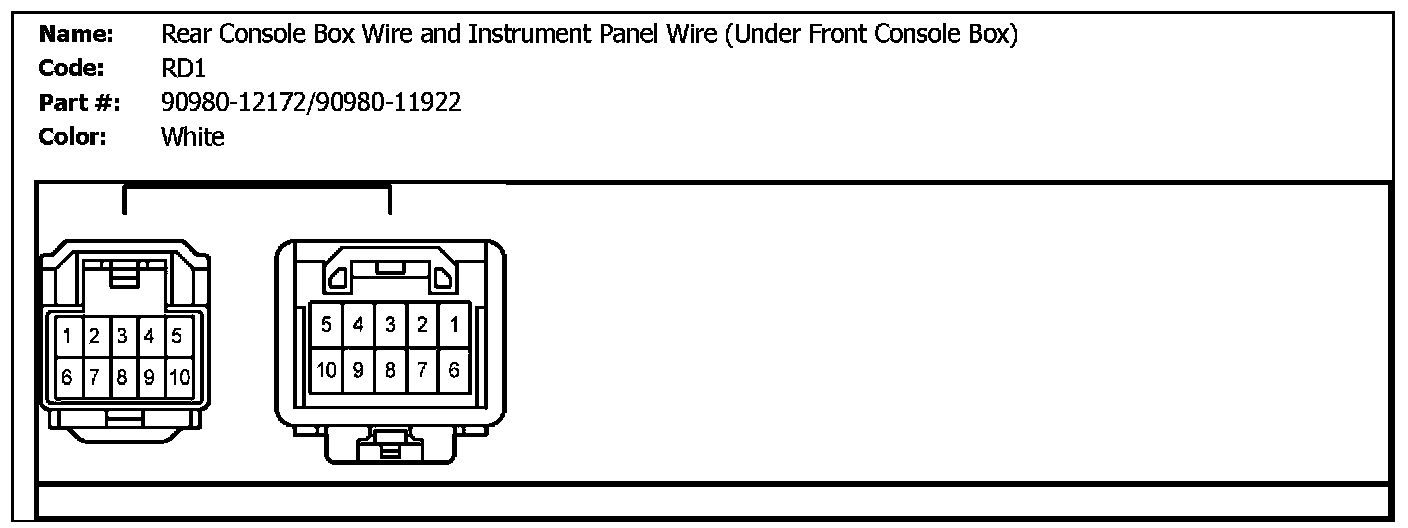

RD1 (Rear Console Box Wire and Instrument Panel Wire (Under Front Console Box)):
