Home
>>
Toyota Truck
>>
2008
>>
Highlander 2WD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heated Glass Element
Heated Glass Element

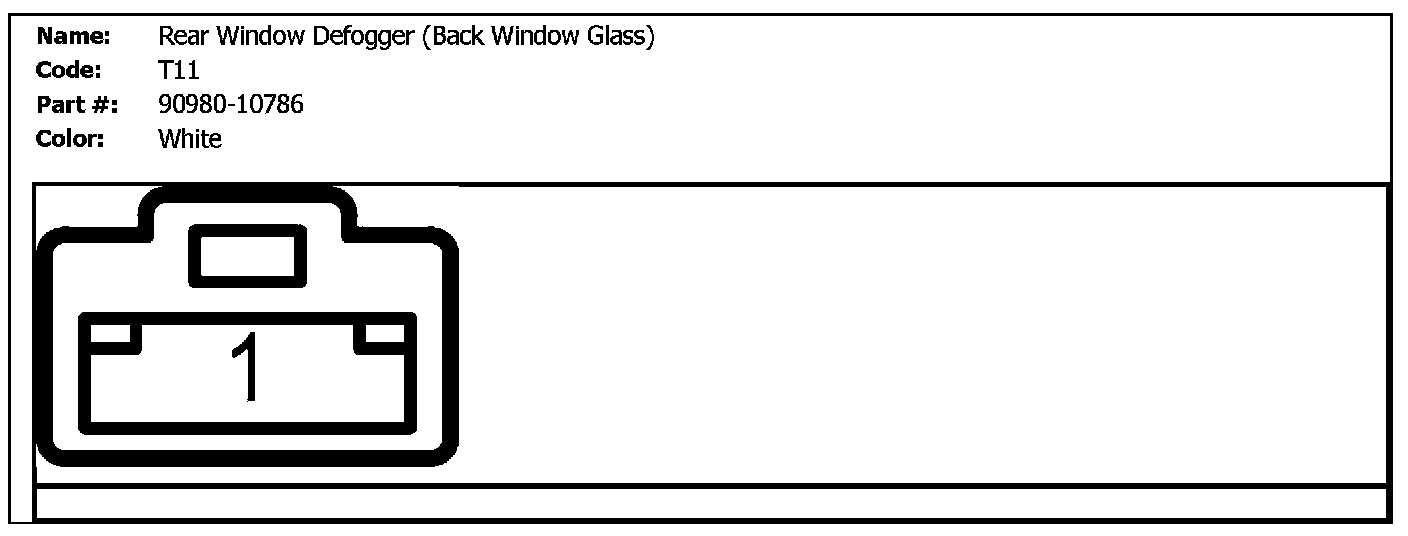

T11 (Rear Window Defogger (Back Window Glass)):

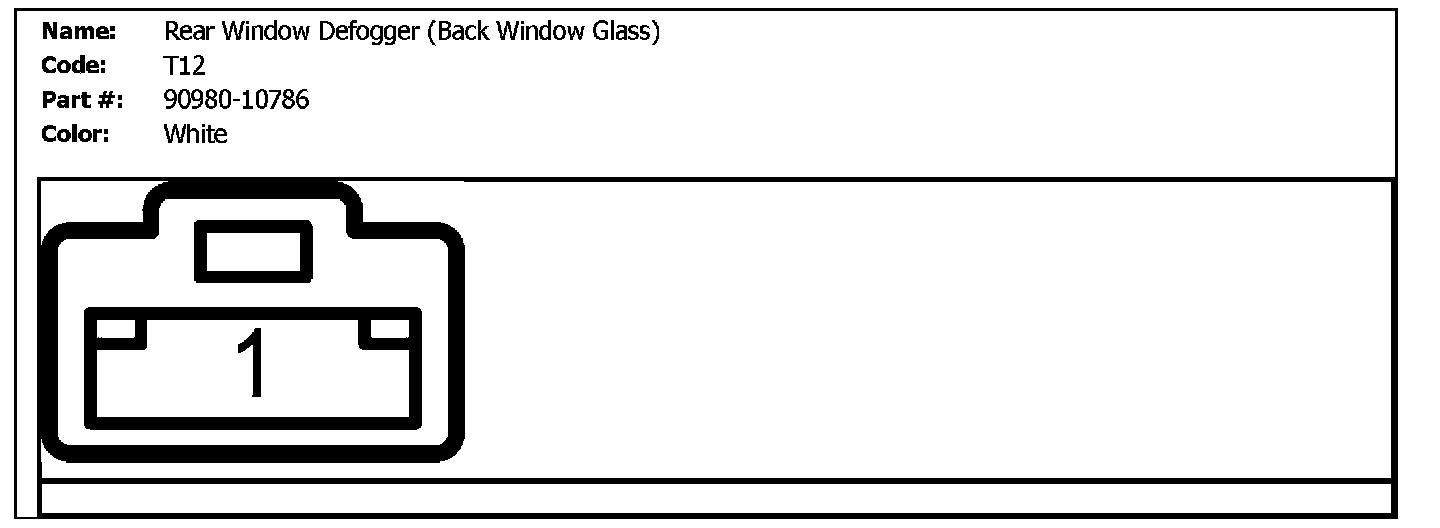

T12 (Rear Window Defogger (Back Window Glass)):

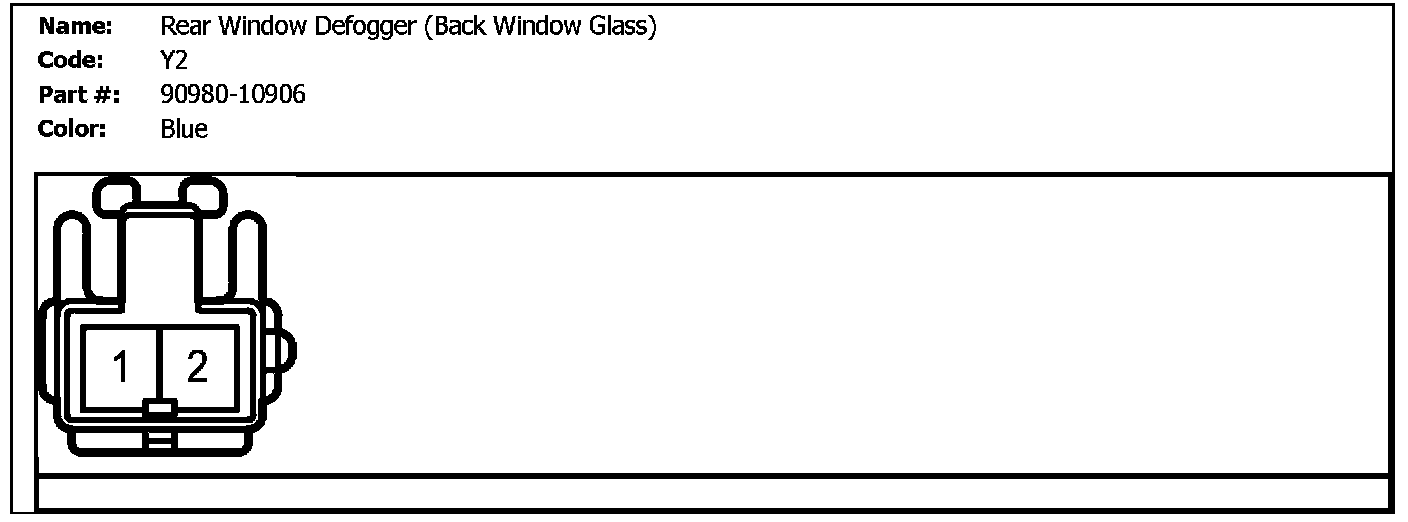

Y2 (Rear Window Defogger (Back Window Glass)):
