A12 (Front Speed Sensor LH)
A12 (Front Speed Sensor LH)

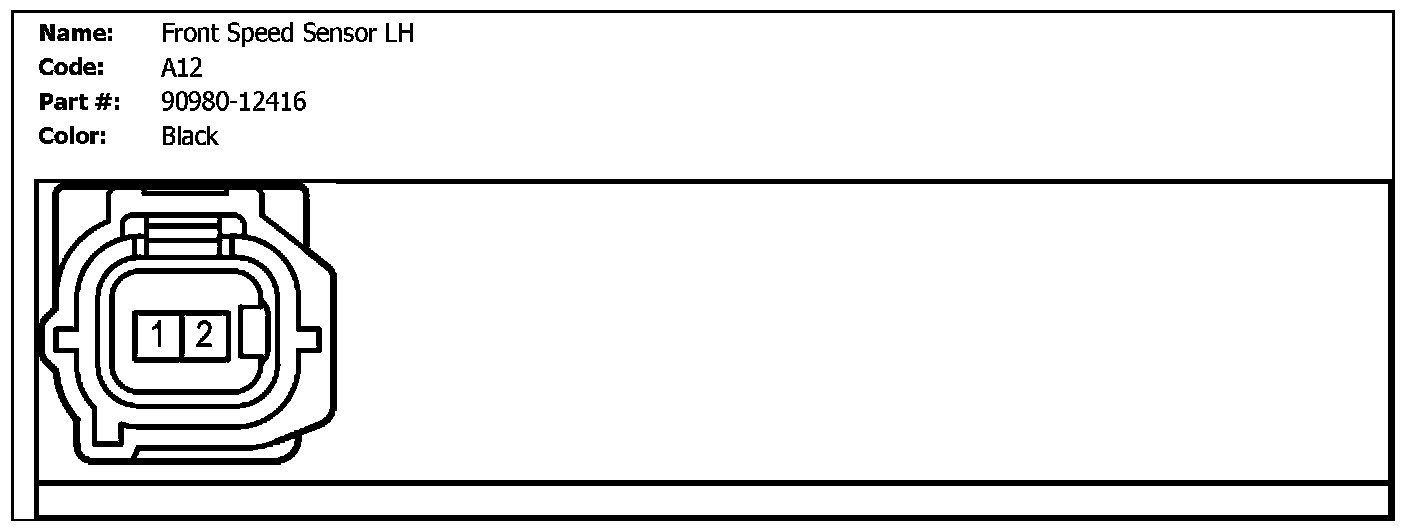

A12 (Front Speed Sensor LH):

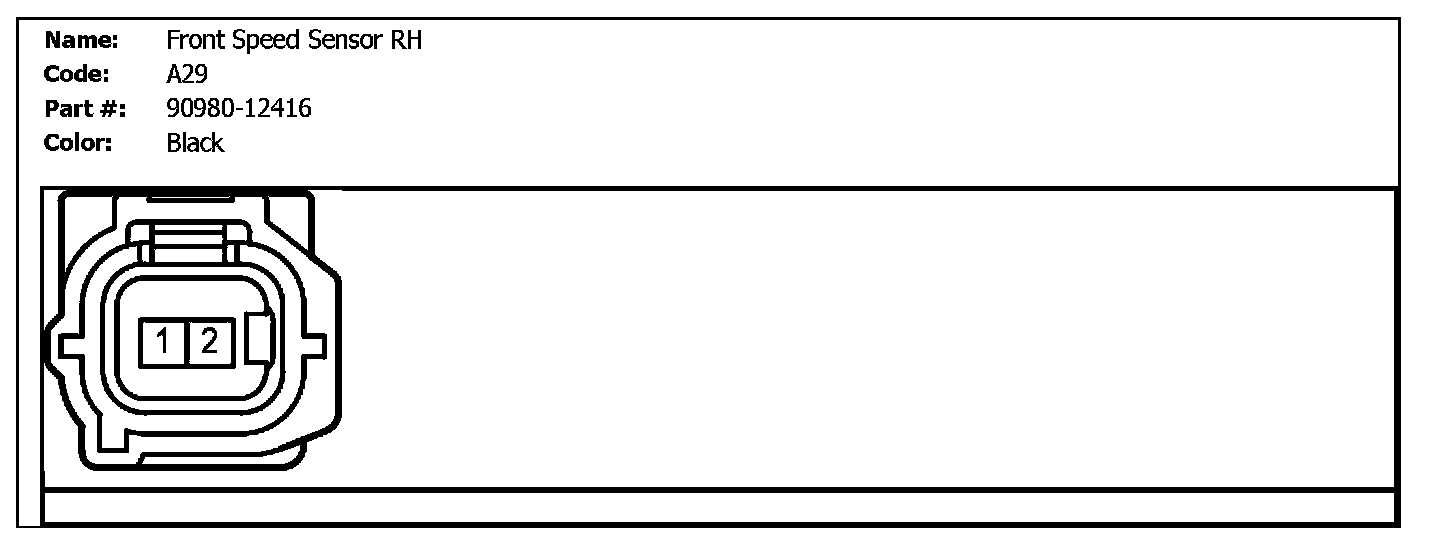

A29 (Front Speed Sensor RH):
N20 (Rear Speed Sensor RH):

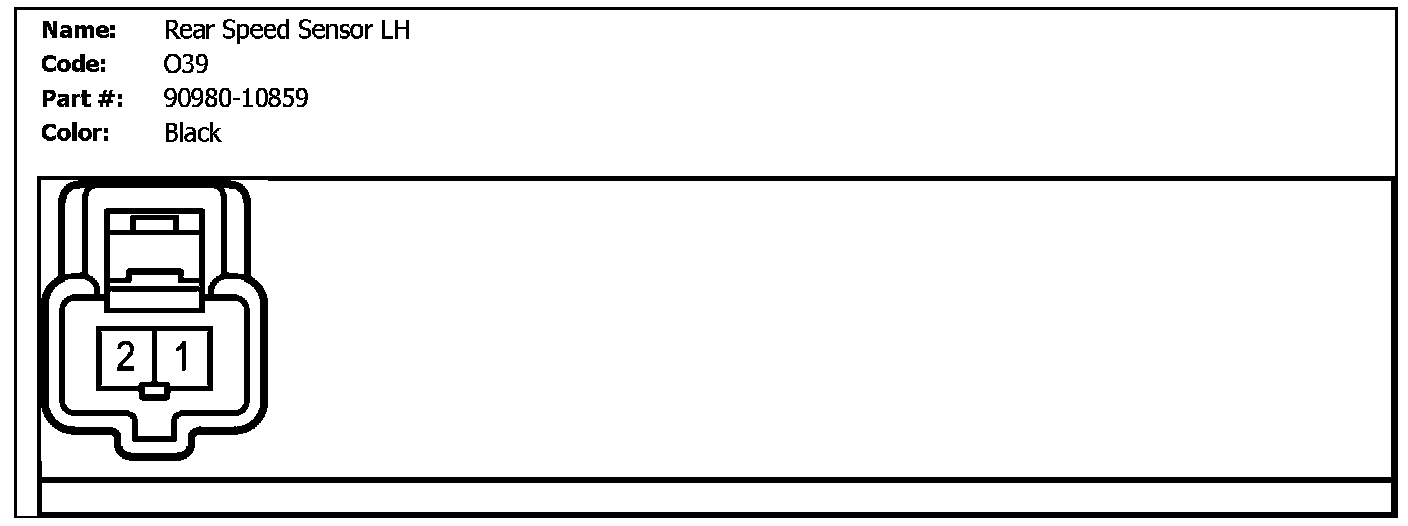

O39 (Rear Speed Sensor LH):

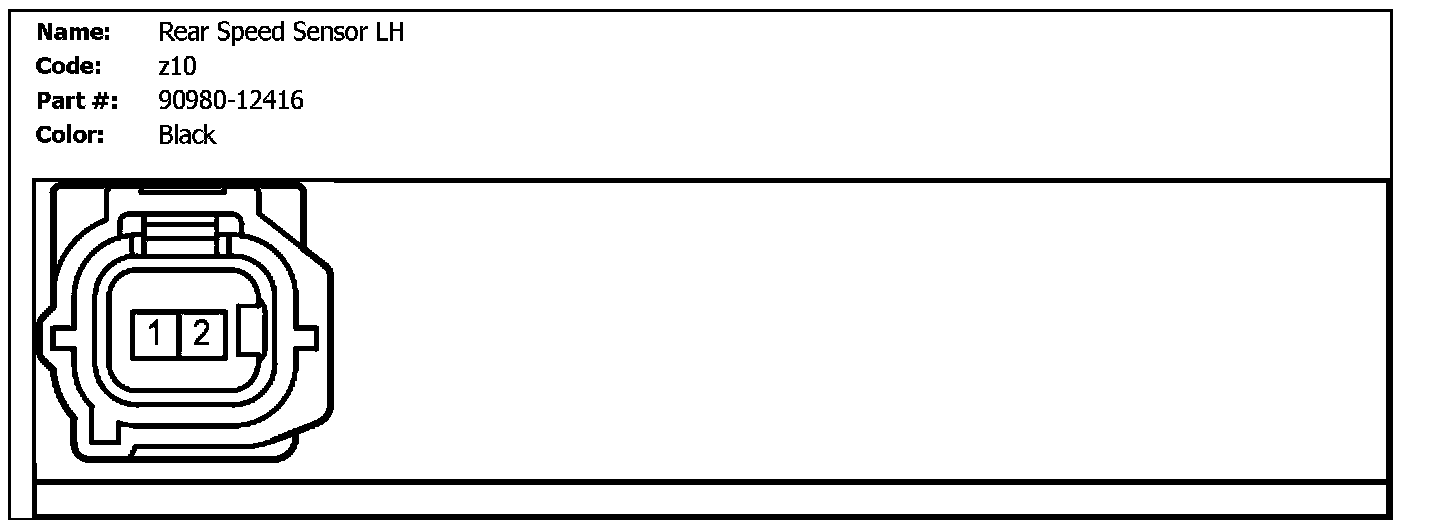

Z10 (Rear Speed Sensor LH):

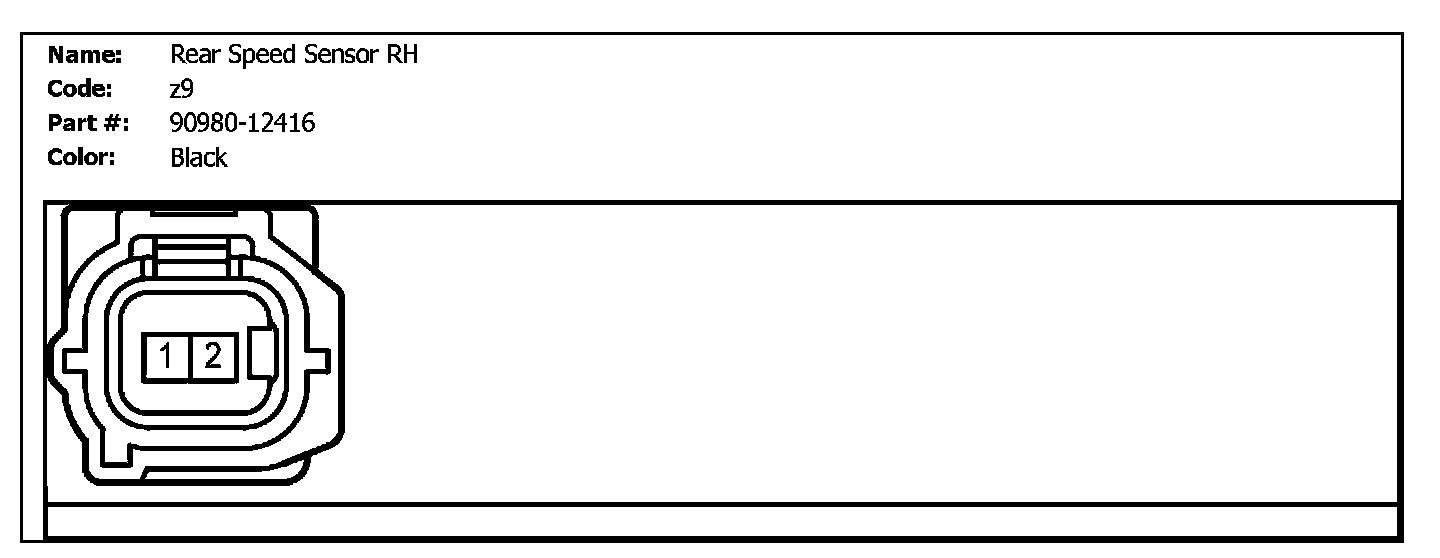

z9 (Rear Speed Sensor RH):
