Home
>>
Toyota Truck
>>
2008
>>
Highlander 2WD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

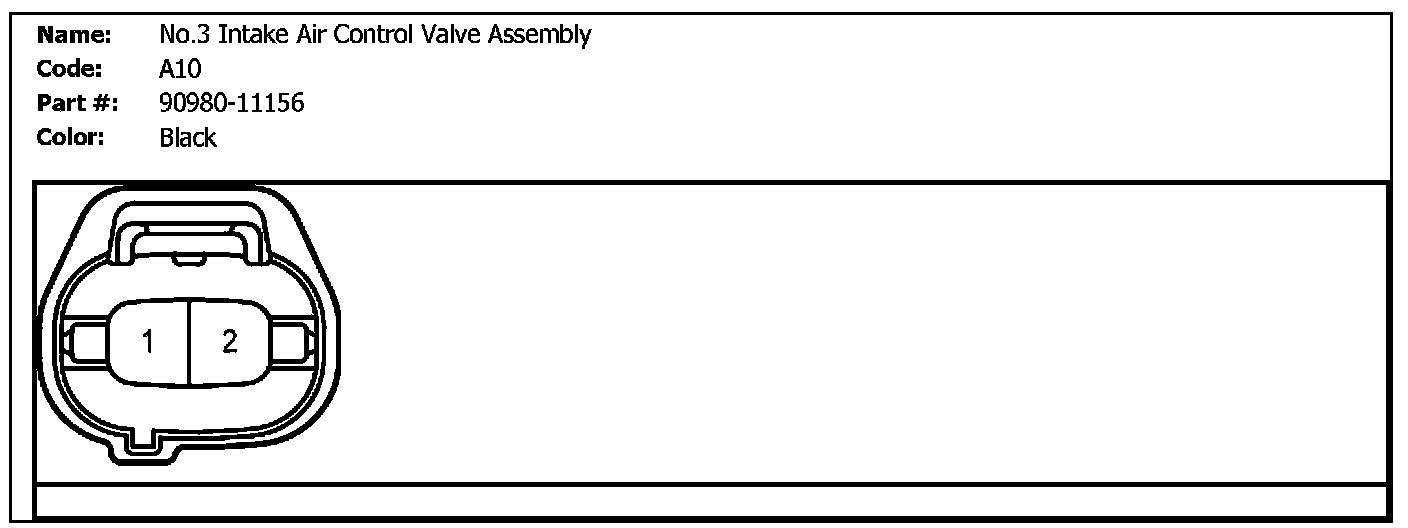

A10 (No.3 Intake Air Control Valve Assembly)
A10 (No.3 Intake Air Control Valve Assembly)
A10 (No.3 Intake Air Control Valve Assembly):
