Brakes and Traction Control: Testing and Inspection

BRAKE: BRAKE SYSTEM: PROBLEM SYMPTOMS TABLE

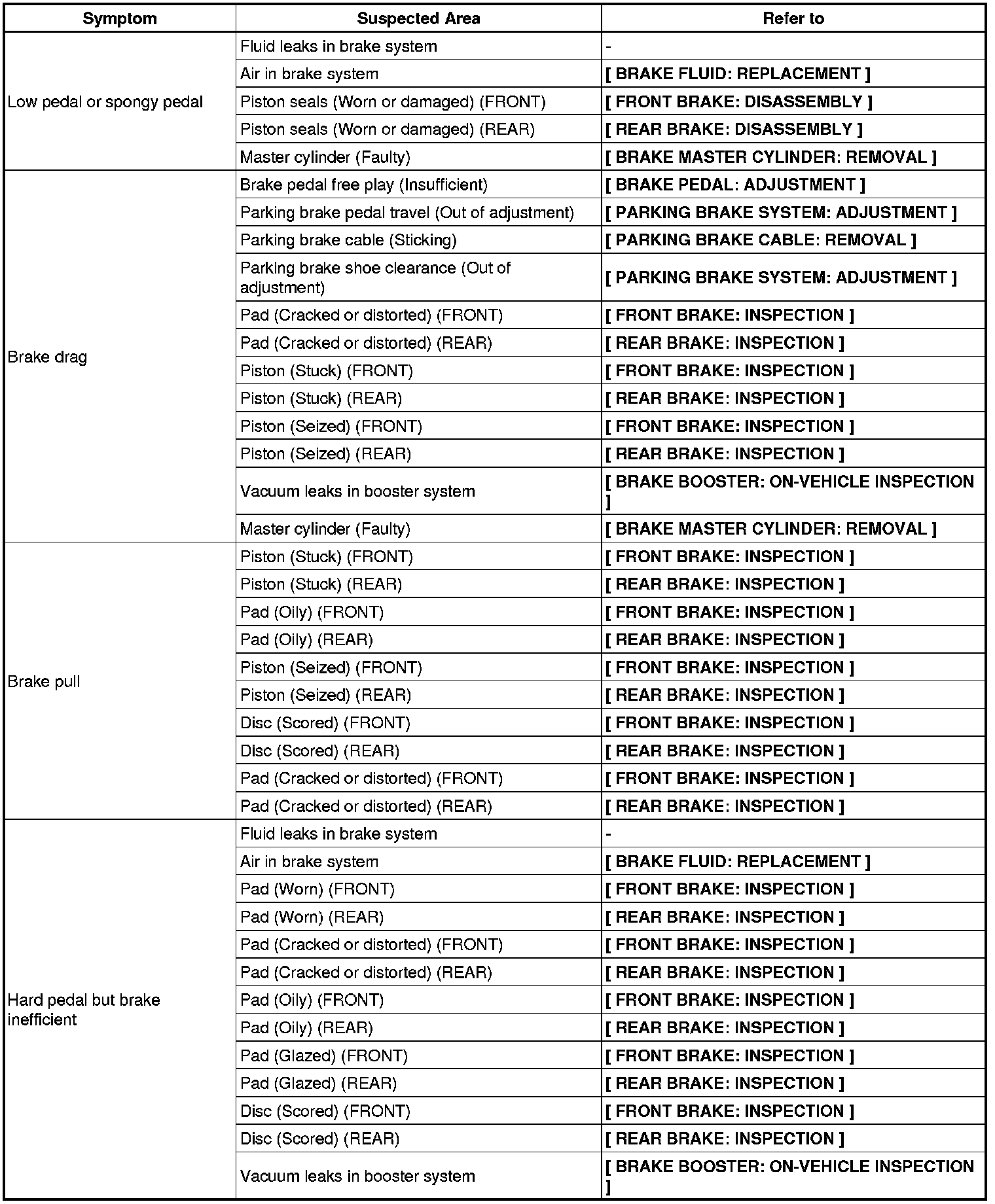

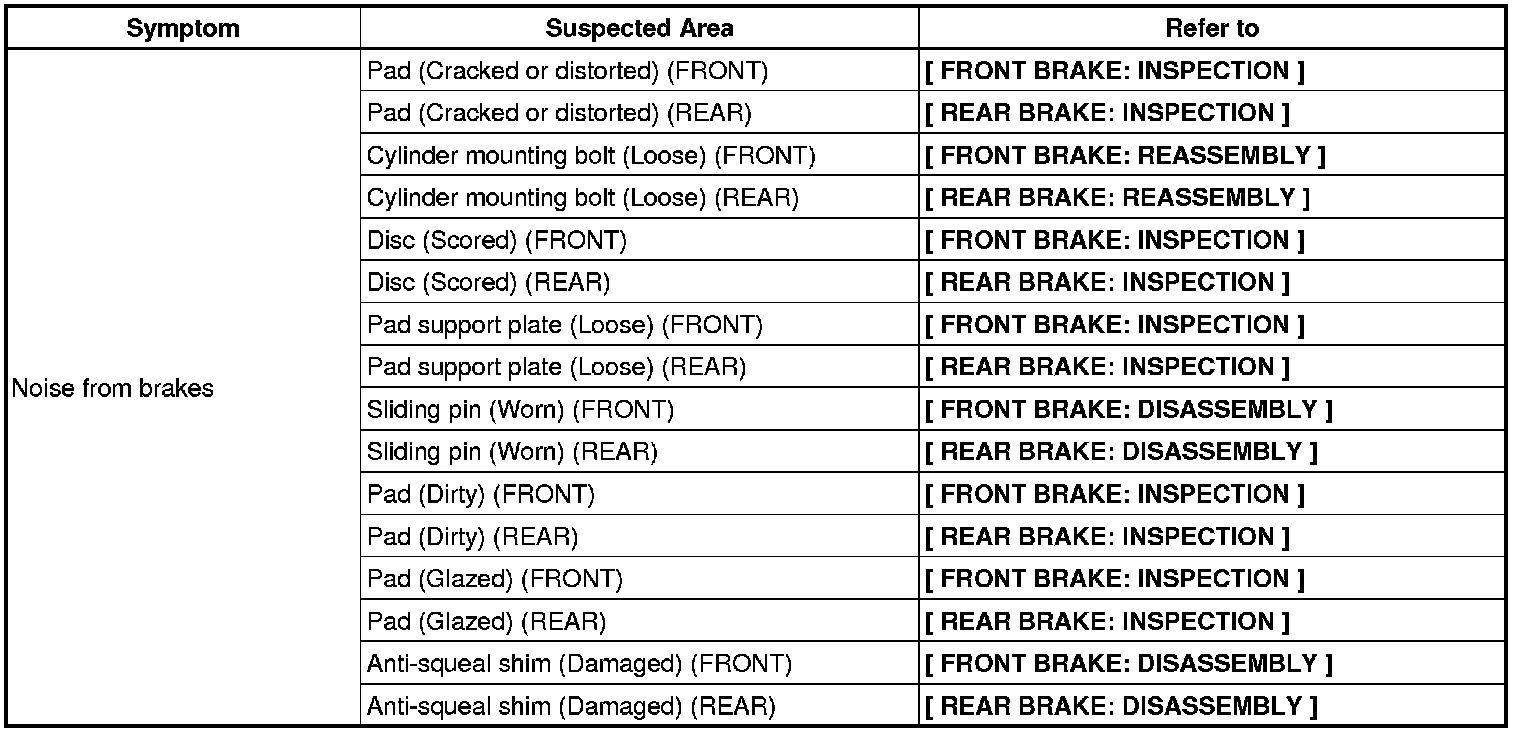

PROBLEM SYMPTOMS TABLE
HINT: Use the table below to help determine the cause of the problem. The likely causes of the problem are indicated in descending order. Check each suspected part in order. Repair or replace faulty parts or perform adjustment as necessary.

BRAKE SYSTEM:
