Brake Fluid Level Sensor/Switch: Diagrams

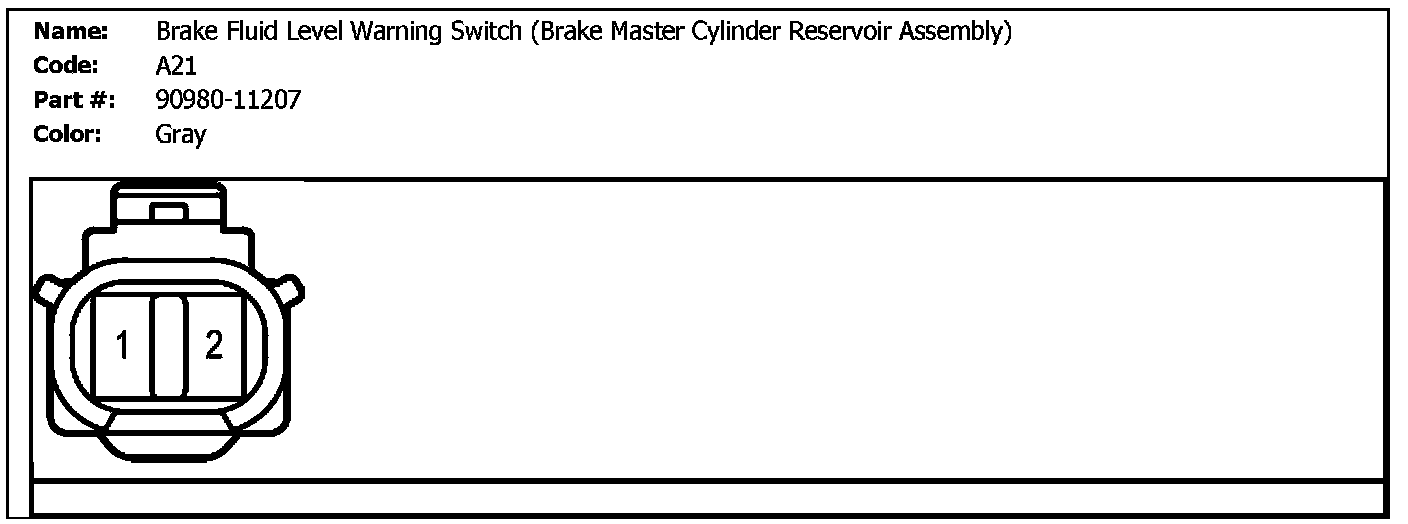

A21 (Brake Fluid Level Warning Switch (Brake Master Cylinder Reservoir Assembly)):
