Installation

BRAKE: REAR BRAKE: INSTALLATION

INSTALLATION

1. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY

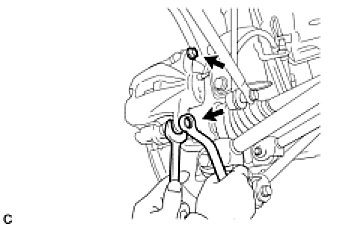

(a) Install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with the 2 bolts.
Torque: 34 Nm (347 kgf-cm, 25 ft-lbf)
2. CONNECT REAR FLEXIBLE HOSE

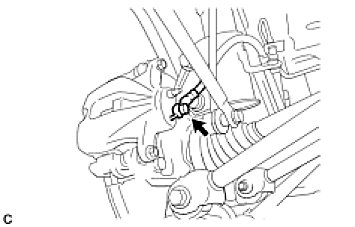

(a) Connect the rear flexible hose to the rear disc brake cylinder assembly with the union bolt and a new gasket.
Torque: 33 Nm (336 kgf-cm, 24 ft-lbf)
3. FILL BRAKE FLUID RESERVOIR Replacement

4. BLEED BRAKE LINE Replacement

5. BLEED BRAKE ACTUATOR Replacement

6. INSPECT FLUID LEVEL On-Vehicle Inspection

7. INSPECT FOR BRAKE FLUID LEAK
8. ADJUST PARKING BRAKE SHOE CLEARANCE AND PARKING BRAKE PEDAL TRAVEL Adjustments

9. INSTALL REAR WHEEL
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
