Door Lock - Smart Key System
Door Lock - Smart Key System

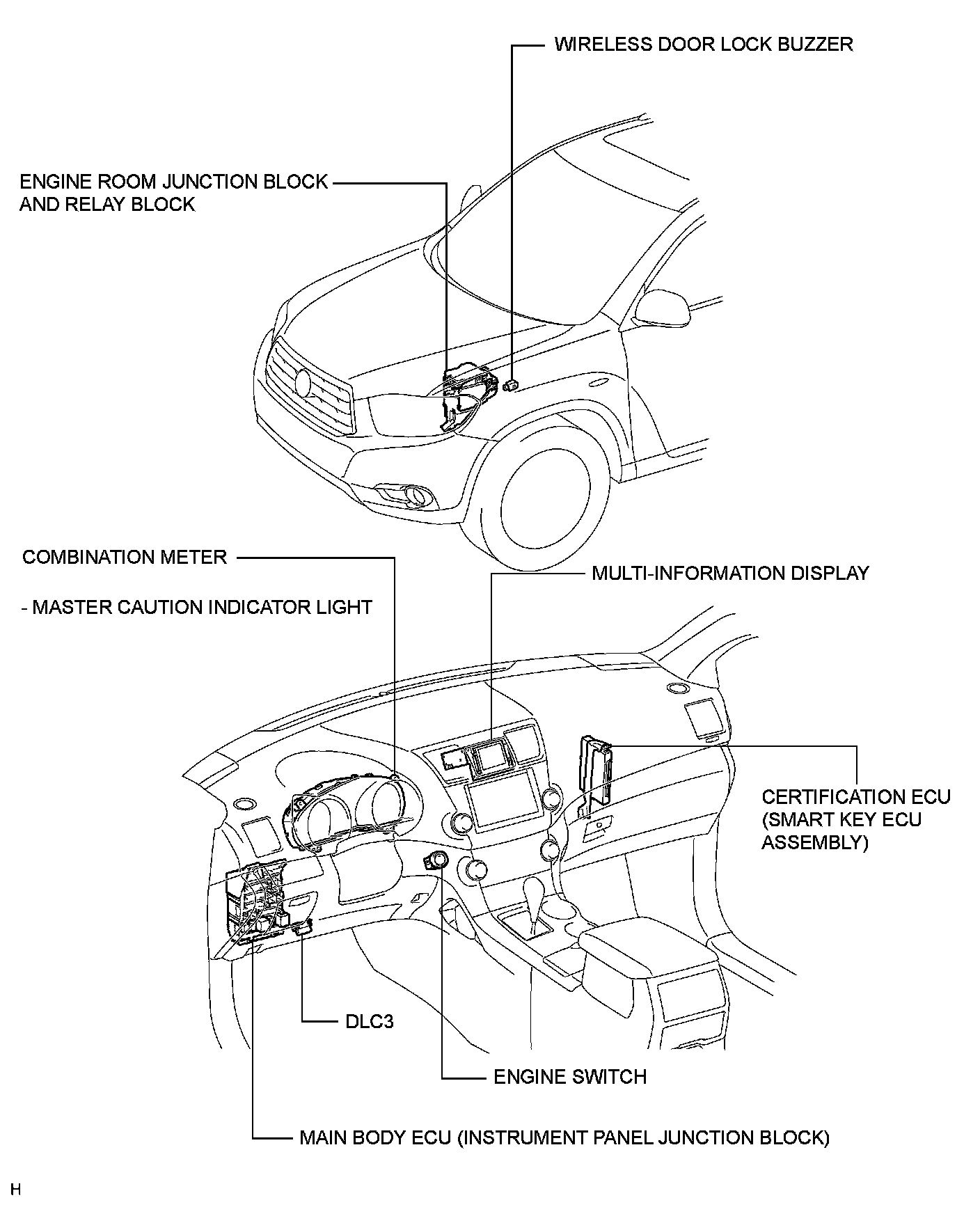

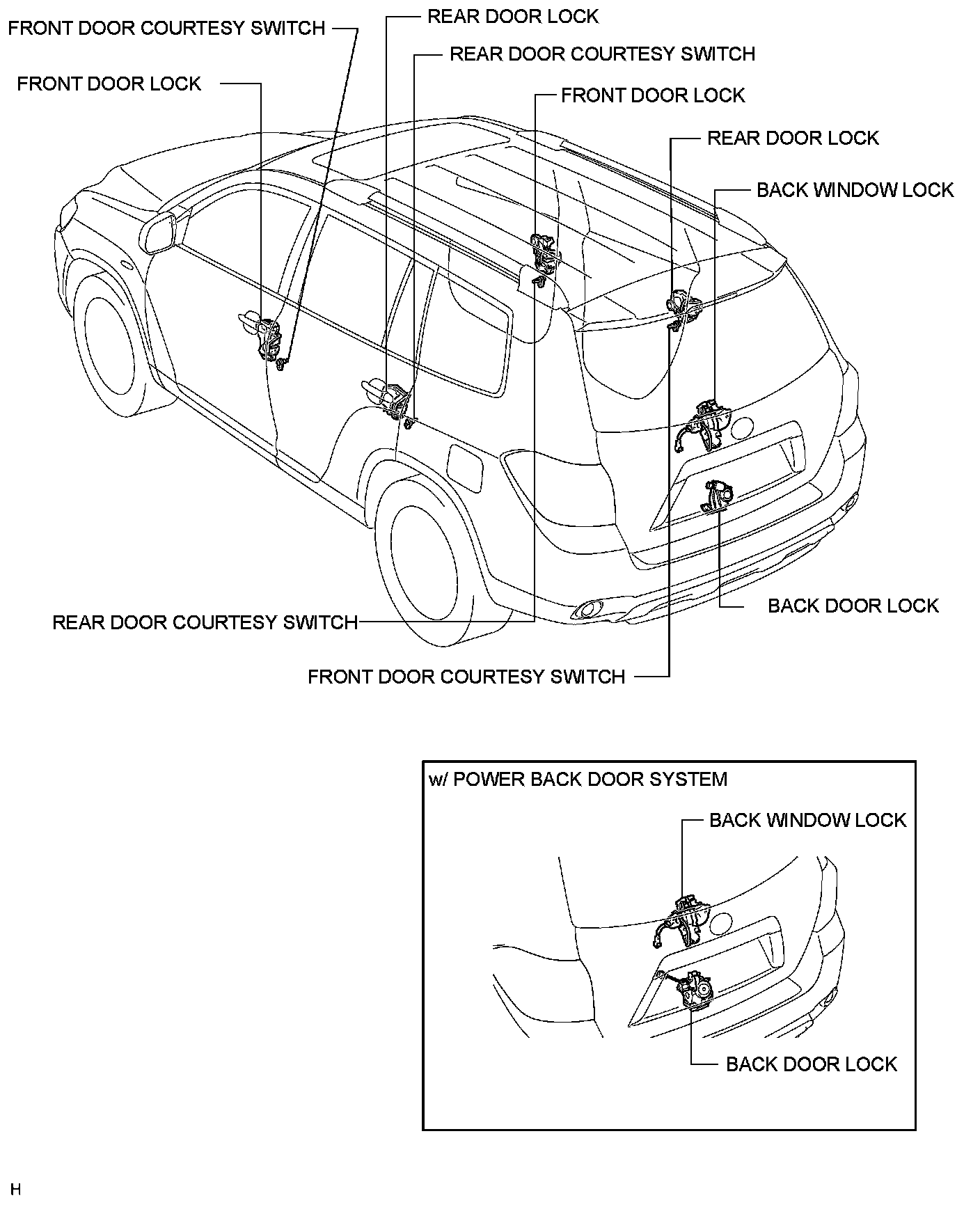

DOOR LOCK: SMART KEY SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
