Toyota Truck
>>
2008
>>
Highlander 2WD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Antenna - Keyless Entry
>>
Service and Repair
>>
Electrical Key Oscillator (for Rear Side)
>>
Components
Components

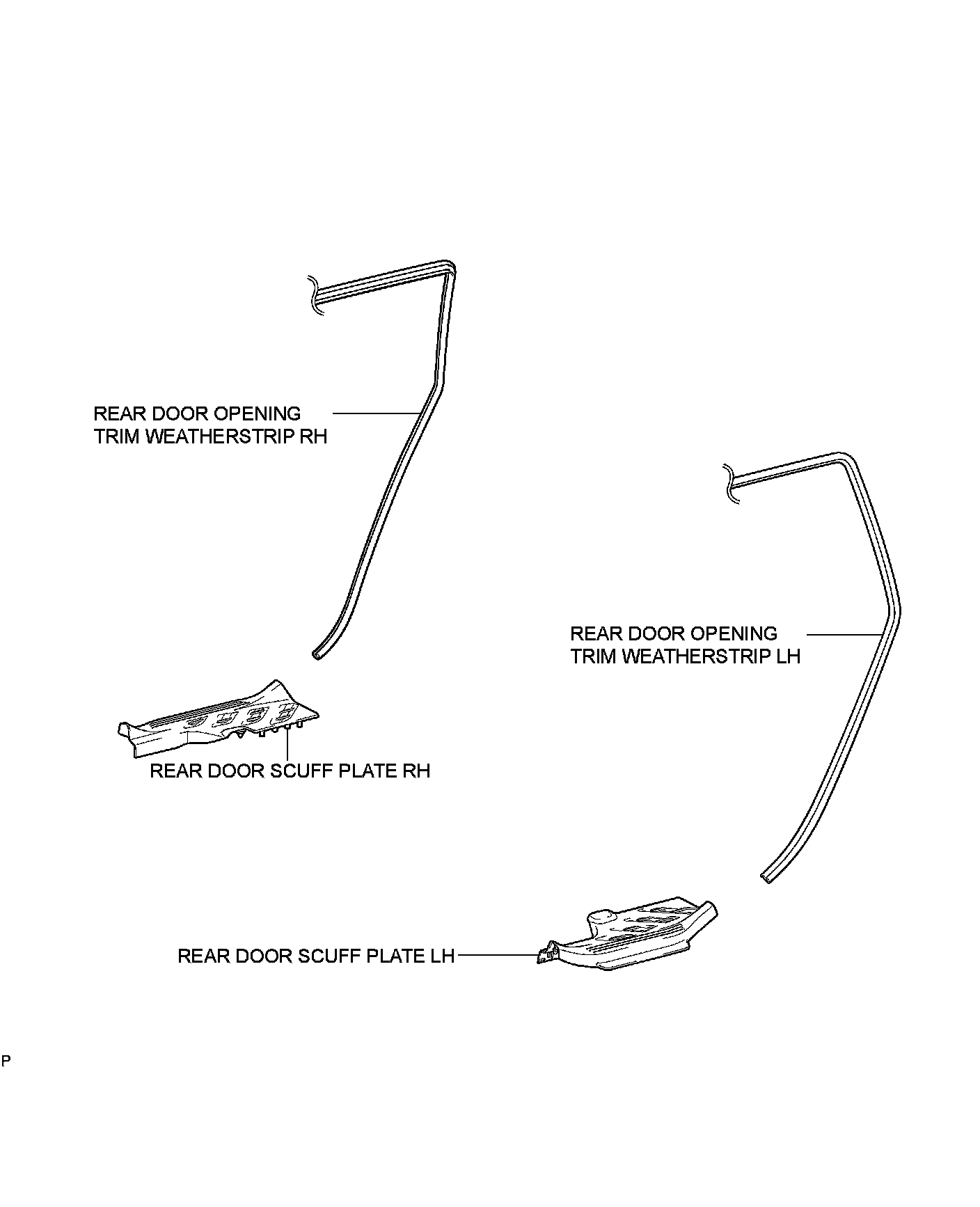

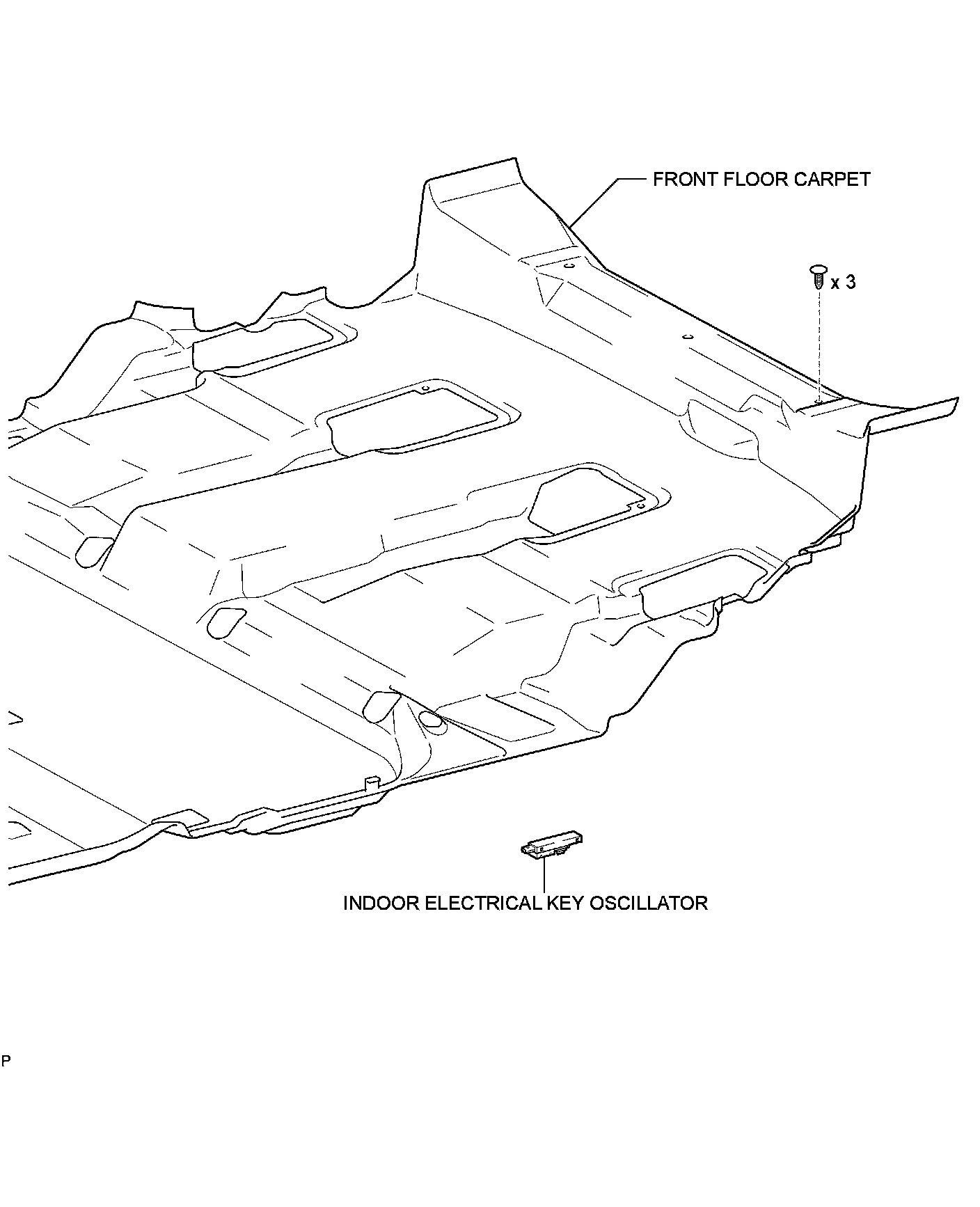

DOOR LOCK: ELECTRICAL KEY OSCILLATOR (for Rear Side): COMPONENTS
COMPONENTS
ILLUSTRATION
