SUSPENSION: FRONT SUSPENSION MEMBER: REMOVAL

REMOVAL

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
HINT: Remove engine assembly with transaxle.

2. REMOVE NO. 1 FRONT STABILIZER BRACKET LH Removal

3. REMOVE NO. 1 FRONT STABILIZER BRACKET RH
HINT: Perform the same procedure as the LH side.

4. REMOVE FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY
5. REMOVE POWER STEERING LINK ASSEMBLY Removal

6. INSTALL ENGINE HANGERS

7. REMOVE FRONT FRAME ASSEMBLY

8. REMOVE TRANSVERSE ENGINE MOUNTING INSULATOR

9. REMOVE FRONT LOWER SUSPENSION ARM LH Removal

10. REMOVE FRONT LOWER SUSPENSION ARM RH
HINT: Perform the same procedure as the LH side.

11. REMOVE FRONT SUSPENSION MEMBER DYNAMIC DAMPER






(a) Remove the 2 bolts and front suspension member dynamic damper.
12. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER
13. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER
14. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION

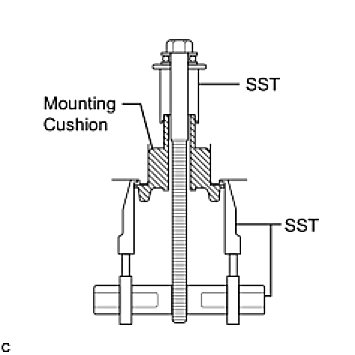

(a) Install SST as shown in the illustration.
SST: 09830-10010
09830-01010
09830-01040
09830-01050
SST: 09950-40011
09951-04020
09952-04010
09955-04011

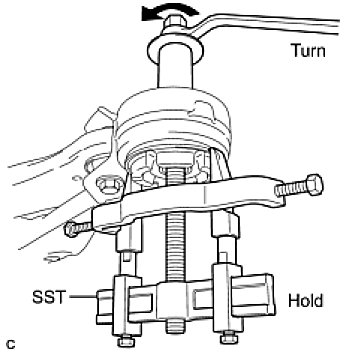

(b) Using SST, remove the front suspension member body mounting front cushion.
NOTICE:
- Make sure that the claws of SST are securely hung onto the mounting cushion.
- Tighten SST slowly and evenly.
- Be careful as the mounting cushion may fly out.
- The mounting cushion cannot be reused.

15. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION LH

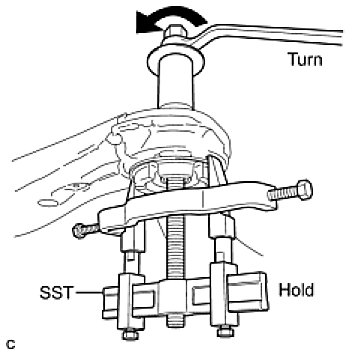

(a) Using SST, remove the front suspension member body mounting rear cushion LH.
SST: 09830-10010
09830-01010
09830-01040
09830-01050
SST: 09950-40011
09951-04020
09952-04010
09954-04010
09955-04011
NOTICE:
- Make sure that the claws of SST are securely hung onto the mounting cushion.
- Tighten SST slowly and evenly.
- Be careful as the mounting cushion may fly out.
- The mounting cushion cannot be reused.

16. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION RH
HINT: Perform the same procedure as the LH side.

SST: 09830-10010
09830-01010
09830-01040
09830-01050
SST: 09950-40011
09951-04020
09952-04010
09954-04010
09955-04011
