Installation

WIPER AND WASHER: WIPER SWITCH: INSTALLATION

INSTALLATION

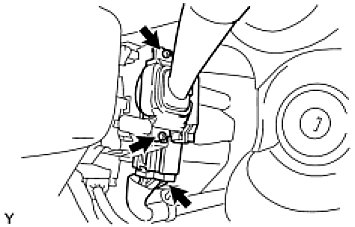

1. INSTALL WINDSHIELD WIPER SWITCH






(a) Install the wiper switch with the 2 screws.
(b) Connect the connector.
2. INSTALL UPPER STEERING COLUMN COVER Installation

3. INSTALL LOWER STEERING COLUMN COVER Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
