WIPER AND WASHER: WASHER MOTOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

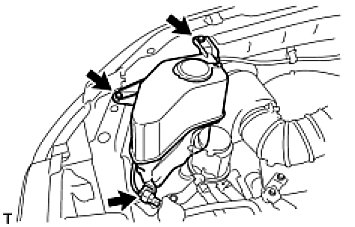

2. REMOVE WINDSHIELD WASHER JAR ASSEMBLY






(a) Disconnect the connector.
(b) Remove the 2 bolts and the windshield washer jar assembly.
3. DRAIN WASHER FLUID






(a) w/o Rear wiper
(1) Disconnect the washer hose from the windshield washer motor and pump, and drain the washer fluid.
(b) w/ Rear wiper
(1) Disconnect the 2 washer hoses from the windshield washer motor and pump, and drain the washer fluid.

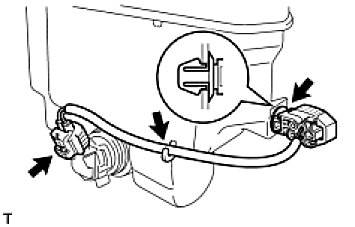

4. DISCONNECT WASHER WIRING






(a) Disconnect the connector and the harness clamps.

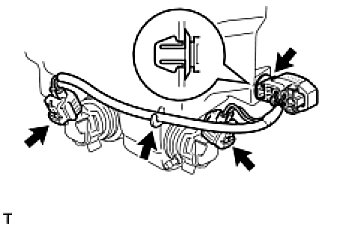

5. DISCONNECT WASHER WIRING (w/ Rear Wiper)






(a) Disconnect the 2 connectors and the harness clamps.

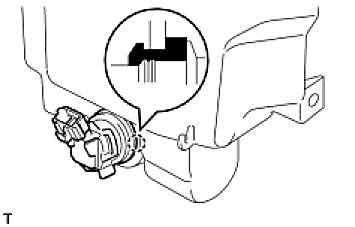

6. REMOVE FRONT WASHER MOTOR AND PUMP ASSEMBLY






(a) Pull the washer motor and pump out of the packing of the washer jar.

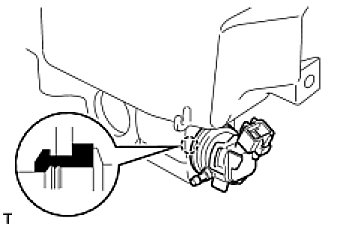

7. REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY (w/ Rear Wiper)






(a) Pull the washer motor and pump out of the packing of the washer jar.
