WINDSHIELD / WINDOWGLASS: QUARTER WINDOW GLASS: REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY RH Removal

3. REMOVE REAR SEATBACK ASSEMBLY RH Removal

4. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH Removal

5. REMOVE REAR SEATBACK ASSEMBLY LH Removal

6. REMOVE REAR FLOOR BOARD Removal

7. REMOVE REAR FLOOR MAT SUPPORT PLATE Removal

8. REMOVE REAR FLOOR MAT ASSEMBLY Removal

9. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY Removal

10. REMOVE FRONT DOOR SCUFF PLATE RH Removal

11. REMOVE FRONT DOOR SCUFF PLATE LH Removal

12. REMOVE REAR DOOR SCUFF PLATE RH Removal

13. REMOVE REAR DOOR SCUFF PLATE LH Removal

14. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal

15. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal

16. REMOVE DECK SIDE GARNISH (w/ Woofer) Removal

17. REMOVE SPEAKER MOUNTING COVER (w/ Woofer) Removal

18. REMOVE AMPLIFIER BOX SPEAKER ASSEMBLY (w/ Woofer) Removal

19. REMOVE PACKAGE HOLDER NET HOOK Removal

20. REMOVE QUARTER TRIM POCKET TRAY (w/o Woofer) Removal

21. REMOVE SIDE TRIM COVER (w/o Woofer) Removal

22. REMOVE QUARTER TRIM POCKET (w/o Woofer) Removal

23. REMOVE LAP BELT OUTER ANCHOR COVER Removal

24. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH Removal

25. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH Removal

26. REMOVE REAR DECK TRIM COVER (w/ Power Outlet Socket) Removal

27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH Removal

28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH Removal

29. REMOVE ROOF SIDE INNER GARNISH RH Removal

30. REMOVE ROOF SIDE INNER GARNISH LH Removal







31. REMOVE QUARTER WINDOW GLASS

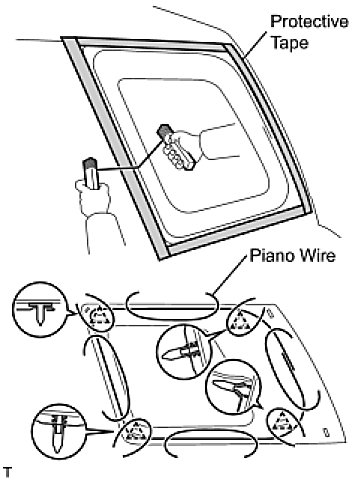

(a) Apply protective tape to the outer circumference of the quarter window, as shown in the illustration.
(b) From the interior, insert piano wires between the vehicle body and quarter window, as shown in the illustration.
(c) Tie objects that can serve as handles (for example, wooden blocks) to all wire ends.
NOTE: When separating the quarter window from the vehicle, do not damage the vehicle's paintwork or exterior/interior ornaments.

(d) Cut through the adhesive by pulling the piano wire around the quarter window.
