WINDSHIELD / WINDOWGLASS: BACK DOOR GLASS: INSTALLATION

INSTALLATION

1. INSTALL BACK DOOR OUTSIDE HANDLE
(a) Install the bush.

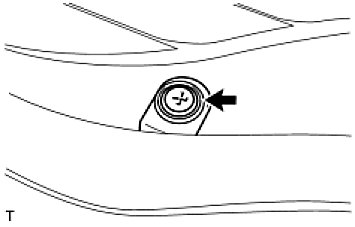

(b) Install the back door outside handle with the screw.






2. INSTALL BACK WINDOW LOCK STRIKER ASSEMBLY

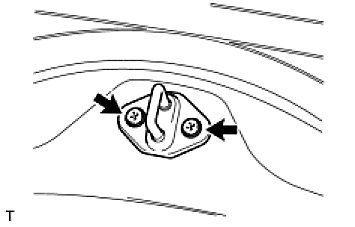

(a) Install the back window lock striker and retainer with the 2 screws.






3. INSTALL BACK WINDOW STAY UPPER BRACKET RH

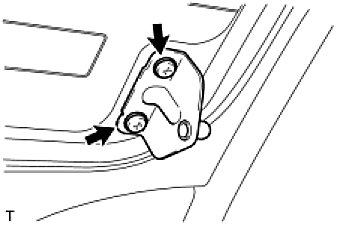

(a) Install the back window stay upper bracket and retainer with the 2 screws.
4. INSTALL BACK WINDOW STAY UPPER BRACKET LH
HINT: Use the same procedure as described for the RH side.





5. INSTALL BACK DOOR GLASS
(a) Install the back door glass with the 2 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Connect the 2 connectors.
6. INSTALL BACK WINDOW SUPPORT LH Installation

7. INSTALL BACK WINDOW SUPPORT RH
HINT: Use the same procedure as for the LH side.

8. INSTALL REAR SPOILER Installation

9. INSTALL NO. 1 REAR SPOILER COVER Installation

10. INSTALL SPARE DISC WHEEL
Torque: 88 Nm (897 kgf-cm, 65 ft-lbf)
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
