Heated Glass Element Switch: Testing and Inspection

WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER SWITCH:

INSPECTION

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY
(a) Check the operation of the window defogger switch indicator.

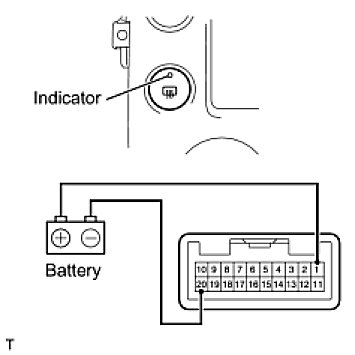

(1) Connect the positive (+) battery lead to terminal 1 and negative (-) battery lead to terminal 20, then check the indicator operation.

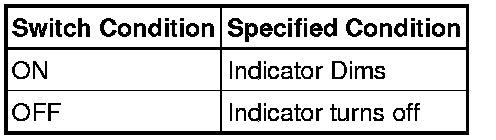

Standard:






If the result is not as specified, replace the integration control and panel.

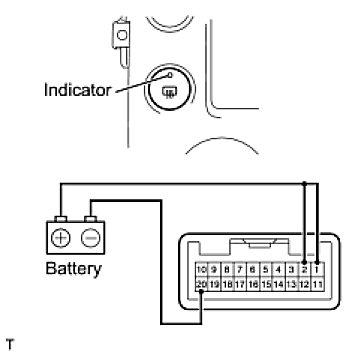

(2) Under the above condition, connect the positive (+) battery lead to terminal 2, then check the indicator operation.

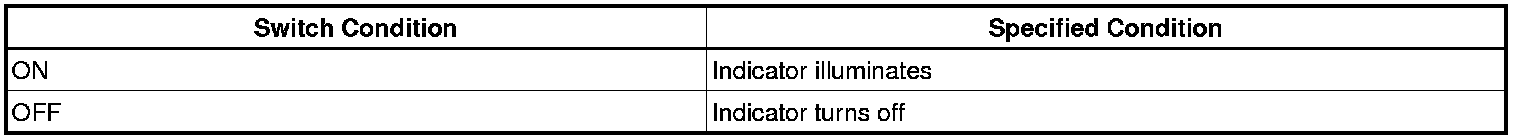

Standard:






If the result is not as specified, replace the integration control and panel.
