VF4B Transfer Case

VF4B TRANSFER: TRANSFER INDICATOR SWITCH:

INSPECTION





1. INSPECT TRANSFER INDICATOR SWITCH (for Center Differential Lock Position)
(a) Measure the resistance of the switch.

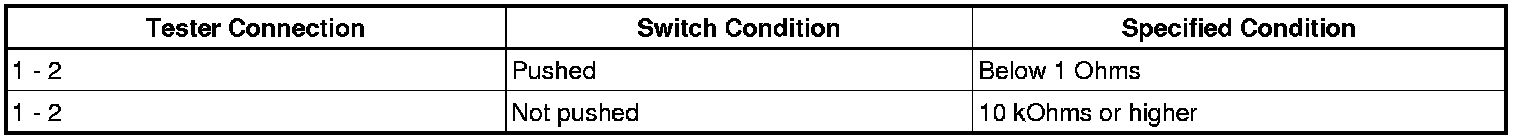

Standard resistance:





If the result is not as specified, replace the switch.






2. INSPECT TRANSFER INDICATOR SWITCH (for LL Position)
(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the switch.
