VF2A Transfer Case

VF2A TRANSFER: TRANSFER INDICATOR SWITCH:

ON-VEHICLE INSPECTION

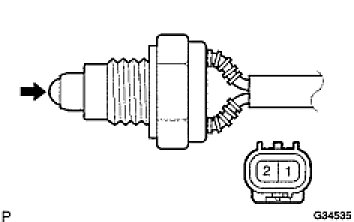

1. INSPECT TRANSFER INDICATOR SWITCH (for 4WD Position)
(a) Measure the resistance of the switch.

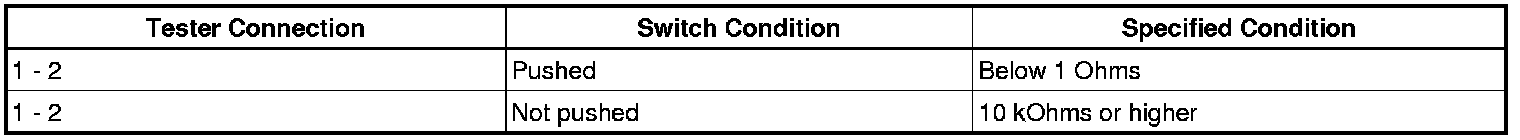

Standard resistance:





If the result is not as specified, replace the switch.






2. INSPECT TRANSFER INDICATOR SWITCH (for 4L Position)
(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the switch.






3. INSPECT TRANSFER INDICATOR SWITCH (for Neutral Position)
(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the switch.
