A750F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

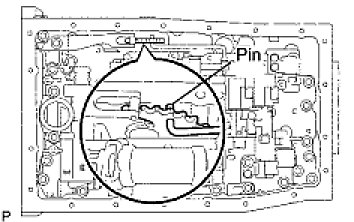

(a) Insert the pin of the lever into the hole of the manual valve.
(b) Install 3 new drum seal gaskets onto the transmission case.

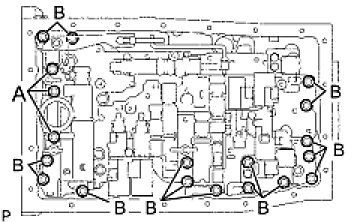

(c) Install the 19 bolts.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
HINT: Bolt length:
36 mm (1.42 in.) for bolt A
25 mm (0.98 in.) for bolt B





2. CONNECT TRANSMISSION WIRE
(a) Connect the 7 connectors to the solenoid valves.
(b) Install the 2 clamps with the 2 bolts.
Torque: 10 Nm (100 kgf-cm, 7 ft-lbf) for bolt A
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf) for bolt B
Bolt length:
12 mm (0.47 in.) for bolt A
36 mm (1.42 in.) for bolt B
(c) Connect the ATF temperature sensor.






3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY

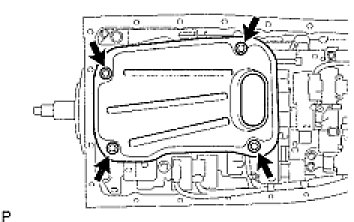

(a) Install a new O-ring and the oil strainer with the 4 bolts.
Torque: 10 Nm (100 kgf-cm, 7 ft-lbf)






4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
HINT: Remove the gasket and be careful not to spill oil on the contacting surfaces of the transmission case and oil pan.

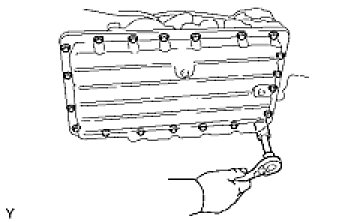

(a) Install a new gasket and the oil pan with the 20 bolts.
Torque: 4.4 Nm (45 kgf-cm, 39 in-lbf)
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
6. PERFORM INITIALIZATION Programming and Relearning
7. ADJUST AUTOMATIC TRANSMISSION FLUID Procedures
